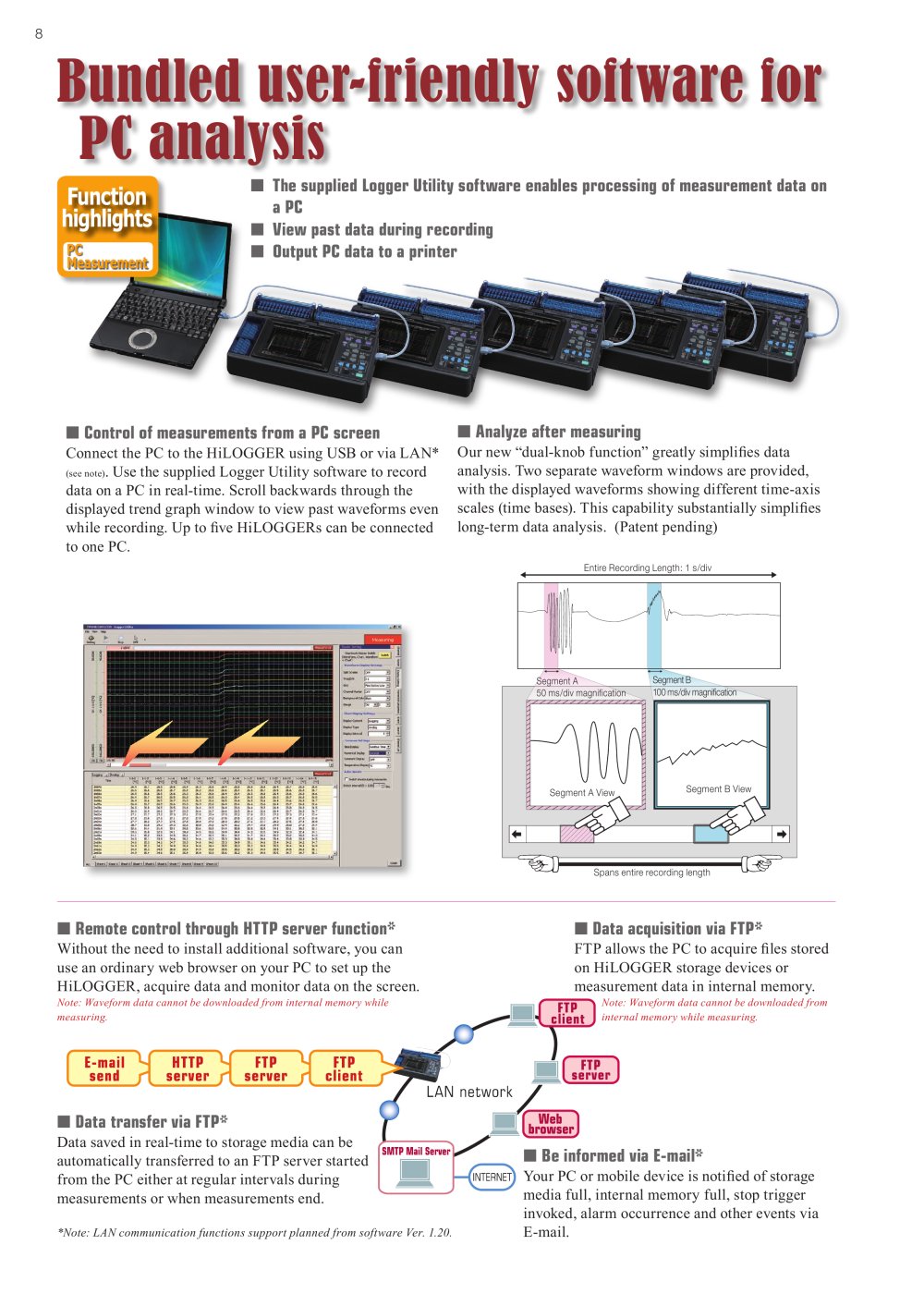

8 Bundled user-friendly software for PC analysis ■ Control of measurements from a PC screen Connect the PC to the HiLOGGER using USB or via LAN* (see note). Use the supplied Logger Utility software to record data on a PC in real-time. Scroll backwards through the displayed trend graph window to view past waveforms even while recording. Up to five HiLOGGERs can be connected to one PC. ■ Analyze after measuring Our new "dual-knob function" greatly simplifies data analysis. Two separate waveform windows are provided, with the displayed waveforms showing different time-axis scales (time bases). This capability substantially simplifies long-term data analysis. (Patent pending) _Entire Recording Length: 1 s/div_ Spans entire recording length ■ Remote control through HTTP server function* Without the need to install additional software, you can use an ordinary web browser on your PC to set up the HiLOGGER, acquire data and monitor data on the screen. Note: Waveform data cannot be downïoaded from internai memory while measuring. ■ Data acquisition via FTP* FTP allows the PC to acquire files stored on HiLOGGER storage devices or measurement data in internal memory. pjp "| Note: Waveform data cannot be downloaded from M internal memory while measuring. _l semer J network ^ ]3l [browser) _ ■ Be informed via E-mail* INTERNET Your PC or mobile device is notified of storage media full, internal memory full, stop trigger invoked, alarm occurrence and other events via E-mail. E-mail send HTTP M FTP V semer f\ semer / ■ Data transfer via FTP* Data saved in real-time to storage media can be b [SMTP Mail automatically transferred to an FTP server started from the PC either at regular intervals during measurements or when measurements end. *Note: LAN communication functions support planned from software Ver. 1.20.
