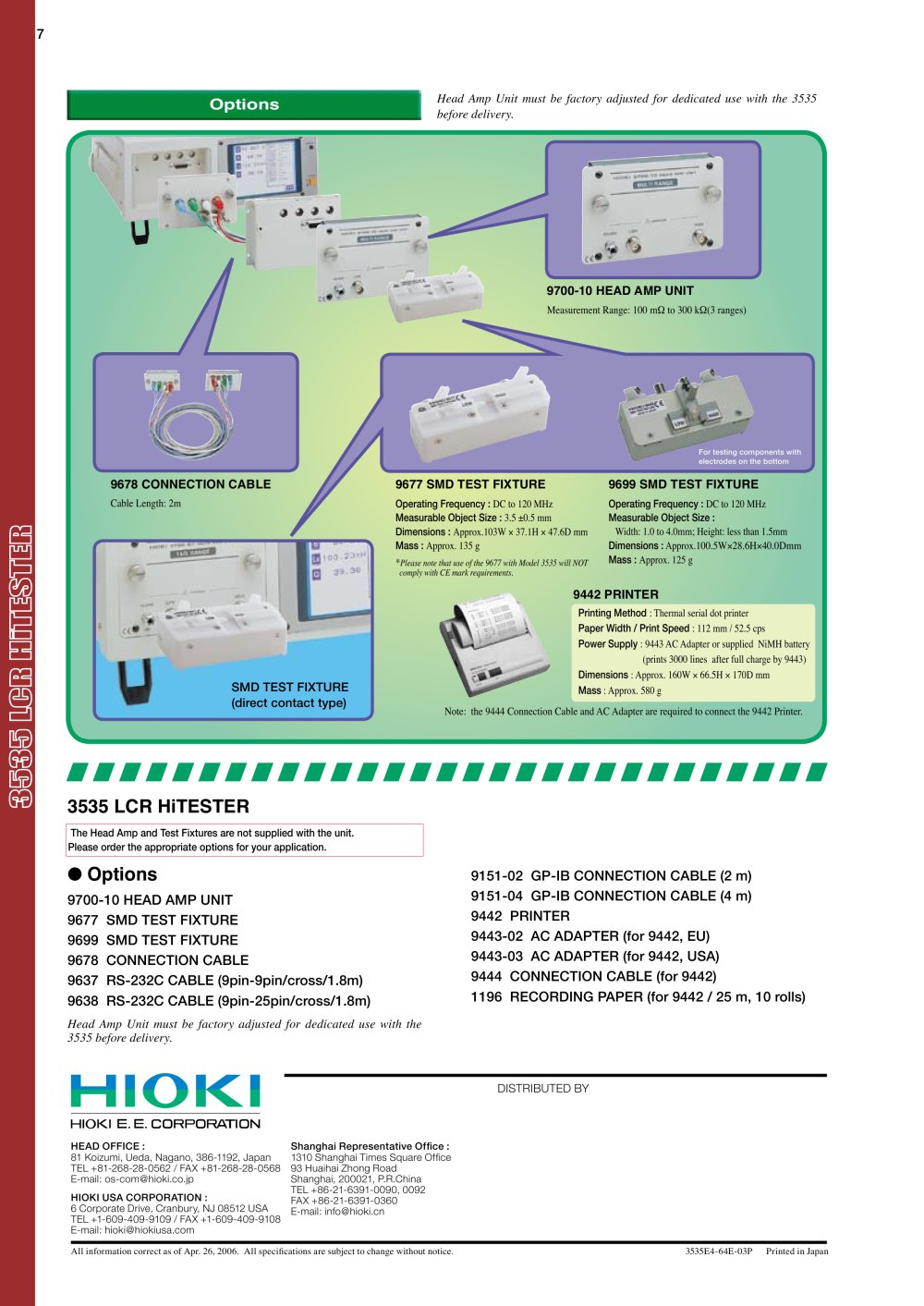

7 3535 LCR HiTESTER 9151-02 GP-IB CONNECTION CABLE (2 m) 9151-04 GP-IB CONNECTION CABLE (4 m) 9442 PRINTER 9443-02 AC ADAPTER (for 9442, EU) 9443-03 AC ADAPTER (for 9442, USA) 9444 CONNECTION CABLE (for 9442) 1196 RECORDING PAPER (for 9442 / 25 m, 10 rolls) The Head Amp and Test Fixtures are not supplied with the unit. Please order the appropriate options for your application. �œ Options 9700-10 HEAD AMP UNIT 9677 SMD TEST FIXTURE 9699 SMD TEST FIXTURE 9678 CONNECTION CABLE 9637 RS-232C CABLE (9pin-9pin/cross/1.8m) 9638 RS-232C CABLE (9pin-25pin/cross/1.8m) Options Head Amp Unit must be factory adjusted for dedicated use with the 3535 before delivery. Head Amp Un it must be factory adjusted for dedicated use with the 3535 before delivery. 9700-10 HEAD AMP UNIT Measurement Range: 100 mÙ to 300 kÙ(3 ranges) For testing components with electrodes on the bottom 9677 SMD TEST FIXTURE Operating Frequency : DC to 120 MHz Measurable Object Size : 3.5 ±0.5 mm Dimensions : Approx.103W × 37.1H × 47.6D mm Mass : Approx. 135 g *Please note that use of the 9677 with Model 3535 will NOT comply with CE mark requirements. 9699 SMD TEST FIXTURE Operating Frequency : DC to 120 MHz Measurable Object Size : Width: 1.0 to 4.0mm; Height: less than 1.5mm Dimensions : Approx.100.5W×28.6H×40.0Dmm Mass : Approx. 125 g Note: the 9444 Connection Cable and AC Adapter are required to connect the 9442 Printer. Printing Method : Thermal serial dot printer Paper Width / Print Speed : 112 mm / 52.5 cps Power Supply : 9443 AC Adapter or supplied NiMH battery (prints 3000 lines after full charge by 9443) Dimensions : Approx. 160W × 66.5H × 170D mm Mass : Approx. 580 g SMD TEST FIXTURE (direct contact type) 9678 CONNECTION CABLE Cable Length: 2m 9442 PRINTER H EAD OFFICE : 81 Ko izu mi, U eda, Naga no, 386 -1192, Jap an TEL +81-268-28-056 2 / FA X +81-268-28-0568 E-m ail: os -c om@ hioki.co.jp H I O KI USA CORPORATION : 6 Co rporate Drive, Cranbury, NJ 08512 USA TEL +1-609 -40 9-910 9 / FA X +1-609-4 09-9108 E-m ail: hi oki@h iokiusa.com DISTRIBUTED BY All infor mation corr ect as of Apr. 26, 200 6. A l l specifica tions are subject to change withou t not ice. 3535 E 4-64E-03P Pr inted in Japan Sha nghai Repr ese nta ti ve O ffice : 1310 Shanghai Times Squar e Of fice 93 Huaihai Zhong Road Shanghai, 20 0021, P.R.Chi na TEL + 86-21-6391-0 090, 0092 FAX +86 -21-6391-0360 E-mail : info@ hi oki.cn
