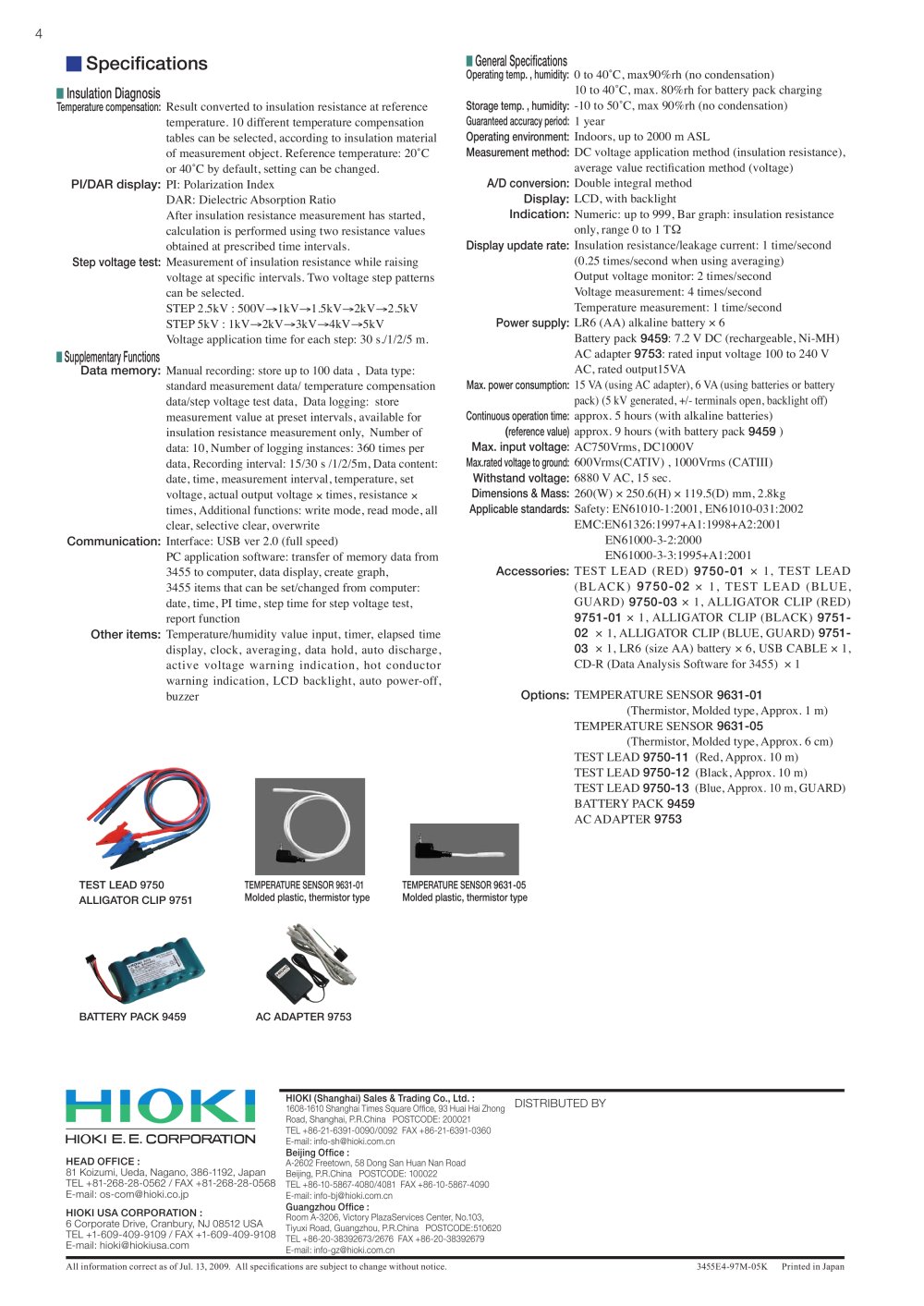

n Insulation Diagnosis
Temperature compensation:
PI/DAR display:
Step voltage test:
n Supplementary Functions
Data memory:
Communication:
Other items:
Result converted to insulation resistance at reference
temperature. 10 different temperature compensation
tables can be selected, according to insulation material
of measurement object. Reference temperature: 20¢ªC
or 40¢ªC by default, setting can be changed.
PI: Polarization Index
DAR: Dielectric Absorption Ratio
After insulation resistance measurement has started,
calculation is performed using two resistance values
obtained at prescribed time intervals.
Measurement of insulation resistance while raising
voltage at specific intervals. Two voltage step patterns
can be selected.
STEP 2.5kV : 500V¨1kV¨1.5kV¨2kV¨2.5kV
STEP 5kV : 1kV¨2kV¨3kV¨4kV¨5kV
Voltage application time for each step: 30 s./1/2/5 m.
Manual recording: store up to 100 data , Data type:
standard measurement data/ temperature compensation
data/step voltage test data, Data logging: store
measurement value at preset intervals, available for
insulation resistance measurement only, Number of
data: 10, Number of logging instances: 360 times per
data, Recording interval: 15/30 s /1/2/5m, Data content:
date, time, measurement interval, temperature, set
voltage, actual output voltage × times, resistance ×
times, Additional functions: write mode, read mode, all
clear, selective clear, overwrite
Interface: USB ver 2.0 (full speed)
PC application software: transfer of memory data from
3455 to computer, data display, create graph,
3455 items that can be set/changed from computer:
date, time, PI time, step time for step voltage test,
report function
Temperature/humidity value input, timer, elapsed time
display, clock, averaging, data hold, auto discharge,
active voltage warning indication, hot conductor
warning indication, LCD backlight, auto power-off,
buzzer
n General Specifications
Operating temp. , humidity:
Storage temp. , humidity:
Guaranteed accuracy period:
Operating environment:
Measurement method:
A/D conversion:
Display:
Indication:
Display update rate:
Power supply:
Max. power consumption:
Continuous operation time:
(reference value)
Max. input voltage:
Max.rated voltage to ground:
Withstand voltage:
Dimensions & Mass:
Applicable standards:
Accessories:
Options:
0 to 40¢ªC, max90%rh (no condensation)
10 to 40¢ªC, max. 80%rh for battery pack charging
-10 to 50¢ªC, max 90%rh (no condensation)
1 year
Indoors, up to 2000 m ASL
DC voltage application method (insulation resistance),
average value rectification method (voltage)
Double integral method
LCD, with backlight
Numeric: up to 999, Bar graph: insulation resistance
only, range 0 to 1 TÙ
Insulation resistance/leakage current: 1 time/second
(0.25 times/second when using averaging)
Output voltage monitor: 2 times/second
Voltage measurement: 4 times/second
Temperature measurement: 1 time/second
LR6 (AA) alkaline battery × 6
Battery pack 9459: 7.2 V DC (rechargeable, Ni-MH)
AC adapter 9753: rated input voltage 100 to 240 V
AC, rated output15VA
15 VA (using AC adapter), 6 VA (using batteries or battery
pack) (5 kV generated, +/- terminals open, backlight off)
approx. 5 hours (with alkaline batteries)
approx. 9 hours (with battery pack 9459 )
AC750Vrms, DC1000V
600Vrms(CATIV) , 1000Vrms (CATIII)
6880 V AC, 15 sec.
260(W) × 250.6(H) × 119.5(D) mm, 2.8kg
Safety: EN61010-1:2001, EN61010-031:2002
EMC:EN61326:1997+A1:1998+A2:2001
EN61000-3-2:2000
EN61000-3-3:1995+A1:2001
TEST LEAD (RED) 9750-01 × 1, TEST LEAD
(BLACK) 9750-02 × 1, TEST LEAD (BLUE,
GUARD) 9750-03 × 1, ALLIGATOR CLIP (RED)
9751-01 × 1, ALLIGATOR CLIP (BLACK) 9751-
02 × 1, ALLIGATOR CLIP (BLUE, GUARD) 9751-
03 × 1, LR6 (size AA) battery × 6, USB CABLE × 1,
CD-R (Data Analysis Software for 3455) × 1
TEMPERATURE SENSOR 9631-01
(Thermistor, Molded type, Approx. 1 m)
TEMPERATURE SENSOR 9631-05
(Thermistor, Molded type, Approx. 6 cm)
TEST LEAD 9750-11 (Red, Approx. 10 m)
TEST LEAD 9750-12 (Black, Approx. 10 m)
TEST LEAD 9750-13 (Blue, Approx. 10 m, GUARD)
BATTERY PACK 9459
AC ADAPTER 9753
n Specifications
TEST LEAD 9750
ALLIGATOR CLIP 9751
TEMPERATURE SENSOR 9631-01
Molded plastic, thermistor type
TEMPERATURE SENSOR 9631-05
Molded plastic, thermistor type
BATTERY PACK 9459 AC ADAPTER 9753
