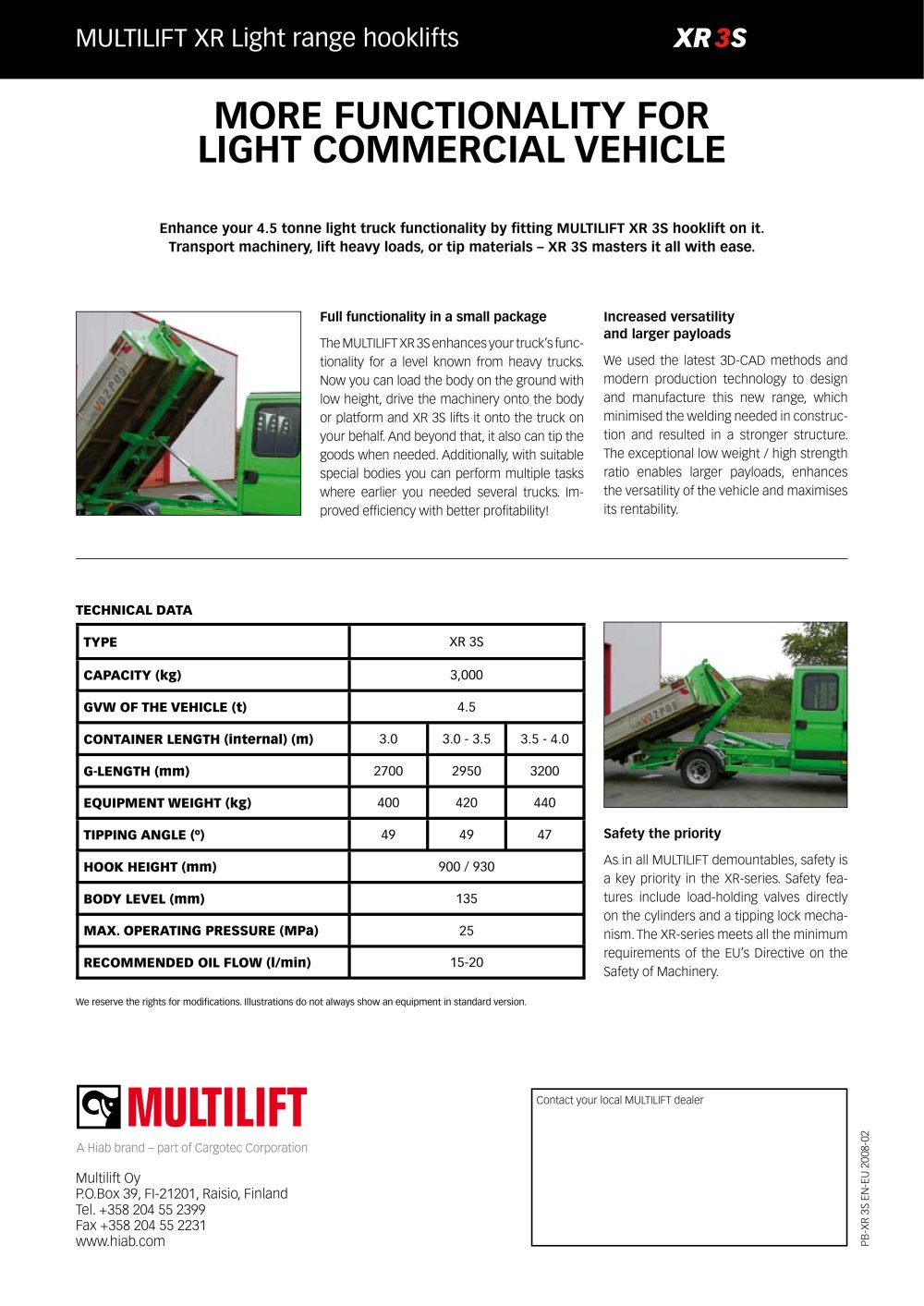

MULTILIFT XR Light range hooklifts

MULTILIFT XR Light range hooklifts - 17585 MORE FUNCTIONALITY FOR LIGHT COMMERCIAL VEHICLE

Enhance your 4.5 tonne light truck functionality by fitting MULTILIFT XR 3S hooklift on it.Transport machinery, lift heavy loads, or tip materials – XR 3S masters it all with ease.

Full functionality in a small package Increased versatilityand larger payloads TECHNICAL DATA The MULTILIFT XR 3S enhances your truck’s func-tionality for a level known from heavy trucks. Now you can load the body on the ground with low height, drive the machinery onto the body or platform and XR 3S lifts it onto the truck on your behalf. And beyond that, it also can tip the goods when needed. Additionally, with suitable special bodies you can perform multiple tasks where earlier you needed several trucks. Im- proved efficiency with better profitability! We used the latest 3D-CAD methods and modern production technology to design and manufacture this new range, which minimised the welding needed in construc- tion and resulted in a stronger structure. The exceptional low weight / high strength ratio enables larger payloads, enhances the versatility of the vehicle and maximises its rentability. TYPE XR 3S CAPACITY (kg) 3,000 GVW OF THE VEHICLE (t) 4.5 CONTAINER LENGTH (internal) (m) 3.03.0 - 3.53.5 - 4.0 G-LENGTH (mm) 270029503200 EQUIPMENT WEIGHT (kg) 400420440 TIPPING ANGLE (º) 494947 Safety the priority HOOK HEIGHT (mm) 900 / 930 As in all MULTILIFT demountables, safety is a key priority in the XR-series. Safety fea- tures include load-holding valves directly on the cylinders and a tipping lock mecha- nism. The XR-series meets all the minimum requirements of the EU’s Directive on the Safety of Machinery. BODY LEVEL (mm) 135 MAX. OPERATING PRESSURE (MPa) 25 RECOMMENDED OIL FLOW (l/min) 15-20
We reserve the rights for modifications. Illustrations do not always show an equipment in standard version. Contact your local MULTILIFT dealer

Multilift OyP.O.Box 39, FI-21201, Raisio, Finland Tel. +358 204 55 2399 Fax +358 204 55 2231 www.hiab.com

PB-XR 3S EN-EU 2008-02
