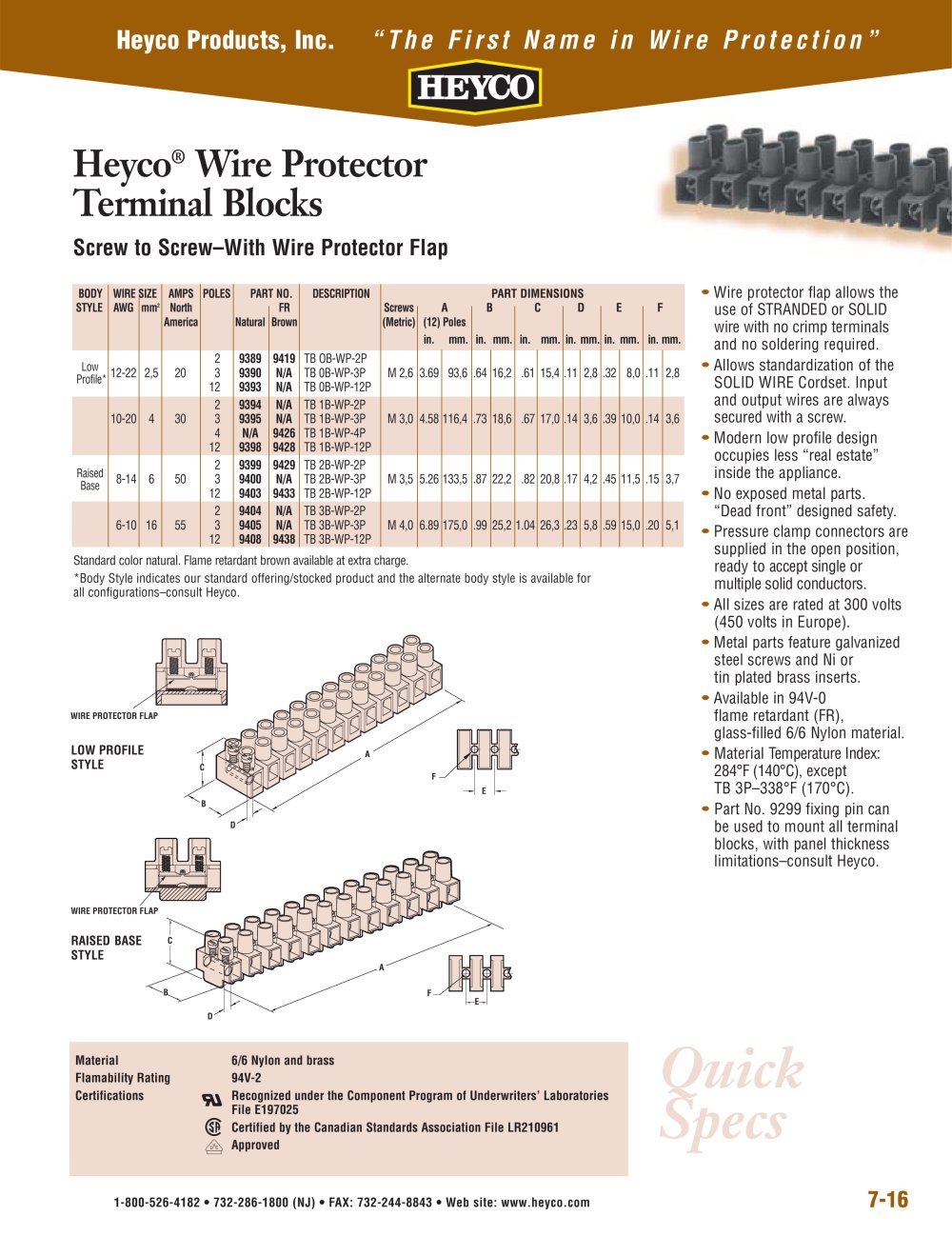

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 7-16 Heyco® Wire Protector Terminal Blocks Screw to Screw–With Wire Protector Flap • Wire protector flap allows the use of STRANDED or SOLID wire with no crimp terminals and no soldering required. • Allows standardization of the SOLID WIRE Cordset. Input and output wires are always secured with a screw. • Modern low profile design occupies less “real estate” inside the appliance. • No exposed metal parts. “Dead front” designed safety. • Pressure clamp connectors are supplied in the open position, ready to accept single or multiple solid conductors. • All sizes are rated at 300 volts (450 volts in Europe). • Metal parts feature galvanized steel screws and Ni or tin plated brass inserts. • Available in 94V-0 flame retardant (FR), glass-filled 6/6 Nylon material. • Material Temperature Index: 284°F (140°C), except TB 3P–338°F (170°C). • Part No. 9299 fixing pin can be used to mount all terminal blocks, with panel thickness limitations–consult Heyco. BODY WIRE SIZE AMPS POLES PART NO. DESCRIPTION PART DIMENSIONS STYLE AWG mm2 North FR Screws A B C D E F America Natural Brown (Metric) (12) Poles in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. Low 2 9389 9419 TB OB-WP-2P Profile* 12-22 2,5 20 3 9390 N/A TB 0B-WP-3P M 2,6 3.69 93,6 .64 16,2 .61 15,4 .11 2,8 .32 8,0 .11 2,8 12 9393 N/A TB 0B-WP-12P 2 9394 N/A TB 1B-WP-2P 10-20 4 30 3 9395 N/A TB 1B-WP-3P M 3,0 4.58 116,4 .73 18,6 .67 17,0 .14 3,6 .39 10,0 .14 3,6 4 N/A 9426 TB 1B-WP-4P 12 9398 9428 TB 1B-WP-12P Raised 2 9399 9429 TB 2B-WP-2P Base 8-14 6 50 3 9400 N/A TB 2B-WP-3P M 3,5 5.26 133,5 .87 22,2 .82 20,8 .17 4,2 .45 11,5 .15 3,7 12 9403 9433 TB 2B-WP-12P 2 9404 N/A TB 3B-WP-2P 6-10 16 55 3 9405 N/A TB 3B-WP-3P M 4,0 6.89 175,0 .99 25,2 1.04 26,3 .23 5,8 .59 15,0 .20 5,1 12 9408 9438 TB 3B-WP-12P Standard color natural. Flame retardant brown available at extra charge. *Body Style indicates our standard offering/stocked product and the alternate body style is available for all configurations–consult Heyco. E F A B D C WIRE PROTECTOR FLAP F E WIRE PROTECTOR FLAP D A B C LOW PROFILE STYLE RAISED BASE STYLE Quick Specs Material 6/6 Nylon and brass Flamability Rating 94V-2 Certifications Recognized under the Component Program of Underwriters’ Laboratories File E197025 Certified by the Canadian Standards Association File LR210961 DVE Approved
