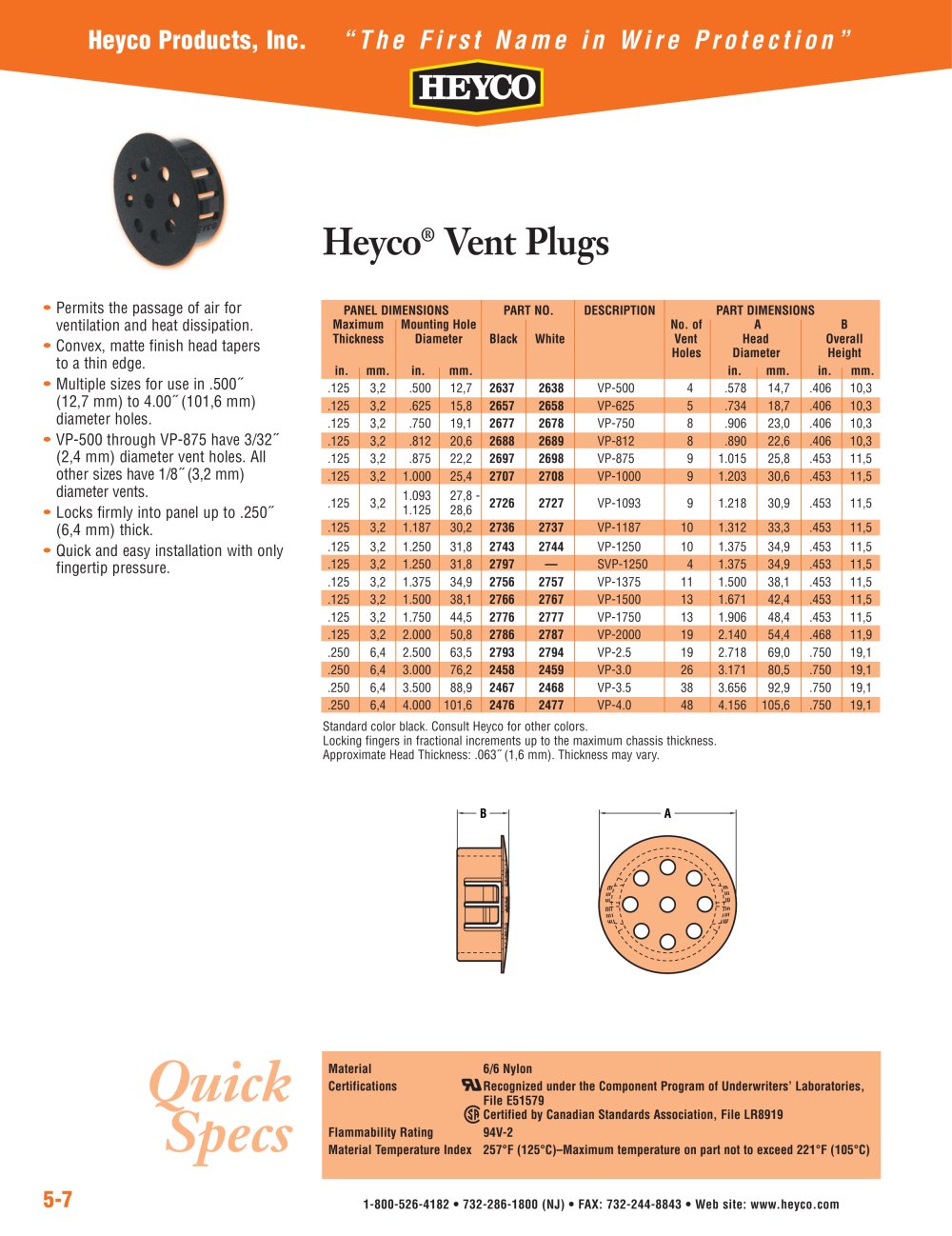

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 5-7 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com Quick Specs Heyco® Vent Plugs • Permits the passage of air for ventilation and heat dissipation. • Convex, matte finish head tapers to a thin edge. • Multiple sizes for use in .500½ (12,7 mm) to 4.00½ (101,6 mm) diameter holes. • VP-500 through VP-875 have 3/32½ (2,4 mm) diameter vent holes. All other sizes have 1/8½ (3,2 mm) diameter vents. • Locks firmly into panel up to .250½ (6,4 mm) thick. • Quick and easy installation with only fingertip pressure. PANEL DIMENSIONS PART NO. DESCRIPTION PART DIMENSIONS Maximum Mounting Hole No. of A B Thickness Diameter Black White Vent Head Overall Holes Diameter Height in. mm. in. mm. in. mm. in. mm. .125 3,2 .500 12,7 2637 2638 VP-500 4 .578 14,7 .406 10,3 .125 3,2 .625 15,8 2657 2658 VP-625 5 .734 18,7 .406 10,3 .125 3,2 .750 19,1 2677 2678 VP-750 8 .906 23,0 .406 10,3 .125 3,2 .812 20,6 2688 2689 VP-812 8 .890 22,6 .406 10,3 .125 3,2 .875 22,2 2697 2698 VP-875 9 1.015 25,8 .453 11,5 .125 3,2 1.000 25,4 2707 2708 VP-1000 9 1.203 30,6 .453 11,5 .125 3,2 1.093 27,8 - 1.125 28,6 2726 2727 VP-1093 9 1.218 30,9 .453 11,5 .125 3,2 1.187 30,2 2736 2737 VP-1187 10 1.312 33,3 .453 11,5 .125 3,2 1.250 31,8 2743 2744 VP-1250 10 1.375 34,9 .453 11,5 .125 3,2 1.250 31,8 2797 — SVP-1250 4 1.375 34,9 .453 11,5 .125 3,2 1.375 34,9 2756 2757 VP-1375 11 1.500 38,1 .453 11,5 .125 3,2 1.500 38,1 2766 2767 VP-1500 13 1.671 42,4 .453 11,5 .125 3,2 1.750 44,5 2776 2777 VP-1750 13 1.906 48,4 .453 11,5 .125 3,2 2.000 50,8 2786 2787 VP-2000 19 2.140 54,4 .468 11,9 .250 6,4 2.500 63,5 2793 2794 VP-2.5 19 2.718 69,0 .750 19,1 .250 6,4 3.000 76,2 2458 2459 VP-3.0 26 3.171 80,5 .750 19,1 .250 6,4 3.500 88,9 2467 2468 VP-3.5 38 3.656 92,9 .750 19,1 .250 6,4 4.000 101,6 2476 2477 VP-4.0 48 4.156 105,6 .750 19,1 Standard color black. Consult Heyco for other colors. Locking fingers in fractional increments up to the maximum chassis thickness. Approximate Head Thickness: .063½ (1,6 mm). Thickness may vary. Material 6/6 Nylon Certifications Recognized under the Component Program of Underwriters’ Laboratories, File E51579 Certified by Canadian Standards Association, File LR8919 Flammability Rating 94V-2 Material Temperature Index 257°F (125°C)–Maximum temperature on part not to exceed 221°F (105°C) B A
