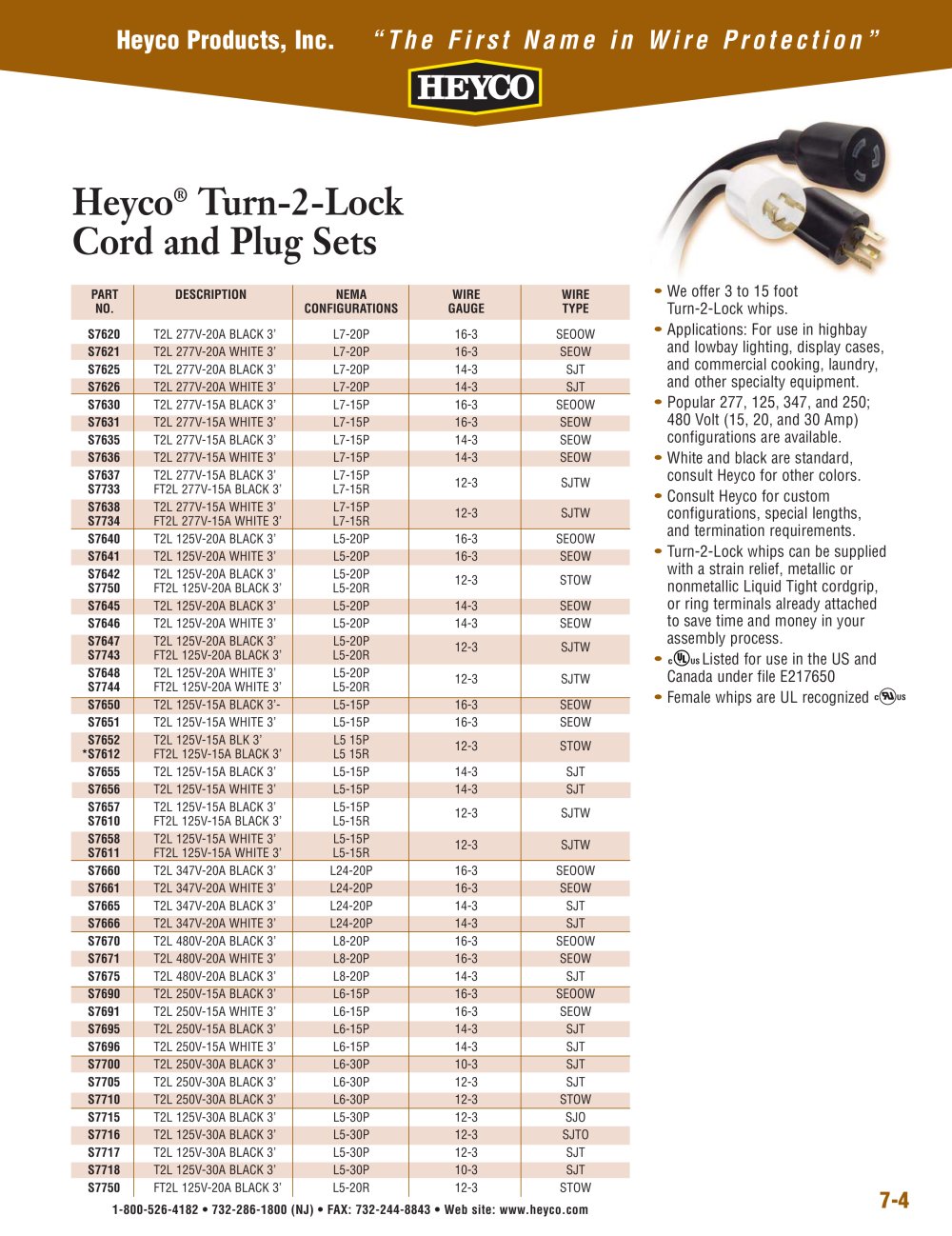

7-4 Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com Heyco® Turn-2-Lock Cord and Plug Sets • We offer 3 to 15 foot Turn-2-Lock whips. • Applications: For use in highbay and lowbay lighting, display cases, and commercial cooking, laundry, and other specialty equipment. • Popular 277, 125, 347, and 250; 480 Volt (15, 20, and 30 Amp) configurations are available. • White and black are standard, consult Heyco for other colors. • Consult Heyco for custom configurations, special lengths, and termination requirements. • Turn-2-Lock whips can be supplied with a strain relief, metallic or nonmetallic Liquid Tight cordgrip, or ring terminals already attached to save time and money in your assembly process. • Listed for use in the US and Canada under file E217650 • Female whips are UL recognized PART DESCRIPTION NEMA WIRE WIRE NO. CONFIGURATIONS GAUGE TYPE S7620 T2L 277V-20A BLACK 3’ L7-20P 16-3 SEOOW S7621 T2L 277V-20A WHITE 3’ L7-20P 16-3 SEOW S7625 T2L 277V-20A BLACK 3’ L7-20P 14-3 SJT S7626 T2L 277V-20A WHITE 3’ L7-20P 14-3 SJT S7630 T2L 277V-15A BLACK 3’ L7-15P 16-3 SEOOW S7631 T2L 277V-15A WHITE 3’ L7-15P 16-3 SEOW S7635 T2L 277V-15A BLACK 3’ L7-15P 14-3 SEOW S7636 T2L 277V-15A WHITE 3’ L7-15P 14-3 SEOW S7637 T2L 277V-15A BLACK 3’ L7-15P S7733 FT2L 277V-15A BLACK 3’ L7-15R 12-3 SJTW S7638 T2L 277V-15A WHITE 3’ L7-15P 12-3 SJTW S7734 FT2L 277V-15A WHITE 3’ L7-15R S7640 T2L 125V-20A BLACK 3’ L5-20P 16-3 SEOOW S7641 T2L 125V-20A WHITE 3’ L5-20P 16-3 SEOW S7642 T2L 125V-20A BLACK 3’ L5-20P 12-3 STOW S7750 FT2L 125V-20A BLACK 3’ L5-20R S7645 T2L 125V-20A BLACK 3’ L5-20P 14-3 SEOW S7646 T2L 125V-20A WHITE 3’ L5-20P 14-3 SEOW S7647 T2L 125V-20A BLACK 3’ L5-20P 12-3 SJTW S7743 FT2L 125V-20A BLACK 3’ L5-20R S7648 T2L 125V-20A WHITE 3’ L5-20P 12-3 SJTW S7744 FT2L 125V-20A WHITE 3’ L5-20R S7650 T2L 125V-15A BLACK 3’- L5-15P 16-3 SEOW S7651 T2L 125V-15A WHITE 3’ L5-15P 16-3 SEOW S7652 T2L 125V-15A BLK 3’ L5 15P 12-3 STOW *S7612 FT2L 125V-15A BLACK 3’ L5 15R S7655 T2L 125V-15A BLACK 3’ L5-15P 14-3 SJT S7656 T2L 125V-15A WHITE 3’ L5-15P 14-3 SJT S7657 T2L 125V-15A BLACK 3’ L5-15P 12-3 SJTW S7610 FT2L 125V-15A BLACK 3’ L5-15R S7658 T2L 125V-15A WHITE 3’ L5-15P 12-3 SJTW S7611 FT2L 125V-15A WHITE 3’ L5-15R S7660 T2L 347V-20A BLACK 3’ L24-20P 16-3 SEOOW S7661 T2L 347V-20A WHITE 3’ L24-20P 16-3 SEOW S7665 T2L 347V-20A BLACK 3’ L24-20P 14-3 SJT S7666 T2L 347V-20A WHITE 3’ L24-20P 14-3 SJT S7670 T2L 480V-20A BLACK 3’ L8-20P 16-3 SEOOW S7671 T2L 480V-20A WHITE 3’ L8-20P 16-3 SEOW S7675 T2L 480V-20A BLACK 3’ L8-20P 14-3 SJT S7690 T2L 250V-15A BLACK 3’ L6-15P 16-3 SEOOW S7691 T2L 250V-15A WHITE 3’ L6-15P 16-3 SEOW S7695 T2L 250V-15A BLACK 3’ L6-15P 14-3 SJT S7696 T2L 250V-15A WHITE 3’ L6-15P 14-3 SJT S7700 T2L 250V-30A BLACK 3’ L6-30P 10-3 SJT S7705 T2L 250V-30A BLACK 3’ L6-30P 12-3 SJT S7710 T2L 250V-30A BLACK 3’ L6-30P 12-3 STOW S7715 T2L 125V-30A BLACK 3’ L5-30P 12-3 SJO S7716 T2L 125V-30A BLACK 3’ L5-30P 12-3 SJTO S7717 T2L 125V-30A BLACK 3’ L5-30P 12-3 SJT S7718 T2L 125V-30A BLACK 3’ L5-30P 10-3 SJT S7750 FT2L 125V-20A BLACK 3’ L5-20R 12-3 STOW c US c US
