Heyco Products, Inc. "The First Name in Wire Protection"

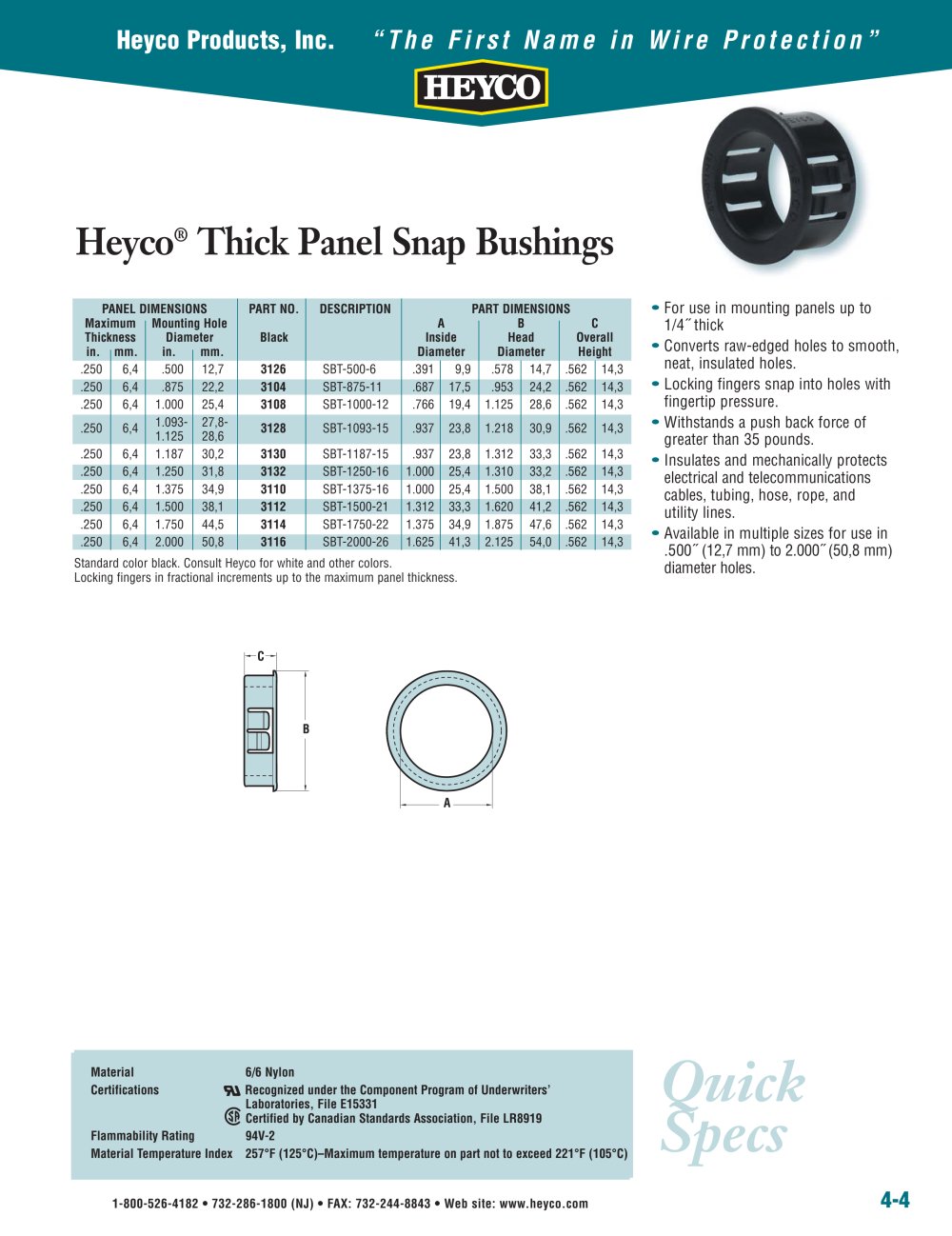

Heyco® Thick Panel Snap Bushings

For use in mounting panels up to 1/4" thick

Converts raw-edged holes to smooth,

neat, insulated holes.

Locking fingers snap into holes with

fingertip pressure.

Withstands a push back force of

greater than 35 pounds.

Insulates and mechanically protects electrical and telecommunications cables, tubing, hose, rope, and utility lines.

Available in multiple sizes for use in .500" (12,7 mm) to 2.000" (50,8 mm) diameter holes.

Standard color black. Consult Heyco for white and other colors. Locking fingers in fractional increments up to the maximum panel

thickness.

Material Certifications

6/6 Nylon

9! Recognized under the Component Program of Underwriters' _ Laboratories, File E15331

(If Certified by Canadian Standards Association, File LR8919 94V-2

QUICK

Specs

Flammability Rating

Material Temperature Index 257°F (125°C)-Maximum temperature on part not to exceed 221°F (105°C)

1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 4-4
