Heyco® Thick Panel Glossy Plugs - Heyco - #1

Text version of the page

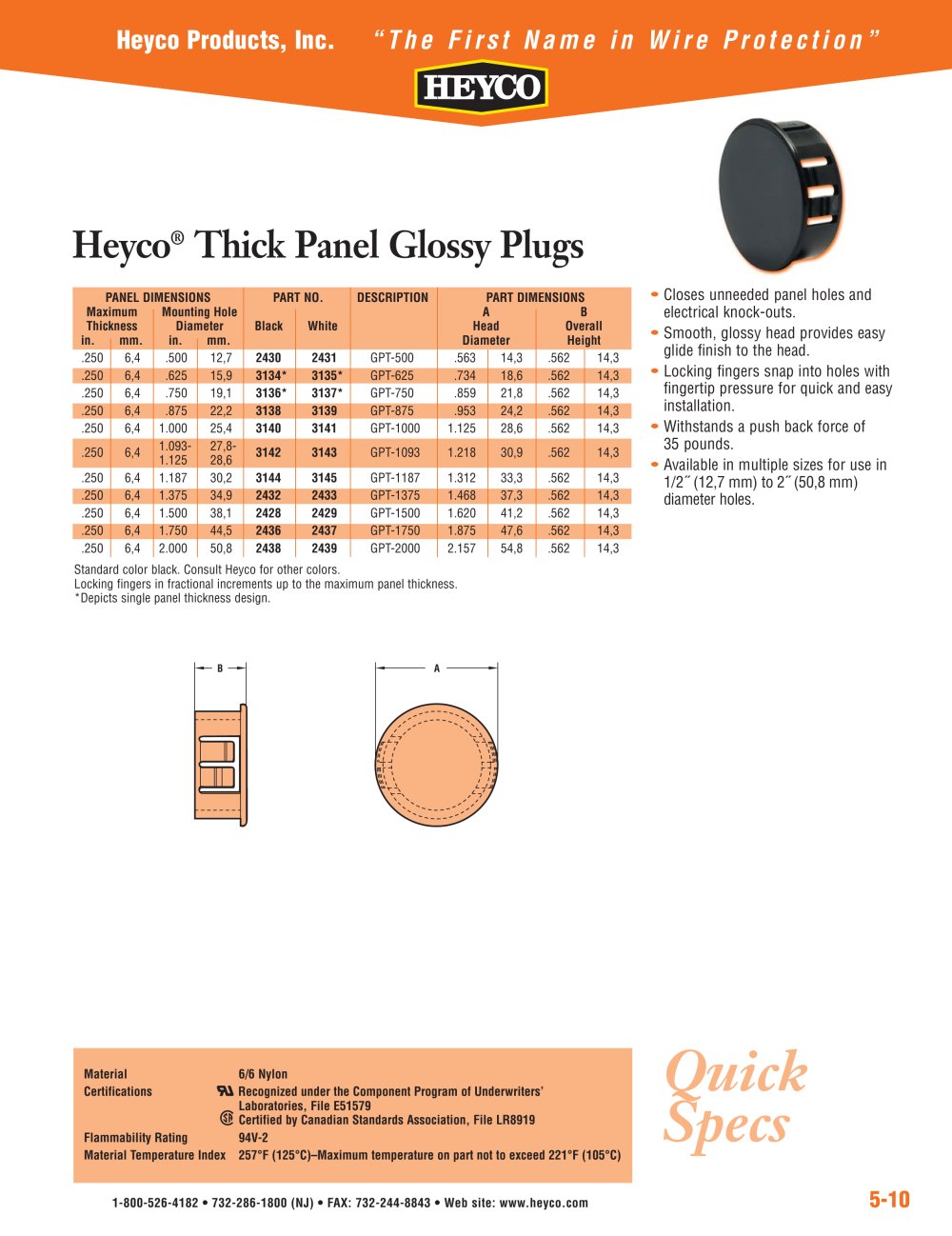

• Closes unneeded panel holes and electrical knock-outs. • Smooth, glossy head provides easy glide finish to the head. • Locking fingers snap into holes with fingertip pressure for quick and easy installation. • Withstands a push back force of 35 pounds. • Available in multiple sizes for use in 1/2½ (12,7 mm) to 2½ (50,8 mm) diameter holes. Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 5-10 Quick Specs B A PANEL DIMENSIONS PART NO. DESCRIPTION PART DIMENSIONS Maximum Mounting Hole A B Thickness Diameter Black White Head Overall in. mm. in. mm. Diameter Height .250 6,4 .500 12,7 2430 2431 GPT-500 .563 14,3 .562 14,3 .250 6,4 .625 15,9 3134* 3135* GPT-625 .734 18,6 .562 14,3 .250 6,4 .750 19,1 3136* 3137* GPT-750 .859 21,8 .562 14,3 .250 6,4 .875 22,2 3138 3139 GPT-875 .953 24,2 .562 14,3 .250 6,4 1.000 25,4 3140 3141 GPT-1000 1.125 28,6 .562 14,3 .250 6,4 1.093- 27,8- 3142 3143 GPT-1093 1.218 30,9 .562 14,3 1.125 28,6 .250 6,4 1.187 30,2 3144 3145 GPT-1187 1.312 33,3 .562 14,3 .250 6,4 1.375 34,9 2432 2433 GPT-1375 1.468 37,3 .562 14,3 .250 6,4 1.500 38,1 2428 2429 GPT-1500 1.620 41,2 .562 14,3 .250 6,4 1.750 44,5 2436 2437 GPT-1750 1.875 47,6 .562 14,3 .250 6,4 2.000 50,8 2438 2439 GPT-2000 2.157 54,8 .562 14,3 Standard color black. Consult Heyco for other colors. Locking fingers in fractional increments up to the maximum panel thickness. *Depicts single panel thickness design. Heyco® Thick Panel Glossy Plugs Material 6/6 Nylon Certifications Recognized under the Component Program of Underwriters’ Laboratories, File E51579 Certified by Canadian Standards Association, File LR8919 Flammability Rating 94V-2 Material Temperature Index 257°F (125°C)–Maximum temperature on part not to exceed 221°F (105°C)
