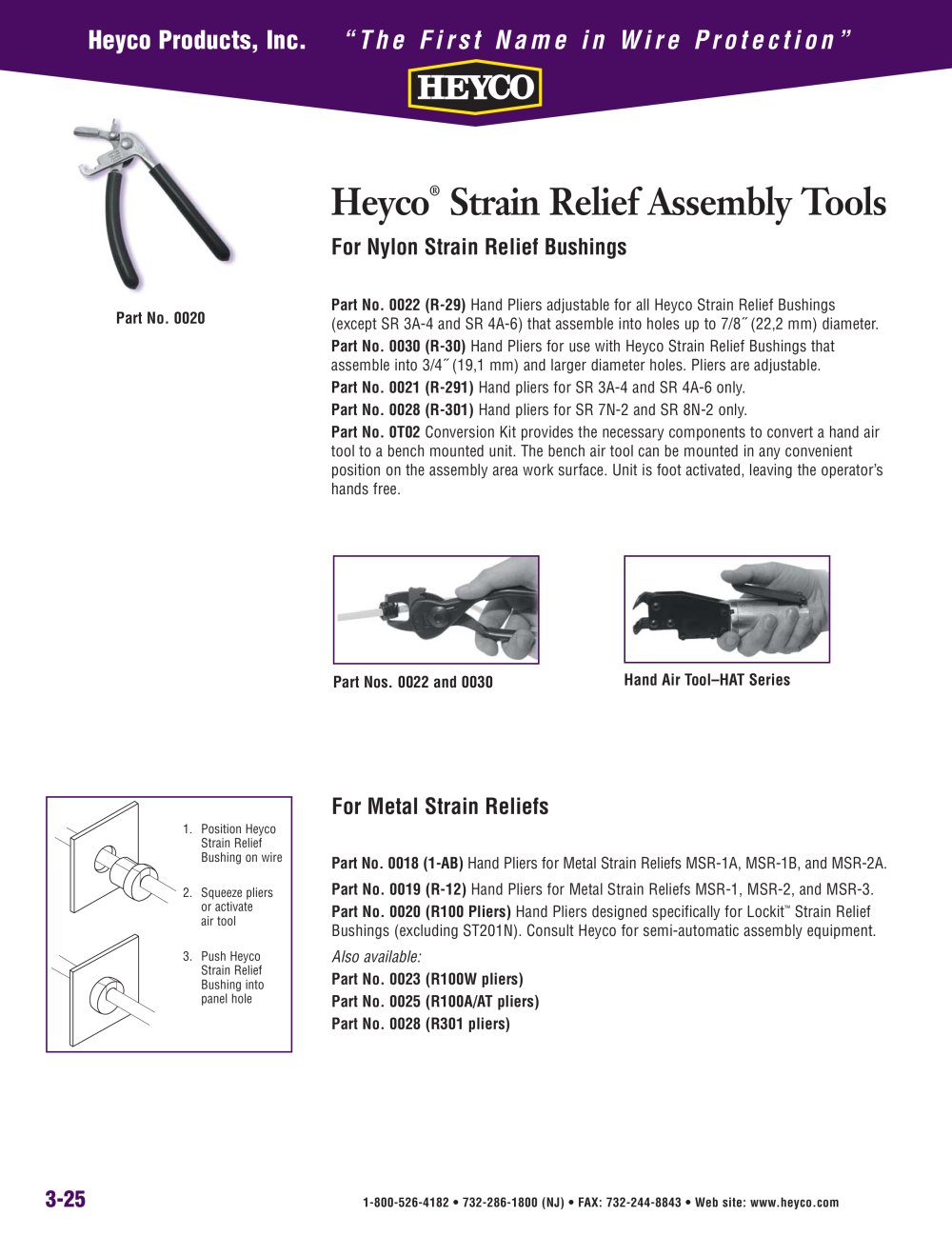

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 3-25 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com Heyco® Strain Relief Assembly Tools For Nylon Strain Relief Bushings 1. Position Heyco Strain Relief Bushing on wire 2. Squeeze pliers or activate air tool 3. Push Heyco Strain Relief Bushing into panel hole Part No. 0022 (R-29) Hand Pliers adjustable for all Heyco Strain Relief Bushings (except SR 3A-4 and SR 4A-6) that assemble into holes up to 7/8½ (22,2 mm) diameter. Part No. 0030 (R-30) Hand Pliers for use with Heyco Strain Relief Bushings that assemble into 3/4½ (19,1 mm) and larger diameter holes. Pliers are adjustable. Part No. 0021 (R-291) Hand pliers for SR 3A-4 and SR 4A-6 only. Part No. 0028 (R-301) Hand pliers for SR 7N-2 and SR 8N-2 only. Part No. 0T02 Conversion Kit provides the necessary components to convert a hand air tool to a bench mounted unit. The bench air tool can be mounted in any convenient position on the assembly area work surface. Unit is foot activated, leaving the operator’s hands free. Part Nos. 0022 and 0030 Hand Air Tool –HAT Series Part No. 0020 For Metal Strain Reliefs Part No. 0018 (1-AB) Hand Pliers for Metal Strain Reliefs MSR-1A, MSR-1B, and MSR-2A. Part No. 0019 (R-12) Hand Pliers for Metal Strain Reliefs MSR-1, MSR-2, and MSR-3. Part No. 0020 (R100 Pliers) Hand Pliers designed specifically for Lockit™ Strain Relief Bushings (excluding ST201N). Consult Heyco for semi-automatic assembly equipment. Also available: Part No. 0023 (R100W pliers) Part No. 0025 (R100A/AT pliers) Part No. 0028 (R301 pliers)
