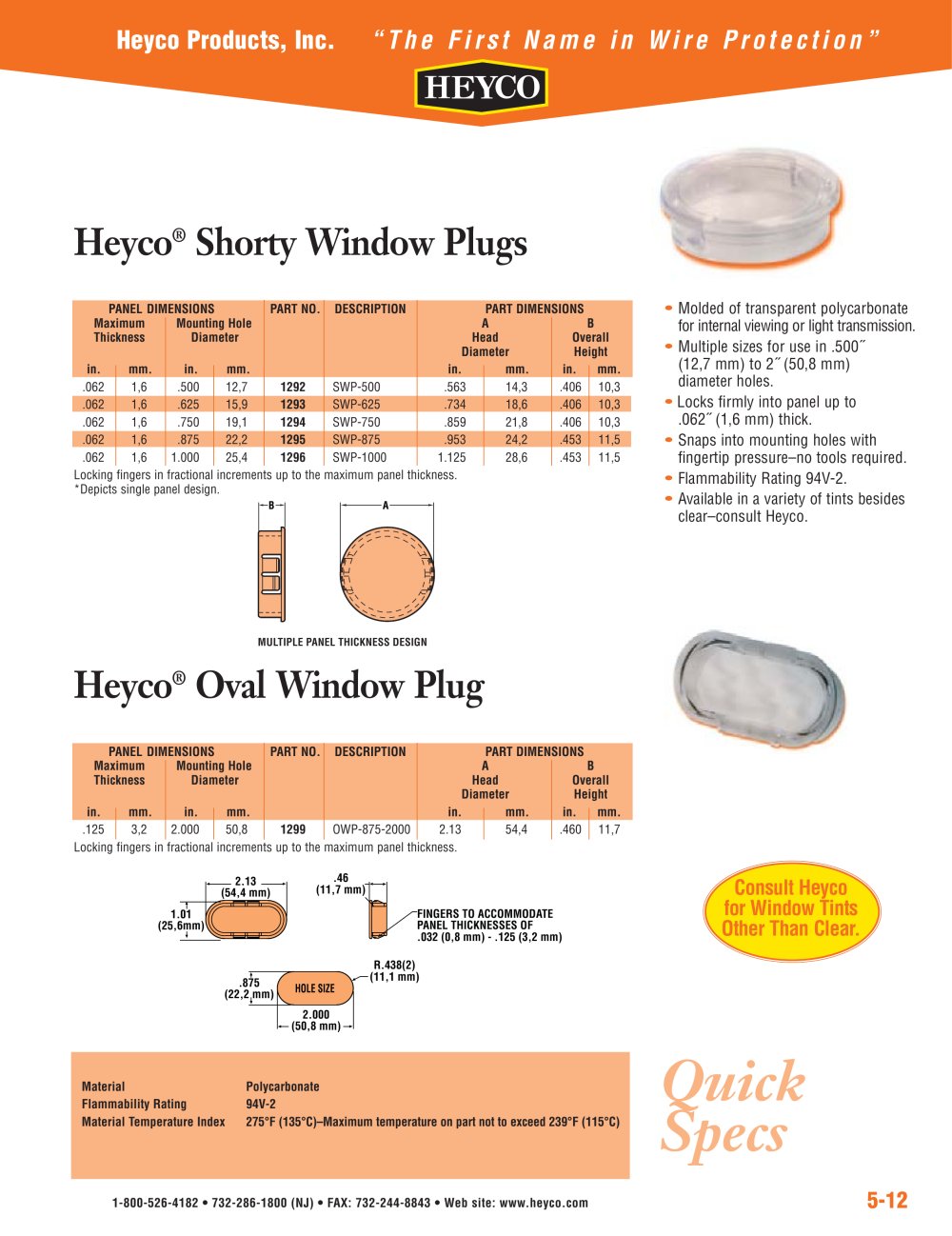

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 5-12 Quick Specs • Molded of transparent polycarbonate for internal viewing or light transmission. • Multiple sizes for use in .500½ (12,7 mm) to 2½ (50,8 mm) diameter holes. • Locks firmly into panel up to .062½ (1,6 mm) thick. • Snaps into mounting holes with fingertip pressure–no tools required. • Flammability Rating 94V-2. • Available in a variety of tints besides clear–consult Heyco. Consult Heyco for Window Tints Other Than Clear. Heyco® Shorty Window Plugs PANEL DIMENSIONS PART NO. DESCRIPTION PART DIMENSIONS Maximum Mounting Hole A B Thickness Diameter Head Overall Diameter Height in. mm. in. mm. in. mm. in. mm. .062 1,6 .500 12,7 1292 SWP-500 .563 14,3 .406 10,3 .062 1,6 .625 15,9 1293 SWP-625 .734 18,6 .406 10,3 .062 1,6 .750 19,1 1294 SWP-750 .859 21,8 .406 10,3 .062 1,6 .875 22,2 1295 SWP-875 .953 24,2 .453 11,5 .062 1,6 1.000 25,4 1296 SWP-1000 1.125 28,6 .453 11,5 Locking fingers in fractional increments up to the maximum panel thickness. *Depicts single panel design. Material Polycarbonate Flammability Rating 94V-2 Material Temperature Index 275°F (135°C)–Maximum temperature on part not to exceed 239°F (115°C) B A MULTIPLE PANEL THICKNESS DESIGN 2.13 (54,4 mm) 1.01 (25,6mm) 2.000 (50,8 mm) .875 (22,2 mm) FINGERS TO ACCOMMODATE PANEL THICKNESSES OF .032 (0,8 mm) - .125 (3,2 mm) HOLE SIZE .46 (11,7 mm) R.438(2) (11,1 mm) Heyco® Oval Window Plug PANEL DIMENSIONS PART NO. DESCRIPTION PART DIMENSIONS Maximum Mounting Hole A B Thickness Diameter Head Overall Diameter Height in. mm. in. mm. in. mm. in. mm. .125 3,2 2.000 50,8 1299 OWP-875-2000 2.13 54,4 .460 11,7 Locking fingers in fractional increments up to the maximum panel thickness.
