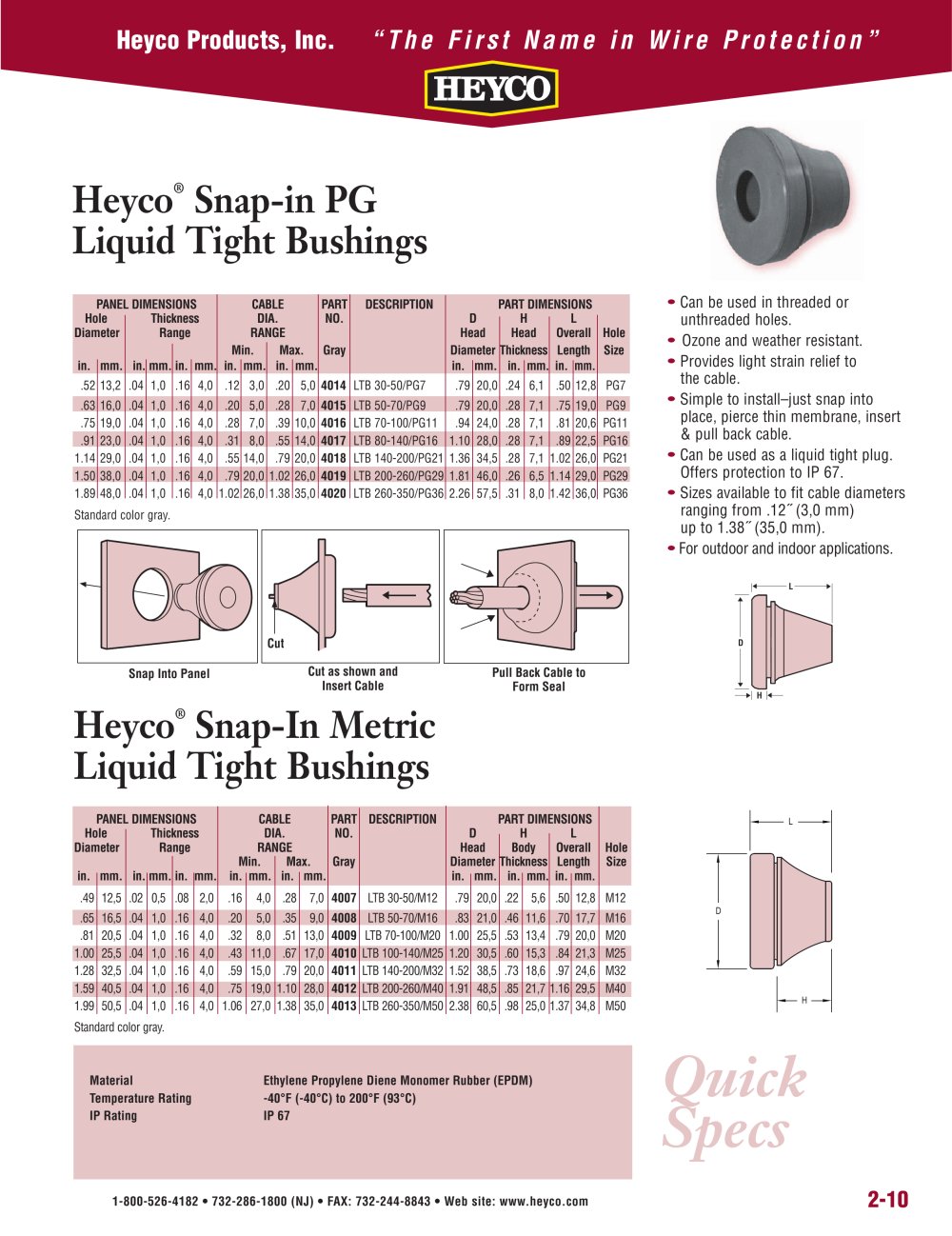

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 2-10 • Can be used in threaded or unthreaded holes. • Ozone and weather resistant. • Provides light strain relief to the cable. • Simple to install–just snap into place, pierce thin membrane, insert & pull back cable. • Can be used as a liquid tight plug. Offers protection to IP 67. • Sizes available to fit cable diameters ranging from .12½ (3,0 mm) up to 1.38½ (35,0 mm). • For outdoor and indoor applications. Heyco® Snap-in PG Liquid Tight Bushings PANEL DIMENSIONS CABLE PART DESCRIPTION PART DIMENSIONS Hole Thickness DIA. NO. D H L Diameter Range RANGE Head Head Overall Hole Min. Max. Gray Diameter Thickness Length Size in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. .52 13,2 .04 1,0 .16 4,0 .12 3,0 .20 5,0 4014 LTB 30-50/PG7 .79 20,0 .24 6,1 .50 12,8 PG7 .63 16,0 .04 1,0 .16 4,0 .20 5,0 .28 7,0 4015 LTB 50-70/PG9 .79 20,0 .28 7,1 .75 19,0 PG9 .75 19,0 .04 1,0 .16 4,0 .28 7,0 .39 10,0 4016 LTB 70-100/PG11 .94 24,0 .28 7,1 .81 20,6 PG11 .91 23,0 .04 1,0 .16 4,0 .31 8,0 .55 14,0 4017 LTB 80-140/PG16 1.10 28,0 .28 7,1 .89 22,5 PG16 1.14 29,0 .04 1,0 .16 4,0 .55 14,0 .79 20,0 4018 LTB 140-200/PG21 1.36 34,5 .28 7,1 1.02 26,0 PG21 1.50 38,0 .04 1,0 .16 4,0 .79 20,0 1.02 26,0 4019 LTB 200-260/PG29 1.81 46,0 .26 6,5 1.14 29,0 PG29 1.89 48,0 .04 1,0 .16 4,0 1.02 26,0 1.38 35,0 4020 LTB 260-350/PG36 2.26 57,5 .31 8,0 1.42 36,0 PG36 Standard color gray. D H L Snap Into Panel Cut Cut as shown and Insert Cable Pull Back Cable to Form Seal Quick Specs Heyco® Snap-In Metric Liquid Tight Bushings PANEL DIMENSIONS CABLE PART DESCRIPTION PART DIMENSIONS Hole Thickness DIA. NO. D H L Diameter Range RANGE Head Body Overall Hole Min. Max. Gray Diameter Thickness Length Size in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. .49 12,5 .02 0,5 .08 2,0 .16 4,0 .28 7,0 4007 LTB 30-50/M12 .79 20,0 .22 5,6 .50 12,8 M12 .65 16,5 .04 1,0 .16 4,0 .20 5,0 .35 9,0 4008 LTB 50-70/M16 .83 21,0 .46 11,6 .70 17,7 M16 .81 20,5 .04 1,0 .16 4,0 .32 8,0 .51 13,0 4009 LTB 70-100/M20 1.00 25,5 .53 13,4 .79 20,0 M20 1.00 25,5 .04 1,0 .16 4,0 .43 11,0 .67 17,0 4010 LTB 100-140/M25 1.20 30,5 .60 15,3 .84 21,3 M25 1.28 32,5 .04 1,0 .16 4,0 .59 15,0 .79 20,0 4011 LTB 140-200/M32 1.52 38,5 .73 18,6 .97 24,6 M32 1.59 40,5 .04 1,0 .16 4,0 .75 19,0 1.10 28,0 4012 LTB 200-260/M40 1.91 48,5 .85 21,7 1.16 29,5 M40 1.99 50,5 .04 1,0 .16 4,0 1.06 27,0 1.38 35,0 4013 LTB 260-350/M50 2.38 60,5 .98 25,0 1.37 34,8 M50 Standard color gray. Material Ethylene Propylene Diene Monomer Rubber (EPDM) Temperature Rating -40°F (-40°C) to 200°F (93°C) IP Rating IP 67 H D L
