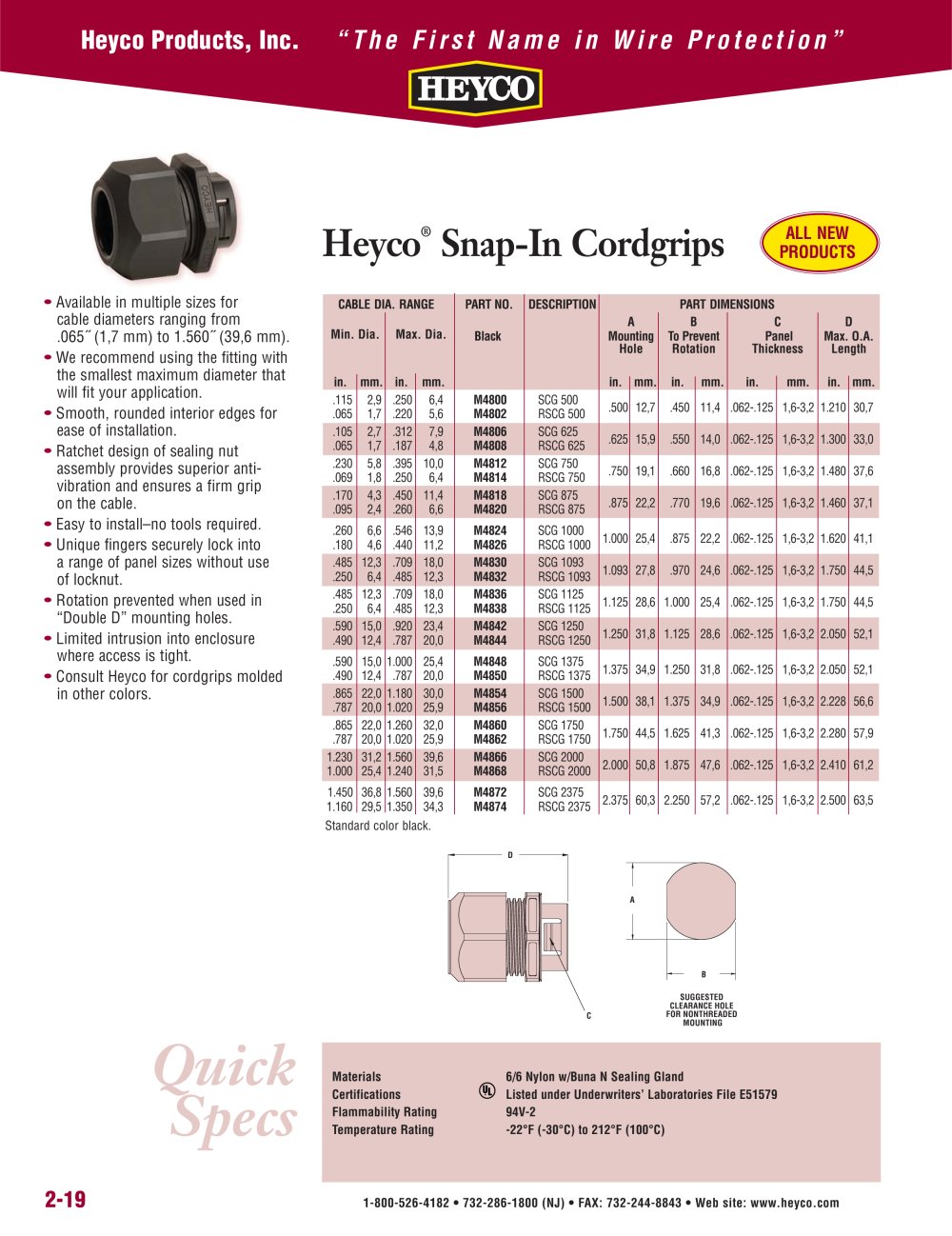

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 2-19 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com D C • Available in multiple sizes for cable diameters ranging from .065½ (1,7 mm) to 1.560½ (39,6 mm). • We recommend using the fitting with the smallest maximum diameter that will fit your application. • Smooth, rounded interior edges for ease of installation. • Ratchet design of sealing nut assembly provides superior antivibration and ensures a firm grip on the cable. • Easy to install–no tools required. • Unique fingers securely lock into a range of panel sizes without use of locknut. • Rotation prevented when used in “Double D” mounting holes. • Limited intrusion into enclosure where access is tight. • Consult Heyco for cordgrips molded in other colors. Heyco® Snap-In Cordgrips CABLE DIA. RANGE PART NO. DESCRIPTION PART DIMENSIONS A B C D Min. Dia. Max. Dia. Black Mounting To Prevent Panel Max. O.A. Hole Rotation Thickness Length in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. .115 2,9 .250 6,4 M4800 SCG 500 .065 1,7 .220 5,6 M4802 RSCG 500 .500 12,7 .450 11,4 .062-.125 1,6-3,2 1.210 30,7 .105 2,7 .312 7,9 M4806 SCG 625 .065 1,7 .187 4,8 M4808 RSCG 625 .625 15,9 .550 14,0 .062-.125 1,6-3,2 1.300 33,0 .230 5,8 .395 10,0 M4812 SCG 750 .069 1,8 .250 6,4 M4814 RSCG 750 .750 19,1 .660 16,8 .062-.125 1,6-3,2 1.480 37,6 .170 4,3 .450 11,4 M4818 SCG 875 .095 2,4 .260 6,6 M4820 RSCG 875 .875 22,2 .770 19,6 .062-.125 1,6-3,2 1.460 37,1 .260 6,6 .546 13,9 M4824 SCG 1000 .180 4,6 .440 11,2 M4826 RSCG 1000 1.000 25,4 .875 22,2 .062-.125 1,6-3,2 1.620 41,1 .485 12,3 .709 18,0 M4830 SCG 1093 .250 6,4 .485 12,3 M4832 RSCG 1093 1.093 27,8 .970 24,6 .062-.125 1,6-3,2 1.750 44,5 .485 12,3 .709 18,0 M4836 SCG 1125 .250 6,4 .485 12,3 M4838 RSCG 1125 1.125 28,6 1.000 25,4 .062-.125 1,6-3,2 1.750 44,5 .590 15,0 .920 23,4 M4842 SCG 1250 .490 12,4 .787 20,0 M4844 RSCG 1250 1.250 31,8 1.125 28,6 .062-.125 1,6-3,2 2.050 52,1 .590 15,0 1.000 25,4 M4848 SCG 1375 .490 12,4 .787 20,0 M4850 RSCG 1375 1.375 34,9 1.250 31,8 .062-.125 1,6-3,2 2.050 52,1 .865 22,0 1.180 30,0 M4854 SCG 1500 .787 20,0 1.020 25,9 M4856 RSCG 1500 1.500 38,1 1.375 34,9 .062-.125 1,6-3,2 2.228 56,6 .865 22,0 1.260 32,0 M4860 SCG 1750 .787 20,0 1.020 25,9 M4862 RSCG 1750 1.750 44,5 1.625 41,3 .062-.125 1,6-3,2 2.280 57,9 1.230 31,2 1.560 39,6 M4866 SCG 2000 1.000 25,4 1.240 31,5 M4868 RSCG 2000 2.000 50,8 1.875 47,6 .062-.125 1,6-3,2 2.410 61,2 1.450 36,8 1.560 39,6 M4872 SCG 2375 1.160 29,5 1.350 34,3 M4874 RSCG 2375 2.375 60,3 2.250 57,2 .062-.125 1,6-3,2 2.500 63,5 Quick Specs ALL NEW PRODUCTS Standard color black. A B SUGGESTED CLEARANCE HOLE FOR NONTHREADED MOUNTING Materials 6/6 Nylon w/Buna N Sealing Gland Certifications Listed under Underwriters’ Laboratories File E51579 Flammability Rating 94V-2 Temperature Rating -22°F (-30°C) to 212°F (100°C) Quick Specs
