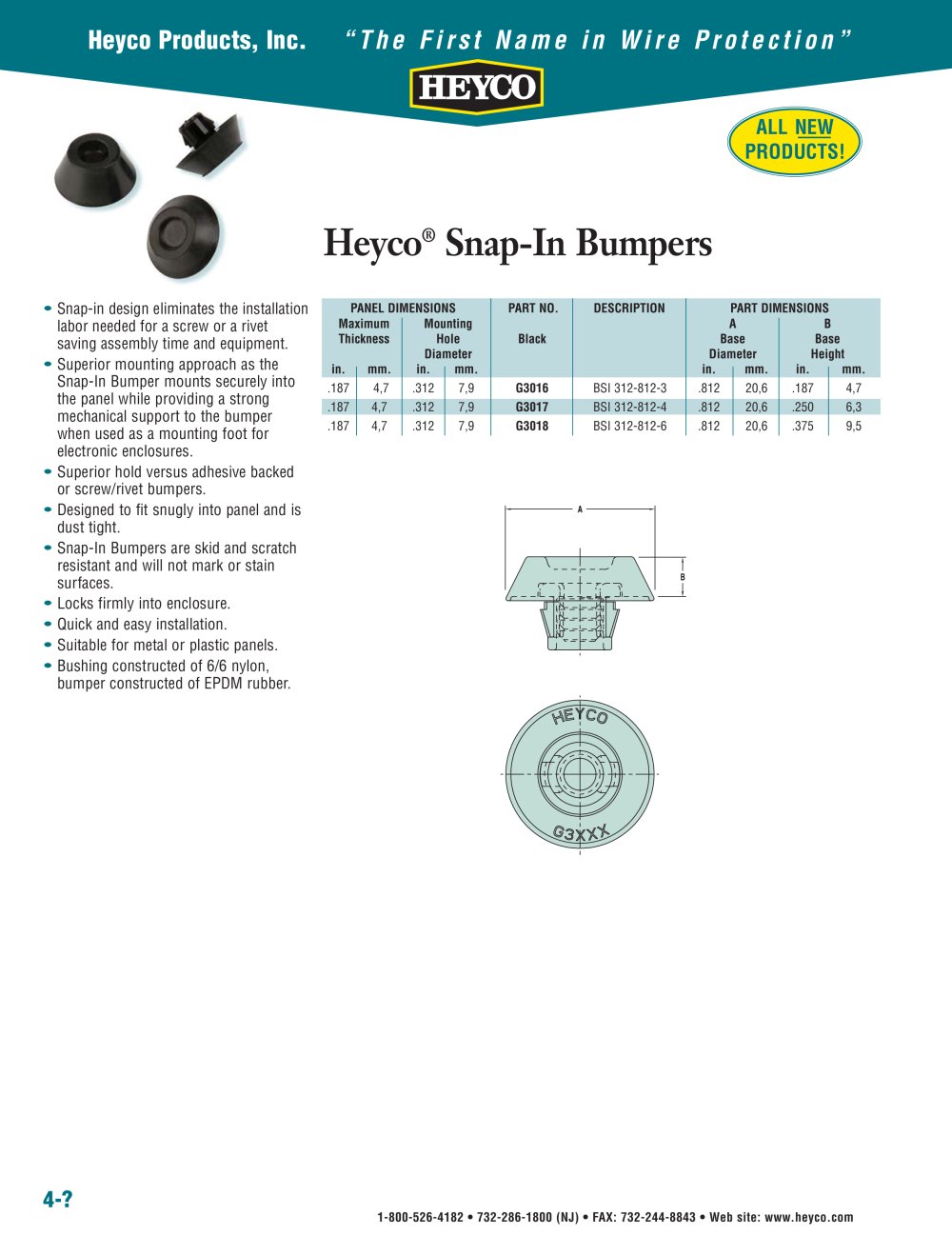

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 4-? 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com Heyco® Snap-In Bumpers • Snap-in design eliminates the installation labor needed for a screw or a rivet saving assembly time and equipment. • Superior mounting approach as the Snap-In Bumper mounts securely into the panel while providing a strong mechanical support to the bumper when used as a mounting foot for electronic enclosures. • Superior hold versus adhesive backed or screw/rivet bumpers. • Designed to fit snugly into panel and is dust tight. • Snap-In Bumpers are skid and scratch resistant and will not mark or stain surfaces. • Locks firmly into enclosure. • Quick and easy installation. • Suitable for metal or plastic panels. • Bushing constructed of 6/6 nylon, bumper constructed of EPDM rubber. PANEL DIMENSIONS PART NO. DESCRIPTION PART DIMENSIONS Maximum Mounting A B Thickness Hole Black Base Base Diameter Diameter Height in. mm. in. mm. in. mm. in. mm. .187 4,7 .312 7,9 G3016 BSI 312-812-3 .812 20,6 .187 4,7 .187 4,7 .312 7,9 G3017 BSI 312-812-4 .812 20,6 .250 6,3 .187 4,7 .312 7,9 G3018 BSI 312-812-6 .812 20,6 .375 9,5 ALL NEW PRODUCTS! A B
