Heyco® Snap Bushings Mounting Diameter: 0.812 - 2

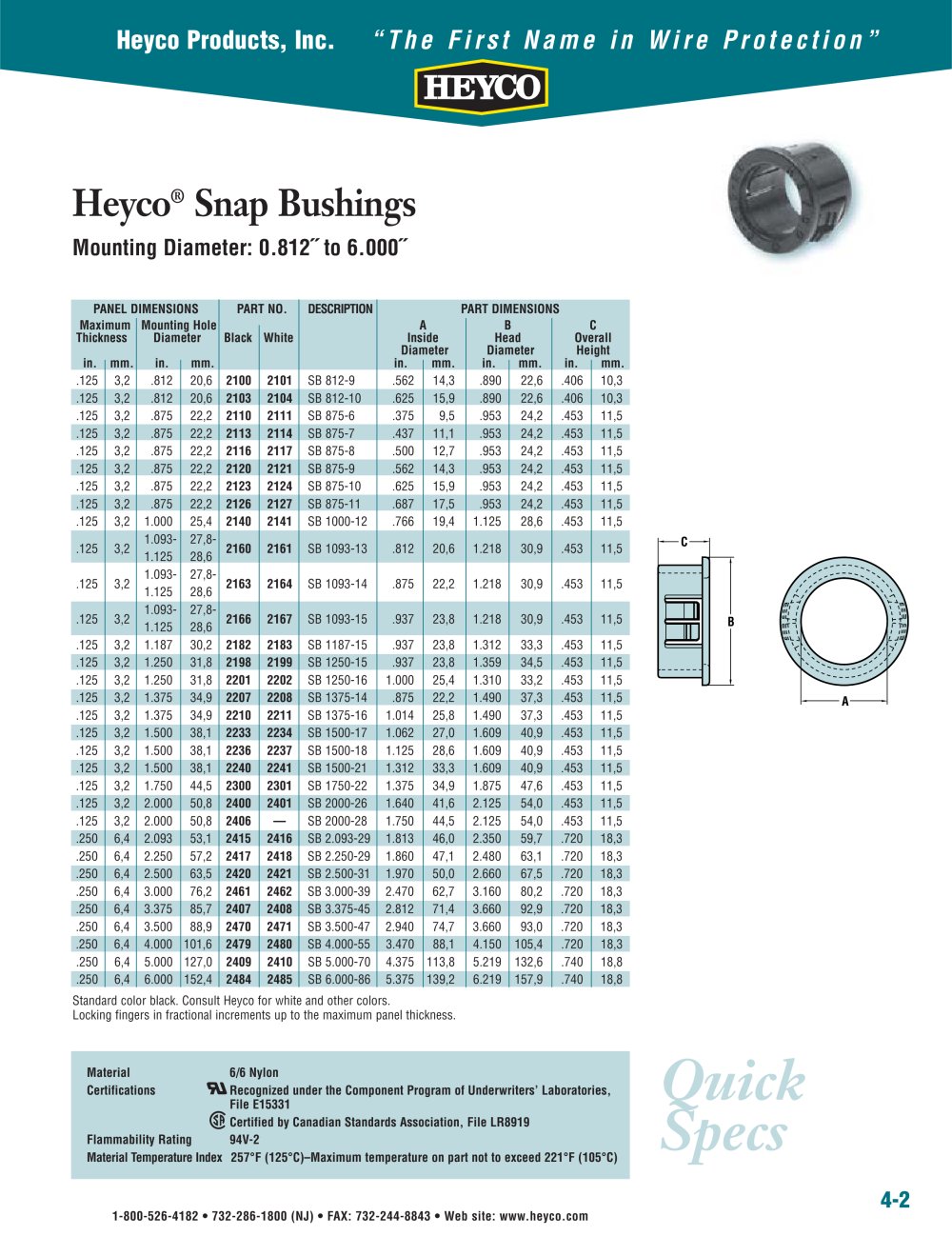

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 4-3 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com Quick Specs Heyco® Metric Snap Bushings A C B PANEL DIMENSIONS PART NO. DESCRIPTION PART DIMENSIONS Maximum Mounting Hole A B C Thickness Diameter Black Inside Head Overall Diameter Diameter Height in. mm. in. mm. in. mm. in. mm. in. mm. .098 2,5 .630 16,0 2142 MSB 16-12 .472 12,0 .728 18,5 .406 10,3 .098 2,5 .787 20,0 2144 MSB 20-16 .630 16,0 .890 22,6 .406 10,3 .098 2,5 .984 25,0 2146 MSB 25-19 .748 19,0 1.094 27,8 .453 11,5...

Open the catalog to page 2

Heyco® Snap Bushings Mounting Diameter: 0.812 - 3

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 4-4 Quick Specs Heyco® Thick Panel Snap Bushings • For use in mounting panels up to 1/4½ thick • Converts raw-edged holes to smooth, neat, insulated holes. • Locking fingers snap into holes with fingertip pressure. • Withstands a push back force of greater than 35 pounds. • Insulates and mechanically protects electrical and telecommunications cables, tubing, hose, rope, and utility lines. • Available in multiple sizes for use in...

Open the catalog to page 3

Heyco® Snap Bushings Mounting Diameter: 0.812 - 4

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 4-5 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com Quick Specs Material 6/6 Nylon Certifications Recognized under the Component Program of Underwriters’ Laboratories, File E15331 Certified by Canadian Standards Association, File LR8919 Flammability Rating 94V-2 Material Temperature Index 257°F (125°C)–Maximum temperature on part not to exceed 221°F (105°C) Heyco® Snub Bushings • Provides insulation plus light strain relief. • Suitable for 1/8½ (3,2 mm) to 1/4½ (6,4 mm) diameter...

Open the catalog to page 4

Heyco® Snap Bushings Mounting Diameter: 0.812 - 7

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 4-8 Quick Specs • For use in mounting panels up to .25½ thick. • Converts raw-edged holes to smooth, neat, insulated holes. • Flexible shutters to absorb vibration on the inside diameter. • Locking fingers snap into holes with fingertip pressure. • Withstands a push back force of 35 pounds. • Insulates and mechanically protects electrical and telecommunications cables, tubing, hose, rope, and utility lines. • Available in multiple...

Open the catalog to page 7

Heyco® Snap Bushings Mounting Diameter: 0.812 - 8

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 4-9 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com Quick Specs • Split design allows side entry and encirclement of preassembled harnesses, power cords, capillary tubes or other assemblies that have segments larger than the bushing’s ID. • Parts can be assembled into holes that already contain cables or tubing. • Only fingertip pressure required to snap-lock the bushing into its mounting hole. • Flexible shutters adjust to accommodate and support any shape from .125½ to a...

Open the catalog to page 8

Heyco® Snap Bushings Mounting Diameter: 0.812 - 9

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 4-10 Quick Specs • Multiple sizes for use in mounting holes from .375½ (9,5 mm) to 1.500½ (38,1 mm). • Split design allows side entry and encirclement of preassembled harnesses, capillary tubes or other assemblies that have segments larger than the bushing’s ID. • May also be assembled into holes that already contain cable, wire or other filaments. • Fingertip pressure snap-locks the bushing into its mounting hole. Material 6/6...
