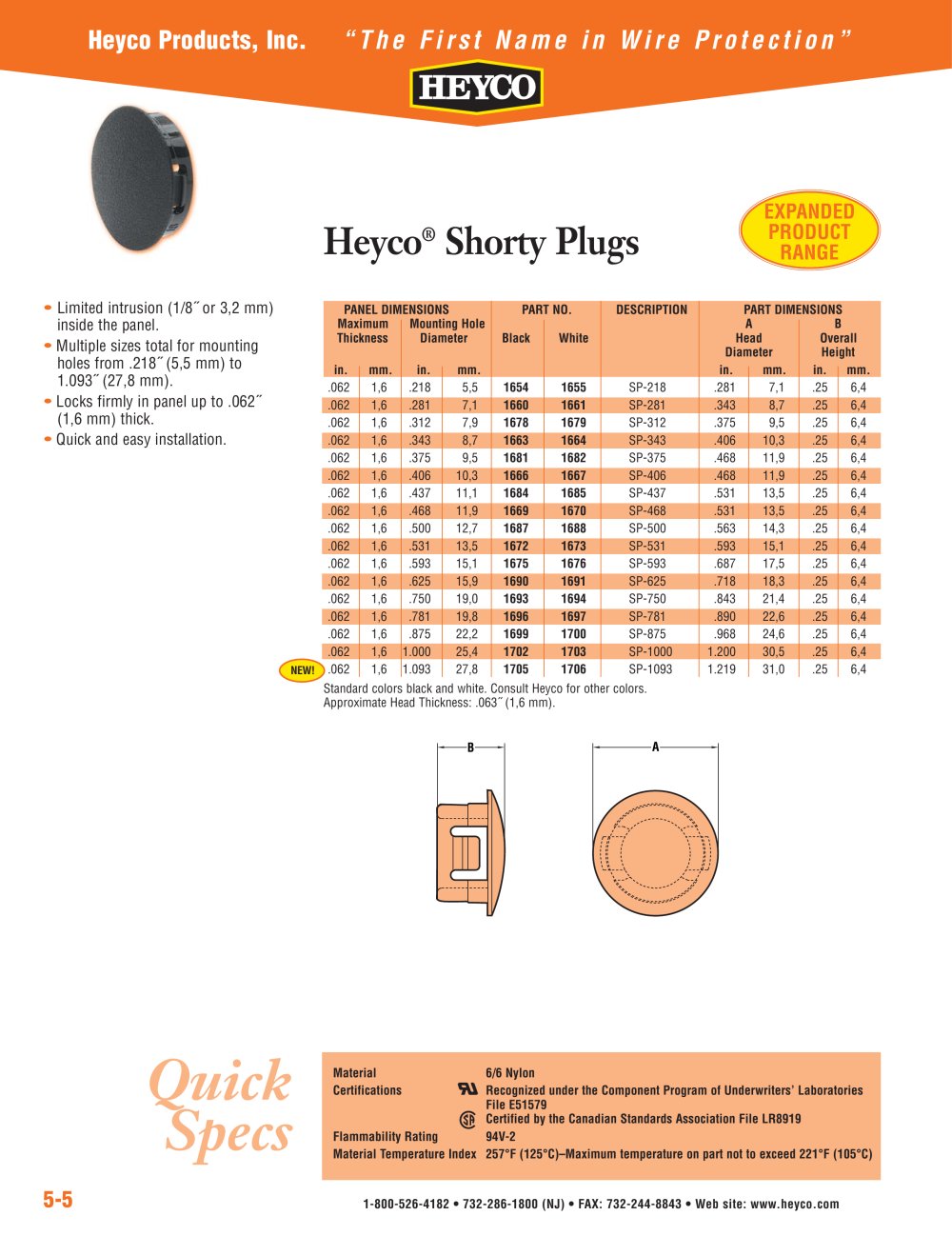

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 5-5 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com Quick Specs Heyco® Shorty Plugs • Limited intrusion (1/8½ or 3,2 mm) inside the panel. • Multiple sizes total for mounting holes from .218½ (5,5 mm) to 1.093½ (27,8 mm). • Locks firmly in panel up to .062½ (1,6 mm) thick. • Quick and easy installation. PANEL DIMENSIONS PART NO. DESCRIPTION PART DIMENSIONS Maximum Mounting Hole A B Thickness Diameter Black White Head Overall Diameter Height in. mm. in. mm. in. mm. in. mm. .062 1,6 .218 5,5 1654 1655 SP-218 .281 7,1 .25 6,4 .062 1,6 .281 7,1 1660 1661 SP-281 .343 8,7 .25 6,4 .062 1,6 .312 7,9 1678 1679 SP-312 .375 9,5 .25 6,4 .062 1,6 .343 8,7 1663 1664 SP-343 .406 10,3 .25 6,4 .062 1,6 .375 9,5 1681 1682 SP-375 .468 11,9 .25 6,4 .062 1,6 .406 10,3 1666 1667 SP-406 .468 11,9 .25 6,4 .062 1,6 .437 11,1 1684 1685 SP-437 .531 13,5 .25 6,4 .062 1,6 .468 11,9 1669 1670 SP-468 .531 13,5 .25 6,4 .062 1,6 .500 12,7 1687 1688 SP-500 .563 14,3 .25 6,4 .062 1,6 .531 13,5 1672 1673 SP-531 .593 15,1 .25 6,4 .062 1,6 .593 15,1 1675 1676 SP-593 .687 17,5 .25 6,4 .062 1,6 .625 15,9 1690 1691 SP-625 .718 18,3 .25 6,4 .062 1,6 .750 19,0 1693 1694 SP-750 .843 21,4 .25 6,4 .062 1,6 .781 19,8 1696 1697 SP-781 .890 22,6 .25 6,4 .062 1,6 .875 22,2 1699 1700 SP-875 .968 24,6 .25 6,4 .062 1,6 1.000 25,4 1702 1703 SP-1000 1.200 30,5 .25 6,4 .062 1,6 1.093 27,8 1705 1706 SP-1093 1.219 31,0 .25 6,4 Standard colors black and white. Consult Heyco for other colors. Approximate Head Thickness: .063½ (1,6 mm). Material 6/6 Nylon Certifications Recognized under the Component Program of Underwriters’ Laboratories File E51579 Certified by the Canadian Standards Association File LR8919 Flammability Rating 94V-2 Material Temperature Index 257°F (125°C)–Maximum temperature on part not to exceed 221°F (105°C) B A EXPANDED PRODUCT RANGE NEW!
