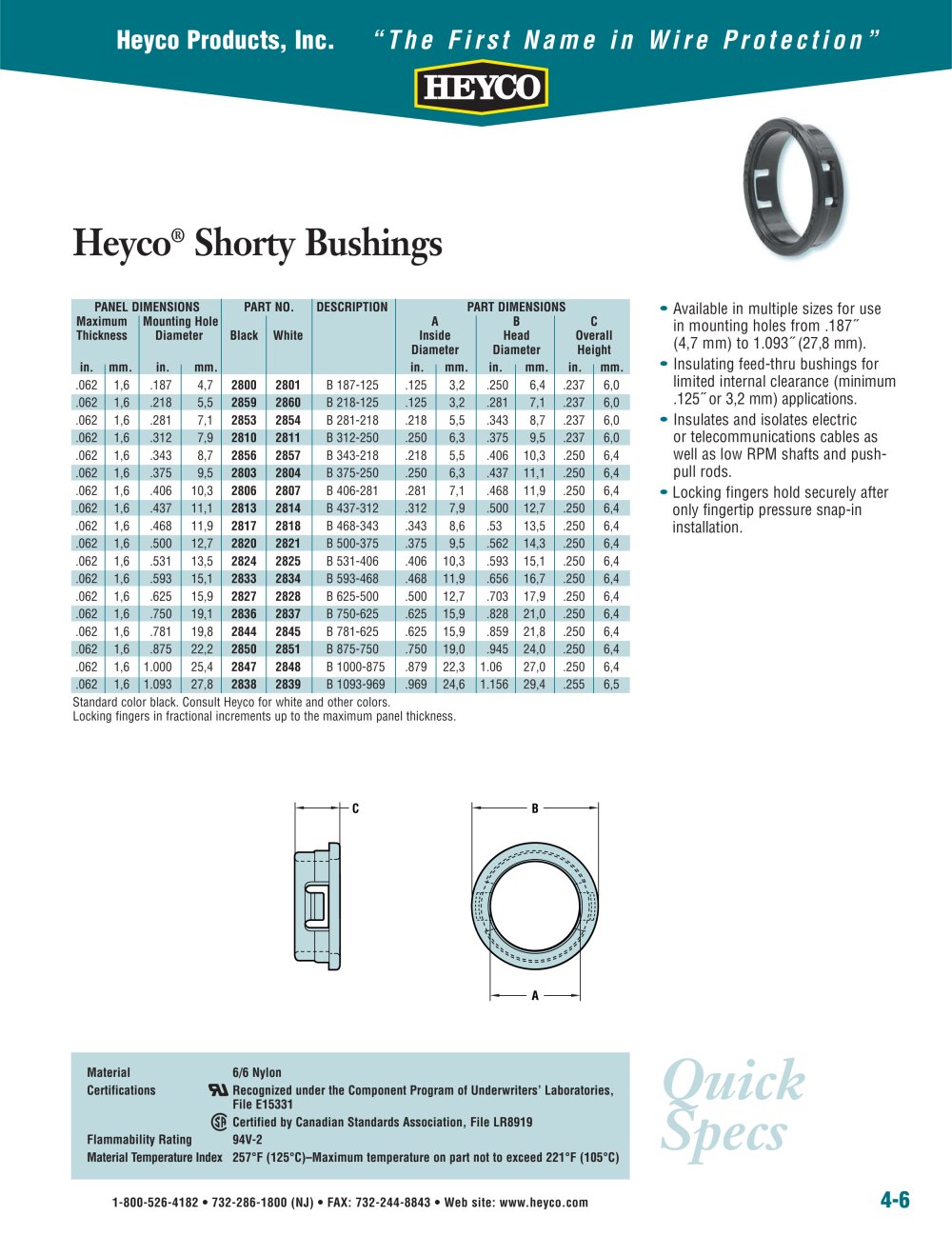

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 4-6 Quick Specs Heyco® Shorty Bushings • Available in multiple sizes for use in mounting holes from .187½ (4,7 mm) to 1.093½ (27,8 mm). • Insulating feed-thru bushings for limited internal clearance (minimum .125½ or 3,2 mm) applications. • Insulates and isolates electric or telecommunications cables as well as low RPM shafts and pushpull rods. • Locking fingers hold securely after only fingertip pressure snap-in installation. PANEL DIMENSIONS PART NO. DESCRIPTION PART DIMENSIONS Maximum Mounting Hole A B C Thickness Diameter Black White Inside Head Overall Diameter Diameter Height in. mm. in. mm. in. mm. in. mm. in. mm. .062 1,6 .187 4,7 2800 2801 B 187-125 .125 3,2 .250 6,4 .237 6,0 .062 1,6 .218 5,5 2859 2860 B 218-125 .125 3,2 .281 7,1 .237 6,0 .062 1,6 .281 7,1 2853 2854 B 281-218 .218 5,5 .343 8,7 .237 6,0 .062 1,6 .312 7,9 2810 2811 B 312-250 .250 6,3 .375 9,5 .237 6,0 .062 1,6 .343 8,7 2856 2857 B 343-218 .218 5,5 .406 10,3 .250 6,4 .062 1,6 .375 9,5 2803 2804 B 375-250 .250 6,3 .437 11,1 .250 6,4 .062 1,6 .406 10,3 2806 2807 B 406-281 .281 7,1 .468 11,9 .250 6,4 .062 1,6 .437 11,1 2813 2814 B 437-312 .312 7,9 .500 12,7 .250 6,4 .062 1,6 .468 11,9 2817 2818 B 468-343 .343 8,6 .53 13,5 .250 6,4 .062 1,6 .500 12,7 2820 2821 B 500-375 .375 9,5 .562 14,3 .250 6,4 .062 1,6 .531 13,5 2824 2825 B 531-406 .406 10,3 .593 15,1 .250 6,4 .062 1,6 .593 15,1 2833 2834 B 593-468 .468 11,9 .656 16,7 .250 6,4 .062 1,6 .625 15,9 2827 2828 B 625-500 .500 12,7 .703 17,9 .250 6,4 .062 1,6 .750 19,1 2836 2837 B 750-625 .625 15,9 .828 21,0 .250 6,4 .062 1,6 .781 19,8 2844 2845 B 781-625 .625 15,9 .859 21,8 .250 6,4 .062 1,6 .875 22,2 2850 2851 B 875-750 .750 19,0 .945 24,0 .250 6,4 .062 1,6 1.000 25,4 2847 2848 B 1000-875 .879 22,3 1.06 27,0 .250 6,4 .062 1,6 1.093 27,8 2838 2839 B 1093-969 .969 24,6 1.156 29,4 .255 6,5 Standard color black. Consult Heyco for white and other colors. Locking fingers in fractional increments up to the maximum panel thickness. Material 6/6 Nylon Certifications Recognized under the Component Program of Underwriters’ Laboratories, File E15331 Certified by Canadian Standards Association, File LR8919 Flammability Rating 94V-2 Material Temperature Index 257°F (125°C)–Maximum temperature on part not to exceed 221°F (105°C) C B A
