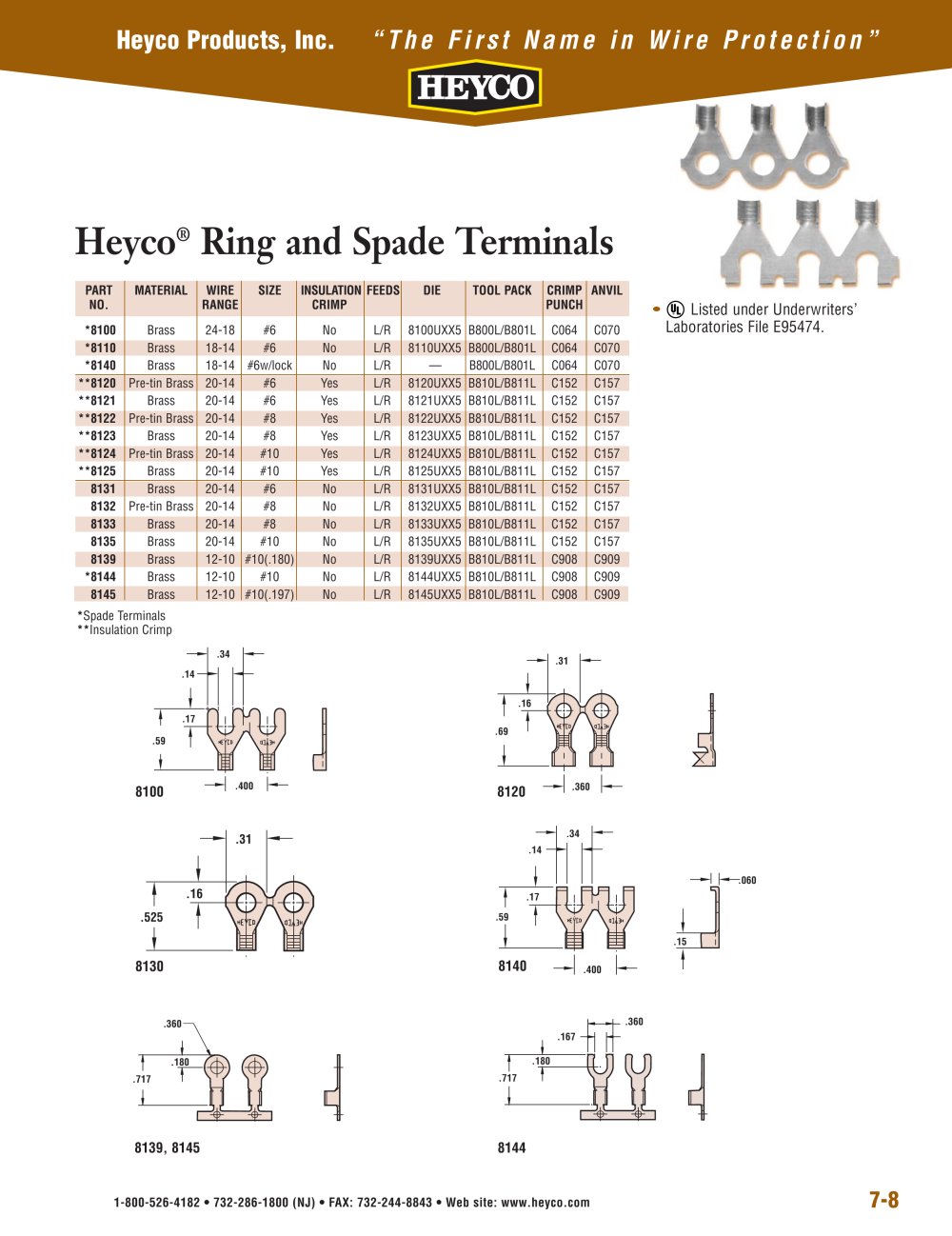

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 7-8 Heyco® Ring and Spade Terminals PART MATERIAL WIRE SIZE INSULATION FEEDS DIE TOOL PACK CRIMP ANVIL NO. RANGE CRIMP PUNCH *8100 Brass 24-18 #6 No L/R 8100UXX5 B800L/B801L C064 C070 *8110 Brass 18-14 #6 No L/R 8110UXX5 B800L/B801L C064 C070 *8140 Brass 18-14 #6w/lock No L/R — B800L/B801L C064 C070 **8120 Pre-tin Brass 20-14 #6 Yes L/R 8120UXX5 B810L/B811L C152 C157 **8121 Brass 20-14 #6 Yes L/R 8121UXX5 B810L/B811L C152 C157 **8122 Pre-tin Brass 20-14 #8 Yes L/R 8122UXX5 B810L/B811L C152 C157 **8123 Brass 20-14 #8 Yes L/R 8123UXX5 B810L/B811L C152 C157 **8124 Pre-tin Brass 20-14 #10 Yes L/R 8124UXX5 B810L/B811L C152 C157 **8125 Brass 20-14 #10 Yes L/R 8125UXX5 B810L/B811L C152 C157 8131 Brass 20-14 #6 No L/R 8131UXX5 B810L/B811L C152 C157 8132 Pre-tin Brass 20-14 #8 No L/R 8132UXX5 B810L/B811L C152 C157 8133 Brass 20-14 #8 No L/R 8133UXX5 B810L/B811L C152 C157 8135 Brass 20-14 #10 No L/R 8135UXX5 B810L/B811L C152 C157 8139 Brass 12-10 #10(.180) No L/R 8139UXX5 B810L/B811L C908 C909 *8144 Brass 12-10 #10 No L/R 8144UXX5 B810L/B811L C908 C909 8145 Brass 12-10 #10(.197) No L/R 8145UXX5 B810L/B811L C908 C909 *Spade Terminals **Insulation Crimp .060 .14 .59 .34 .400 .17 .15 .14 .59 .34 .400 .17 8100 .360 .31 .16 .69 8120 .31 .525 .16 8130 8140 • Listed under Underwriters’ Laboratories File E95474. .717 .180 .360 8139, 8145 .180 .360 .167 .717 8144
