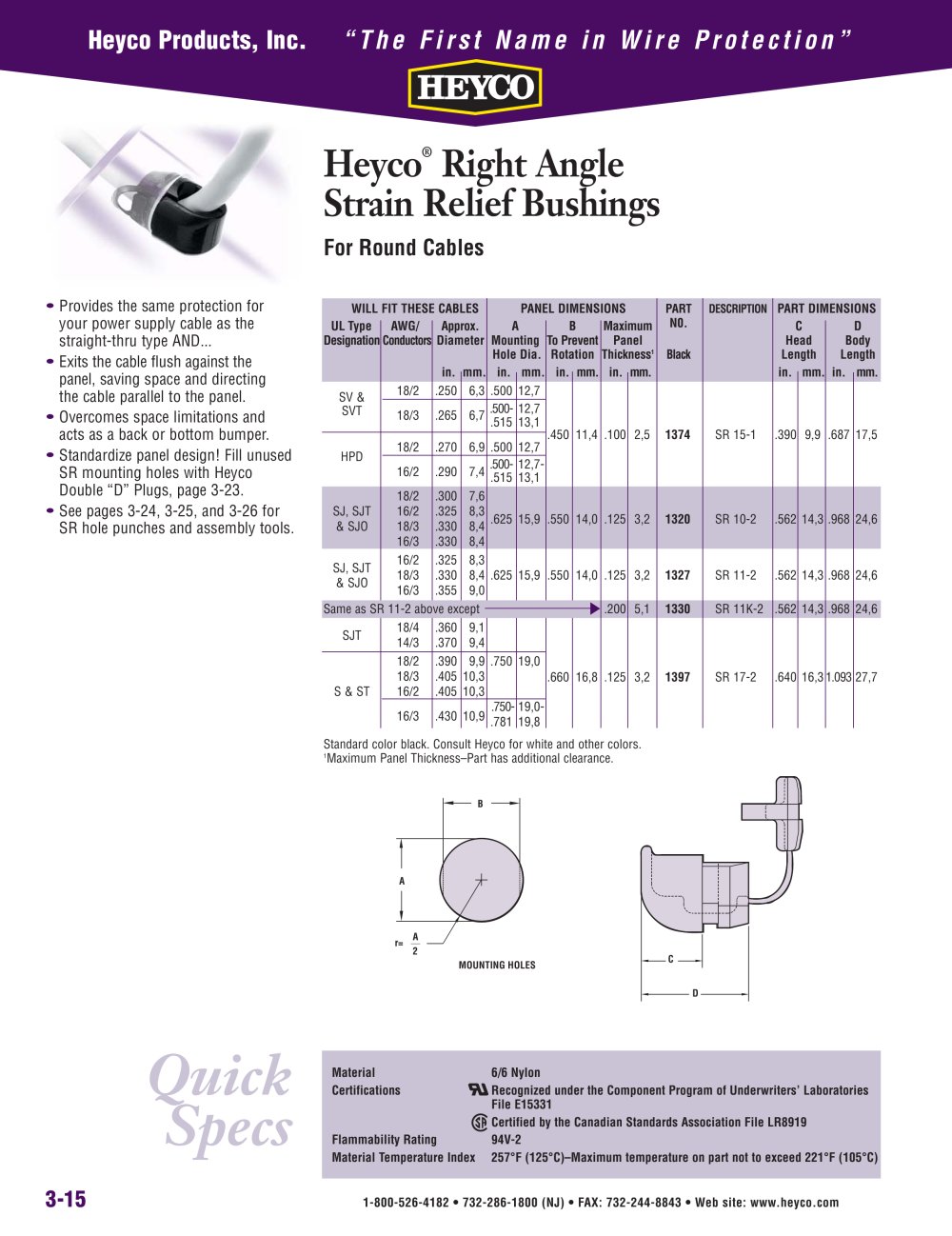

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 3-15 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com Quick Specs Heyco® Right Angle Strain Relief Bushings For Round Cables • Provides the same protection for your power supply cable as the straight-thru type AND... • Exits the cable flush against the panel, saving space and directing the cable parallel to the panel. • Overcomes space limitations and acts as a back or bottom bumper. • Standardize panel design! Fill unused SR mounting holes with Heyco Double “D” Plugs, page 3-23. • See pages 3-24, 3-25, and 3-26 for SR hole punches and assembly tools. Material 6/6 Nylon Certifications Recognized under the Component Program of Underwriters’ Laboratories File E15331 Certified by the Canadian Standards Association File LR8919 Flammability Rating 94V-2 Material Temperature Index 257°F (125°C)–Maximum temperature on part not to exceed 221°F (105°C) MOUNTING HOLES r= A B A 2 C D WILL FIT THESE CABLES PANEL DIMENSIONS PART DESCRIPTION PART DIMENSIONS UL Type AWG/ Approx. A B Maximum N0. C D Designation Conductors Diameter Mounting To Prevent Panel Head Body Hole Dia. Rotation Thickness1 Black Length Length in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. SV & 18/2 .250 6,3 .500 12,7 SVT 18/3 .265 6,7 .500- 12,7 .515 13,1 .450 11,4 .100 2,5 1374 SR 15-1 .390 9,9 .687 17,5 HPD 18/2 .270 6,9 .500 12,7 16/2 .290 7,4 .500- 12,7- .515 13,1 18/2 .300 7,6 SJ, SJT 16/2 .325 8,3 & SJO 18/3 .330 8,4 .625 15,9 .550 14,0 .125 3,2 1320 SR 10-2 .562 14,3 .968 24,6 16/3 .330 8,4 SJ, SJT 16/2 .325 8,3 & SJO 18/3 .330 8,4 .625 15,9 .550 14,0 .125 3,2 1327 SR 11-2 .562 14,3 .968 24,6 16/3 .355 9,0 Same as SR 11-2 above except .200 5,1 1330 SR 11K-2 .562 14,3 .968 24,6 SJT 18/4 .360 9,1 14/3 .370 9,4 18/2 .390 9,9 .750 19,0 18/3 .405 10,3 .660 16,8 .125 3,2 1397 SR 17-2 .640 16,3 1.093 27,7 S & ST 16/2 .405 10,3 16/3 .430 10,9 .750- 19,0- .781 19,8 Standard color black. Consult Heyco for white and other colors. 1Maximum Panel Thickness–Part has additional clearance.
