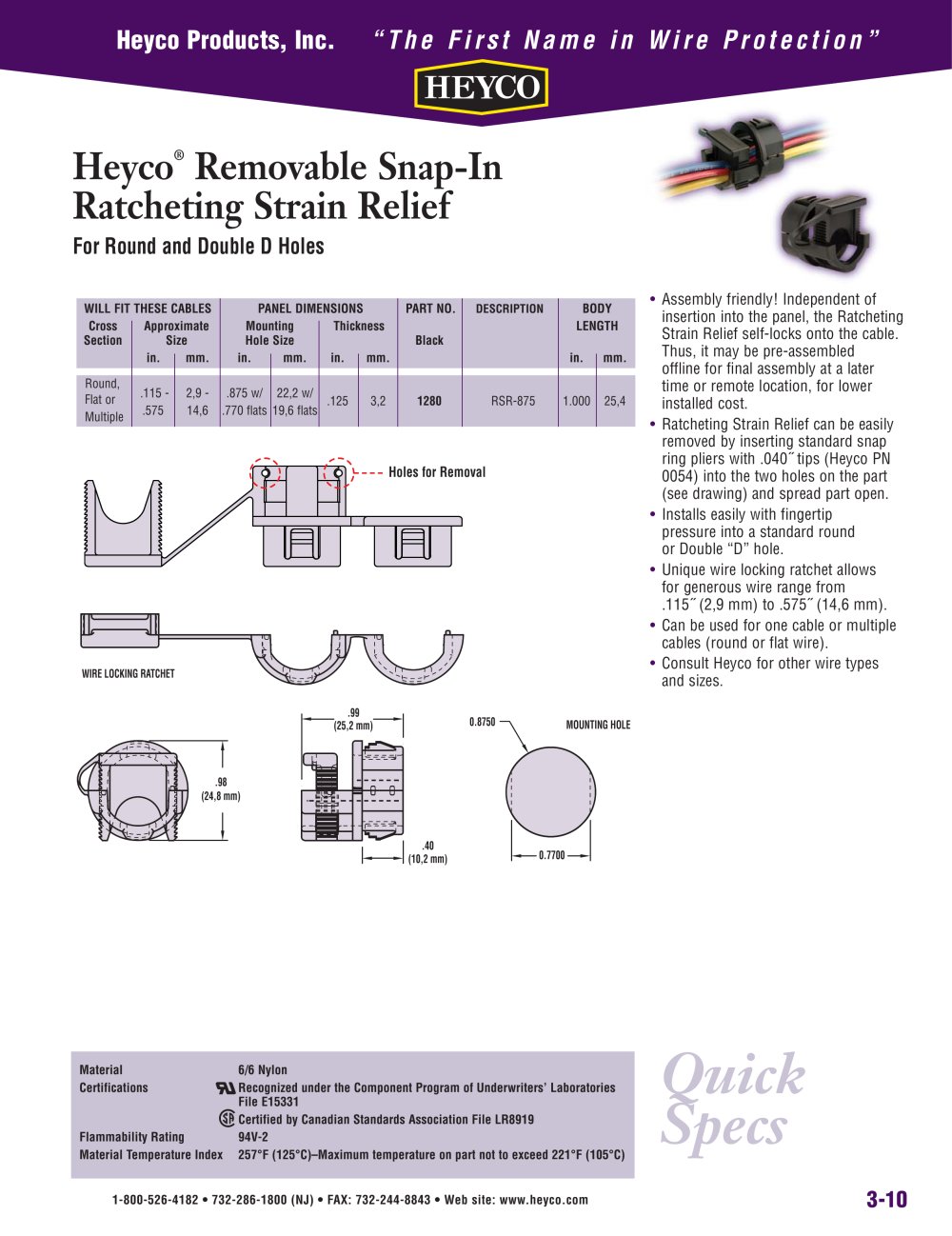

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 3-10 Quick Specs Material 6/6 Nylon Certifications Recognized under the Component Program of Underwriters’ Laboratories File E15331 Certified by Canadian Standards Association File LR8919 Flammability Rating 94V-2 Material Temperature Index 257°F (125°C)–Maximum temperature on part not to exceed 221°F (105°C) Heyco® Removable Snap-In Ratcheting Strain Relief For Round and Double D Holes • Assembly friendly! Independent of insertion into the panel, the Ratcheting Strain Relief self-locks onto the cable. Thus, it may be pre-assembled offline for final assembly at a later time or remote location, for lower installed cost. • Ratcheting Strain Relief can be easily removed by inserting standard snap ring pliers with .040½ tips (Heyco PN 0054) into the two holes on the part (see drawing) and spread part open. • Installs easily with fingertip pressure into a standard round or Double “D” hole. • Unique wire locking ratchet allows for generous wire range from .115½ (2,9 mm) to .575½ (14,6 mm). • Can be used for one cable or multiple cables (round or flat wire). • Consult Heyco for other wire types and sizes. WILL FIT THESE CABLES PANEL DIMENSIONS PART NO. DESCRIPTION BODY Cross Approximate Mounting Thickness LENGTH Section Size Hole Size Black in. mm. in. mm. in. mm. in. mm. Round, Flat or .115 - 2,9 - .875 w/ 22,2 w/ .575 14,6 .770 flats 19,6 flats .125 3,2 1280 RSR-875 1.000 25,4 Multiple .98 (24,8 mm) .99 (25,2 mm) .40 (10,2 mm) 0.8750 MOUNTING HOLE 0.7700 WIRE LOCKING RATCHET Holes for Removal
