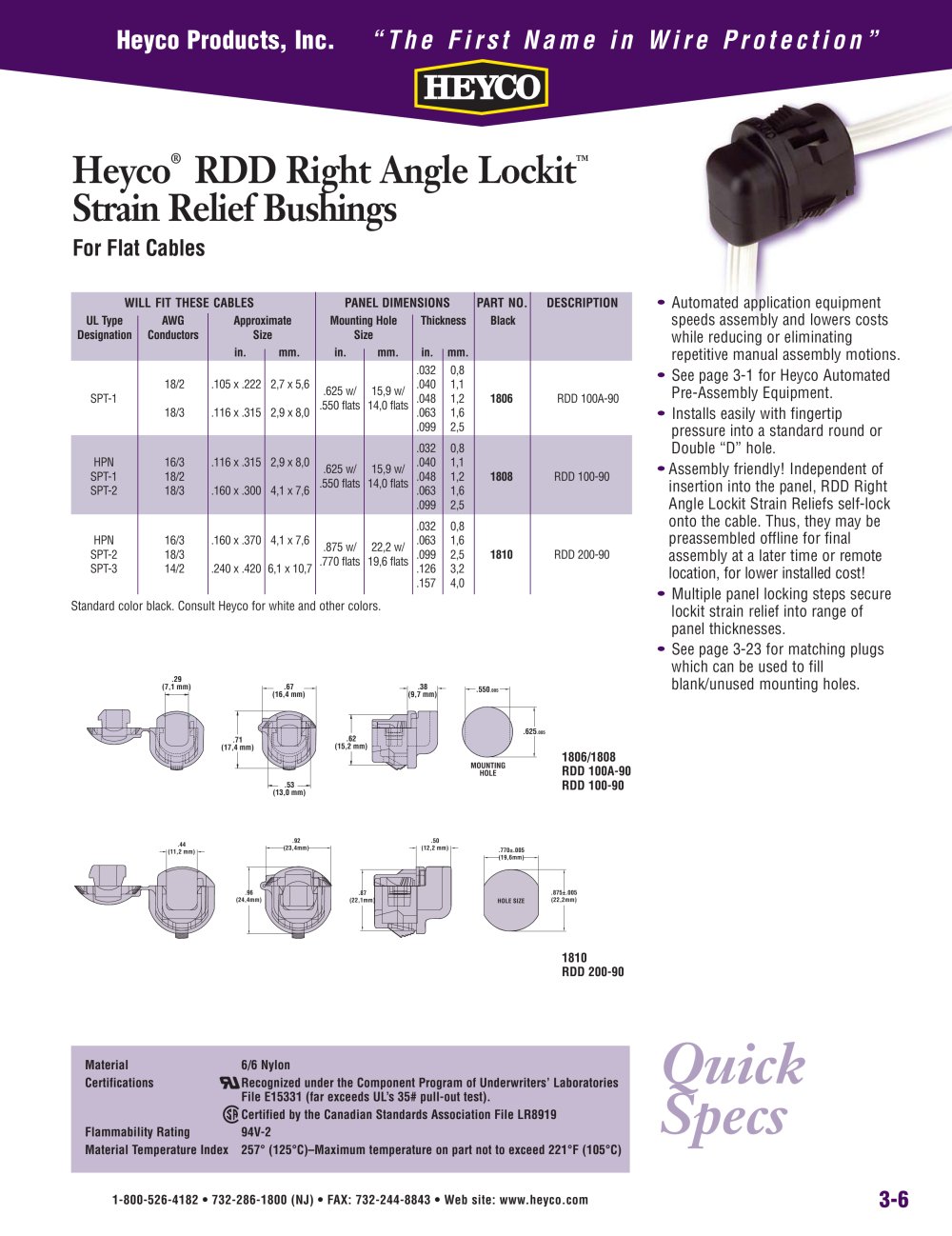

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 3-6 MOUNTING HOLE .625.005 .550.005 .29 (7,1 mm) .71 (17,4 mm) .67 (16,4 mm) .53 (13,0 mm) .62 (15,2 mm) .38 (9,7 mm) 1812 Quick Specs Heyco® RDD Right Angle Lockit™ Strain Relief Bushings For Flat Cables • Automated application equipment speeds assembly and lowers costs while reducing or eliminating repetitive manual assembly motions. • See page 3-1 for Heyco Automated Pre-Assembly Equipment. • Installs easily with fingertip pressure into a standard round or Double “D” hole. • Assembly friendly! Independent of insertion into the panel, RDD Right Angle Lockit Strain Reliefs self-lock onto the cable. Thus, they may be preassembled offline for final assembly at a later time or remote location, for lower installed cost! • Multiple panel locking steps secure lockit strain relief into range of panel thicknesses. • See page 3-23 for matching plugs which can be used to fill blank/unused mounting holes. WILL FIT THESE CABLES PANEL DIMENSIONS PART NO. DESCRIPTION UL Type AWG Approximate Mounting Hole Thickness Black Designation Conductors Size Size in. mm. in. mm. in. mm. .032 0,8 18/2 .105 x .222 2,7 x 5,6 .040 1,1 SPT-1 .625 w/ 15,9 w/ .048 1,2 1806 RDD 100A-90 18/3 .116 x .315 2,9 x 8,0 .550 flats 14,0 flats .063 1,6 .099 2,5 .032 0,8 HPN 16/3 .116 x .315 2,9 x 8,0 .040 1,1 SPT-1 18/2 .625 w/ 15,9 w/ .048 1,2 1808 RDD 100-90 SPT-2 18/3 .160 x .300 4,1 x 7,6 .550 flats 14,0 flats .063 1,6 .099 2,5 .032 0,8 HPN 16/3 .160 x .370 4,1 x 7,6 .063 1,6 SPT-2 18/3 .875 w/ 22,2 w/ .099 2,5 1810 RDD 200-90 SPT-3 14/2 .240 x .420 6,1 x 10,7 .770 flats 19,6 flats .126 3,2 .157 4,0 Standard color black. Consult Heyco for white and other colors. 1806/1808 RDD 100A-90 RDD 100-90 Material 6/6 Nylon Certifications Recognized under the Component Program of Underwriters’ Laboratories File E15331 (far exceeds UL’s 35# pull-out test). Certified by the Canadian Standards Association File LR8919 Flammability Rating 94V-2 Material Temperature Index 257° (125°C)–Maximum temperature on part not to exceed 221°F (105°C) .44 (11,2 mm) .87 (22,1mm) .96 (24,4mm) .92 (23,4mm) .875±.005 (22,2mm) .770±.005 (19,6mm) HOLE SIZE .50 (12,2 mm) 1810 RDD 200-90
