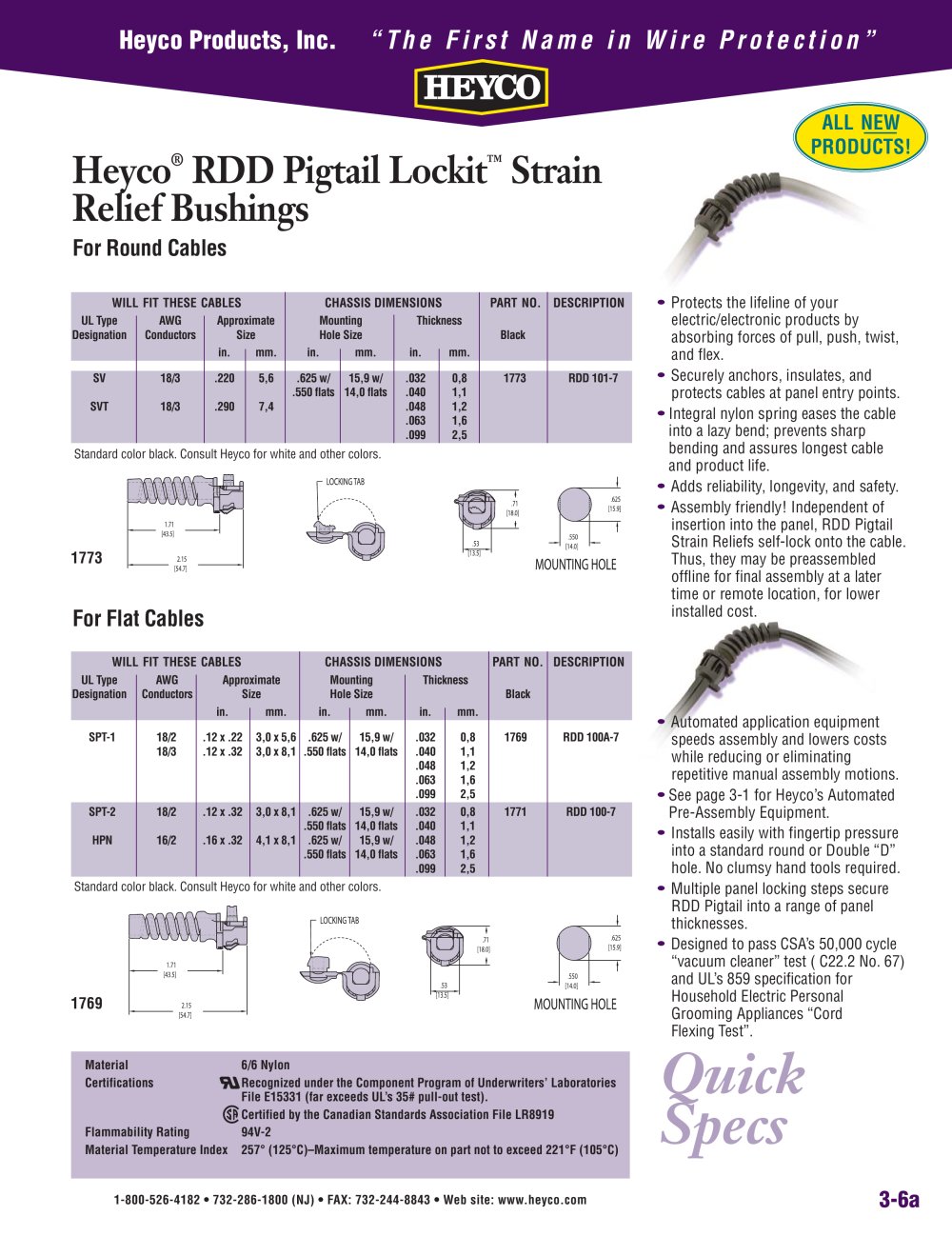

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 3-6a Quick Specs Heyco® RDD Pigtail Lockit™ Strain Relief Bushings For Round Cables • Protects the lifeline of your electric/electronic products by absorbing forces of pull, push, twist, and flex. • Securely anchors, insulates, and protects cables at panel entry points. • Integral nylon spring eases the cable into a lazy bend; prevents sharp bending and assures longest cable and product life. • Adds reliability, longevity, and safety. • Assembly friendly! Independent of insertion into the panel, RDD Pigtail Strain Reliefs self-lock onto the cable. Thus, they may be preassembled offline for final assembly at a later time or remote location, for lower installed cost. WILL FIT THESE CABLES CHASSIS DIMENSIONS PART NO. DESCRIPTION UL Type AWG Approximate Mounting Thickness Designation Conductors Size Hole Size Black in. mm. in. mm. in. mm. SV 18/3 .220 5,6 .625 w/ 15,9 w/ .032 0,8 1773 RDD 101-7 .550 flats 14,0 flats .040 1,1 SVT 18/3 .290 7,4 .048 1,2 .063 1,6 .099 2,5 Material 6/6 Nylon Certifications Recognized under the Component Program of Underwriters’ Laboratories File E15331 (far exceeds UL’s 35# pull-out test). Certified by the Canadian Standards Association File LR8919 Flammability Rating 94V-2 Material Temperature Index 257° (125°C)–Maximum temperature on part not to exceed 221°F (105°C) Standard color black. Consult Heyco for white and other colors. • Automated application equipment speeds assembly and lowers costs while reducing or eliminating repetitive manual assembly motions. • See page 3-1 for Heyco’s Automated Pre-Assembly Equipment. • Installs easily with fingertip pressure into a standard round or Double “D” hole. No clumsy hand tools required. • Multiple panel locking steps secure RDD Pigtail into a range of panel thicknesses. • Designed to pass CSA’s 50,000 cycle “vacuum cleaner” test ( C22.2 No. 67) and UL’s 859 specification for Household Electric Personal Grooming Appliances “Cord Flexing Test”. For Flat Cables WILL FIT THESE CABLES CHASSIS DIMENSIONS PART NO. DESCRIPTION UL Type AWG Approximate Mounting Thickness Designation Conductors Size Hole Size Black in. mm. in. mm. in. mm. SPT-1 18/2 .12 x .22 3,0 x 5,6 .625 w/ 15,9 w/ .032 0,8 1769 RDD 100A-7 18/3 .12 x .32 3,0 x 8,1 .550 flats 14,0 flats .040 1,1 .048 1,2 .063 1,6 .099 2,5 SPT-2 18/2 .12 x .32 3,0 x 8,1 .625 w/ 15,9 w/ .032 0,8 1771 RDD 100-7 .550 flats 14,0 flats .040 1,1 HPN 16/2 .16 x .32 4,1 x 8,1 .625 w/ 15,9 w/ .048 1,2 .550 flats 14,0 flats .063 1,6 .099 2,5 Standard color black. Consult Heyco for white and other colors. 1773 1769 ALL NEW PRODUCTS!
