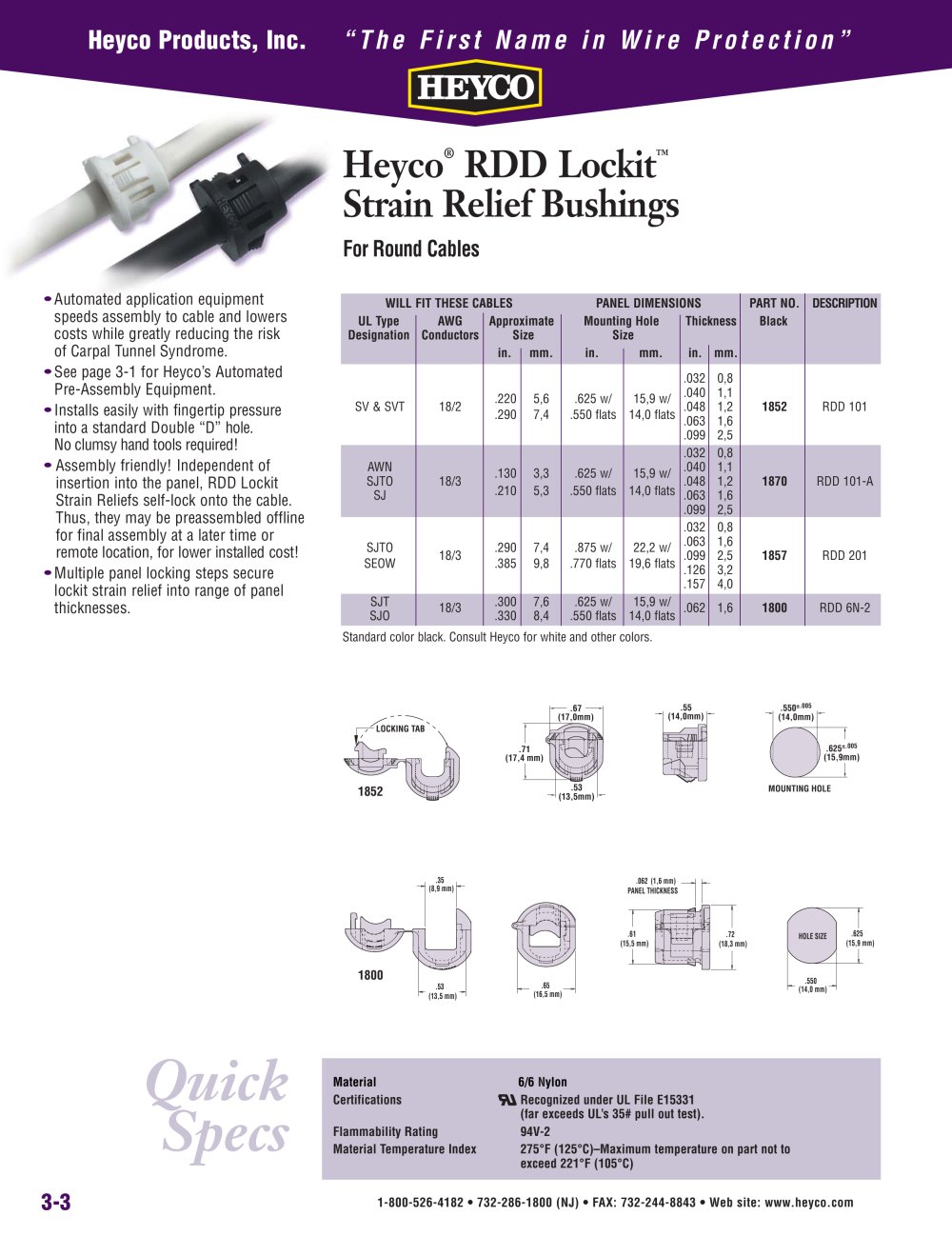

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 3-3 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com Quick Specs Heyco® RDD Lockit™ Strain Relief Bushings For Round Cables WILL FIT THESE CABLES PANEL DIMENSIONS PART NO. DESCRIPTION UL Type AWG Approximate Mounting Hole Thickness Black Designation Conductors Size Size in. mm. in. mm. in. mm. .032 0,8 .220 5,6 .625 w/ 15,9 w/ .040 1,1 SV & SVT 18/2 .048 1,2 1852 RDD 101 .290 7,4 .550 flats 14,0 flats .063 1,6 .099 2,5 .032 0,8 AWN .130 3,3 .625 w/ 15,9 w/ .040 1,1 SJTO 18/3 .048 1,2 1870 RDD 101-A SJ .210 5,3 .550 flats 14,0 flats .063 1,6 .099 2,5 .032 0,8 SJTO .290 7,4 .875 w/ 22,2 w/ .063 1,6 18/3 .099 2,5 1857 RDD 201 SEOW .385 9,8 .770 flats 19,6 flats .126 3,2 .157 4,0 SJT 18/3 .300 7,6 .625 w/ 15,9 w/ .062 1,6 1800 RDD 6N-2 SJO .330 8,4 .550 flats 14,0 flats Standard color black. Consult Heyco for white and other colors. • Automated application equipment speeds assembly to cable and lowers costs while greatly reducing the risk of Carpal Tunnel Syndrome. • See page 3-1 for Heyco’s Automated Pre-Assembly Equipment. • Installs easily with fingertip pressure into a standard Double “D” hole. No clumsy hand tools required! • Assembly friendly! Independent of insertion into the panel, RDD Lockit Strain Reliefs self-lock onto the cable. Thus, they may be preassembled offline for final assembly at a later time or remote location, for lower installed cost! • Multiple panel locking steps secure lockit strain relief into range of panel thicknesses. Material 6/6 Nylon Certifications Recognized under UL File E15331 (far exceeds UL’s 35# pull out test). Flammability Rating 94V-2 Material Temperature Index 275°F (125°C)–Maximum temperature on part not to exceed 221°F (105°C) MOUNTING HOLE .625±.005 (15,9mm) .550±.005 (14,0mm) .71 (17,4 mm) .55 (14,0mm) LOCKING TAB .67 (17,0mm) .53 1852 (13,5mm) 1800 (8,9 mm) .35 (13,5 mm) .53 .062 (1,6 mm) PANEL THICKNESS (15,5 mm) .61 (18,3 mm) .72 (16,5 mm) .65 HOLE SIZE (14,0 mm) .550 (15,9 mm) .625
