Heyco® Pre-Assembly Equipment - 11746 Heyco

®

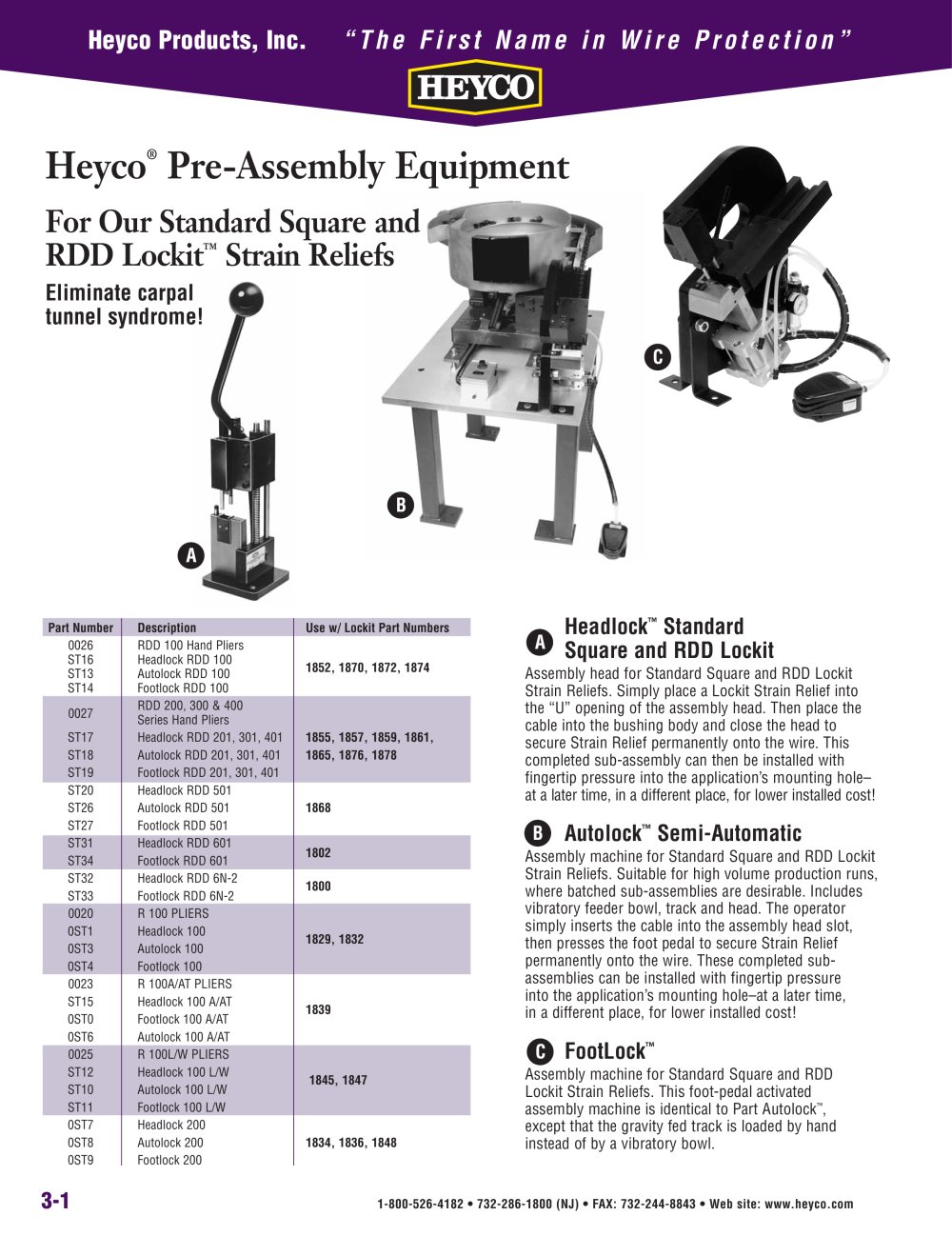

Pre-Assembly Equipment For Our Standard Square andRDD Lockit

™

Strain Reliefs

Eliminate carpal tunnel syndrome! C B A

Part NumberDescriptionUse w/ Lockit Part Numbers
™ 0026RDD 100 Hand Pliers ST16Headlock RDD 100

A Headlock StandardSquare and RDD Lockit

ST13Autolock RDD 100ST14Footlock RDD 1000027RDD 200, 300 & 400 Series Hand PliersST17Headlock RDD 201, 301, 401 1852, 1870, 1872, 1874

Assembly head for Standard Square and RDD LockitStrain Reliefs. Simply place a Lockit Strain Relief into the “U” opening of the assembly head. Then place the cable into the bushing body and close the head to secure Strain Relief permanently onto the wire. This completed sub-assembly can then be installed with fingertip pressure into the application’s mounting hole– at a later time, in a different place, for lower installed cost!

1802 ST32Headlock RDD 6N-2 1855, 1857, 1859, 1861, 1868 1800 ST18Autolock RDD 201, 301, 401 ST27Footlock RDD 501 ST31Headlock RDD 601 ST34Footlock RDD 601 ST33Footlock RDD 6N-20020R 100 PLIERS0ST1Headlock 100 1865, 1876, 1878 ST19Footlock RDD 201, 301, 401 ST20Headlock RDD 501 ST26Autolock RDD 501 1829, 1832 0ST3Autolock 1000ST4Footlock 1000023R 100A/AT PLIERSST15Headlock 100 A/AT

B Autolock

™

Semi-Automatic

1839

Assembly machine for Standard Square and RDD Lockit Strain Reliefs. Suitable for high volume production runs, where batched sub-assemblies are desirable. Includes vibratory feeder bowl, track and head. The operator simply inserts the cable into the assembly head slot, then presses the foot pedal to secure Strain Relief permanently onto the wire. These completed sub- assemblies can be installed with fingertip pressure into the application’s mounting hole–at a later time, in a different place, for lower installed cost!

0ST0Footlock 100 A/AT0ST6Autolock 100 A/AT0025R 100L/W PLIERSST12Headlock 100 L/W 1834, 1836, 1848 1845, 1847 ST10Autolock 100 L/WST11Footlock 100 L/W 0ST7Headlock 200 0ST8Autolock 200 0ST9Footlock 200

C FootLock

™

Assembly machine for Standard Square and RDD Lockit Strain Reliefs. This foot-pedal activated assembly machine is identical to Part Autolock

™

, except that the gravity fed track is loaded by hand instead of by a vibratory bowl.

3-1
