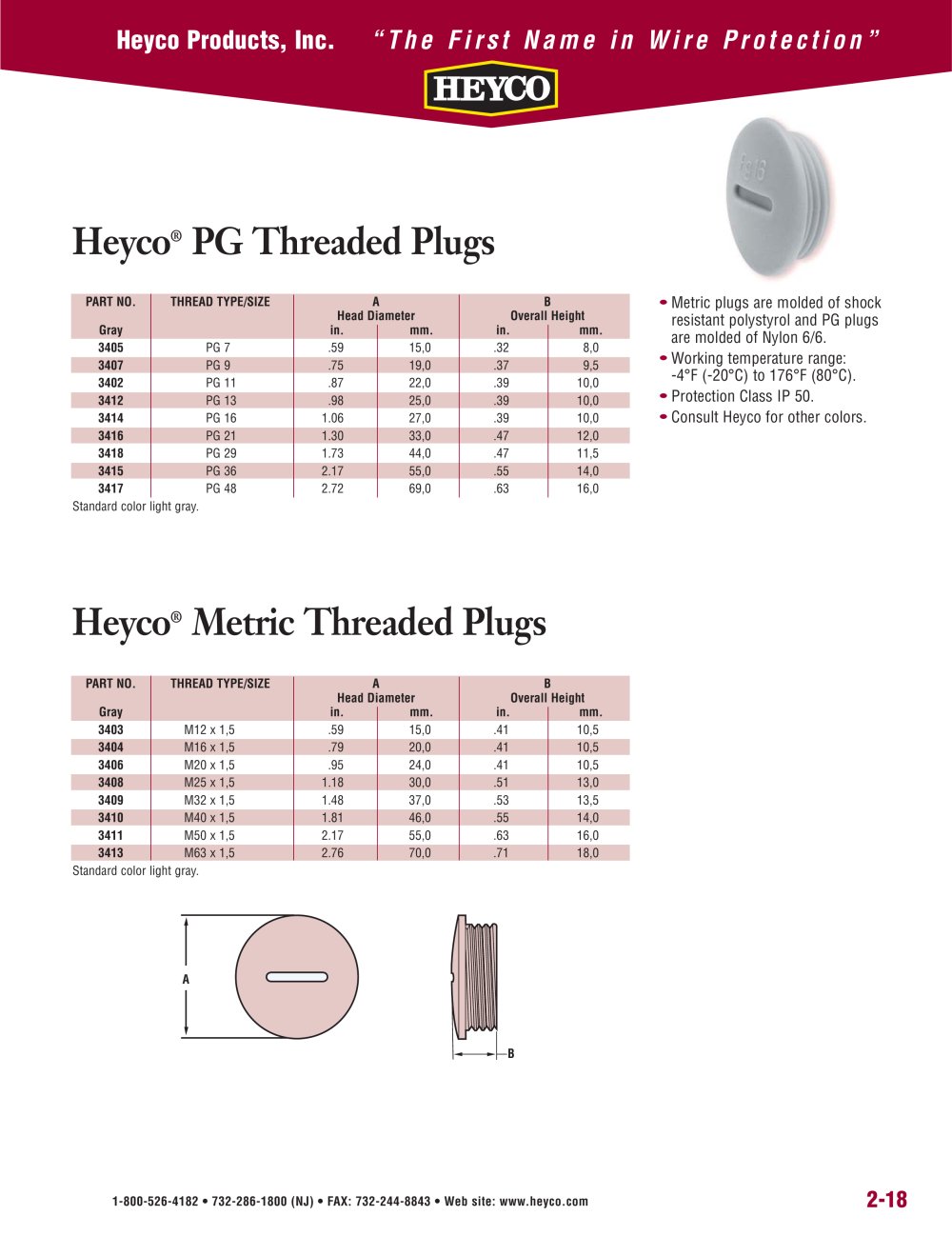

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 2-18 Heyco® PG Threaded Plugs • Metric plugs are molded of shock resistant polystyrol and PG plugs are molded of Nylon 6/6. • Working temperature range: -4°F (-20°C) to 176°F (80°C). • Protection Class IP 50. • Consult Heyco for other colors. PART NO. THREAD TYPE/SIZE A B Head Diameter Overall Height Gray in. mm. in. mm. 3405 PG 7 .59 15,0 .32 8,0 3407 PG 9 .75 19,0 .37 9,5 3402 PG 11 .87 22,0 .39 10,0 3412 PG 13 .98 25,0 .39 10,0 3414 PG 16 1.06 27,0 .39 10,0 3416 PG 21 1.30 33,0 .47 12,0 3418 PG 29 1.73 44,0 .47 11,5 3415 PG 36 2.17 55,0 .55 14,0 3417 PG 48 2.72 69,0 .63 16,0 Standard color light gray. Heyco® Metric Threaded Plugs PART NO. THREAD TYPE/SIZE A B Head Diameter Overall Height Gray in. mm. in. mm. 3403 M12 x 1,5 .59 15,0 .41 10,5 3404 M16 x 1,5 .79 20,0 .41 10,5 3406 M20 x 1,5 .95 24,0 .41 10,5 3408 M25 x 1,5 1.18 30,0 .51 13,0 3409 M32 x 1,5 1.48 37,0 .53 13,5 3410 M40 x 1,5 1.81 46,0 .55 14,0 3411 M50 x 1,5 2.17 55,0 .63 16,0 3413 M63 x 1,5 2.76 70,0 .71 18,0 Standard color light gray. A B
