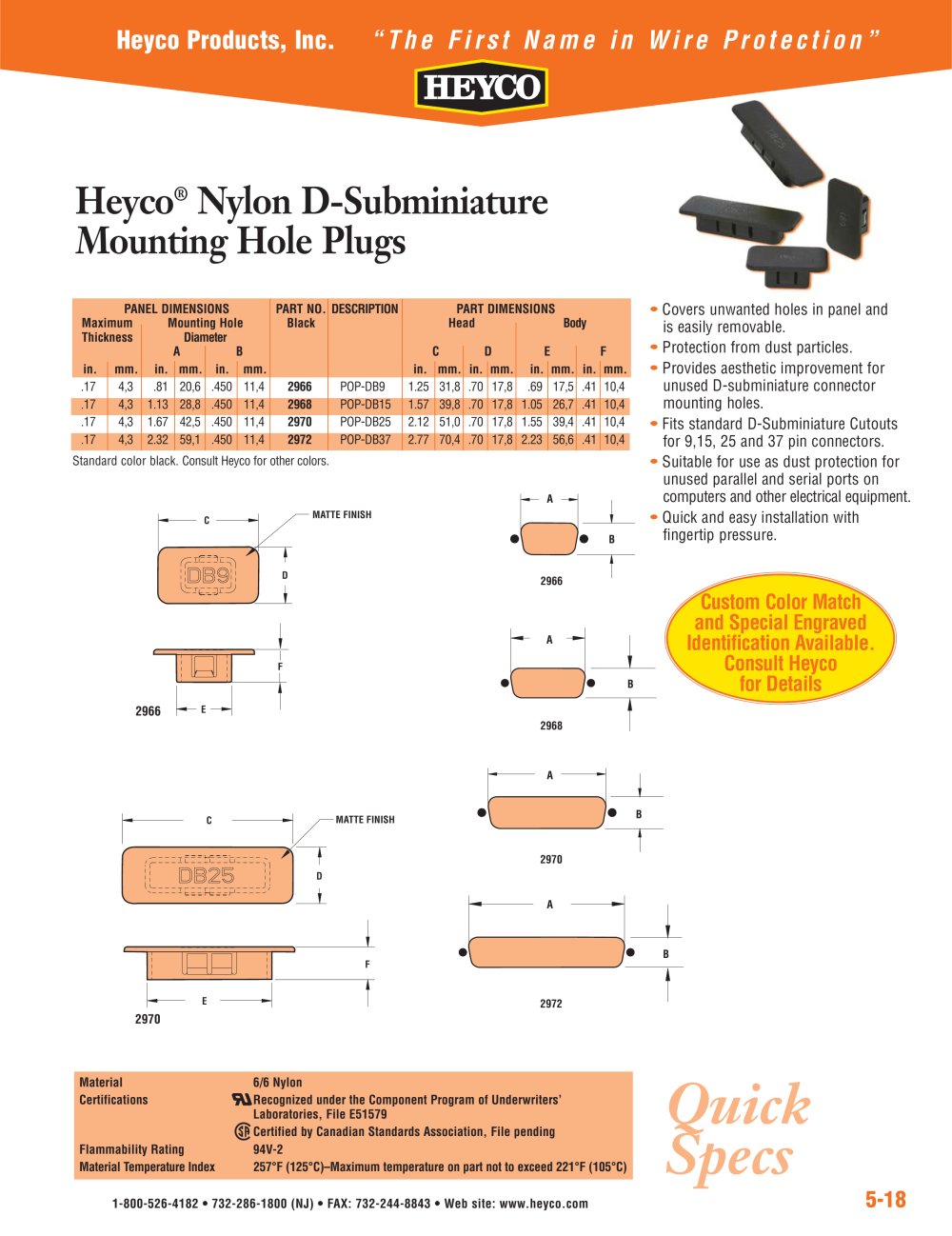

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 5-18 PANEL DIMENSIONS PART NO. DESCRIPTION PART DIMENSIONS Maximum Mounting Hole Black Head Body Thickness Diameter A B C D E F in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. .17 4,3 .81 20,6 .450 11,4 2966 POP-DB9 1.25 31,8 .70 17,8 .69 17,5 .41 10,4 .17 4,3 1.13 28,8 .450 11,4 2968 POP-DB15 1.57 39,8 .70 17,8 1.05 26,7 .41 10,4 .17 4,3 1.67 42,5 .450 11,4 2970 POP-DB25 2.12 51,0 .70 17,8 1.55 39,4 .41 10,4 .17 4,3 2.32 59,1 .450 11,4 2972 POP-DB37 2.77 70,4 .70 17,8 2.23 56,6 .41 10,4 Standard color black. Consult Heyco for other colors. Heyco® Nylon D-Subminiature Mounting Hole Plugs • Covers unwanted holes in panel and is easily removable. • Protection from dust particles. • Provides aesthetic improvement for unused D-subminiature connector mounting holes. • Fits standard D-Subminiature Cutouts for 9,15, 25 and 37 pin connectors. • Suitable for use as dust protection for unused parallel and serial ports on computers and other electrical equipment. • Quick and easy installation with fingertip pressure. Custom Color Match and Special Engraved Identification Available. Consult Heyco for Details B A B A 2972 2970 B A 2968 A B 2966 C D F E MATTE FINISH Material 6/6 Nylon Certifications Recognized under the Component Program of Underwriters’ Laboratories, File E51579 Certified by Canadian Standards Association, File pending Flammability Rating 94V-2 Material Temperature Index 257°F (125°C)–Maximum temperature on part not to exceed 221°F (105°C) Quick Specs C D E F MATTE FINISH 2966 2970
