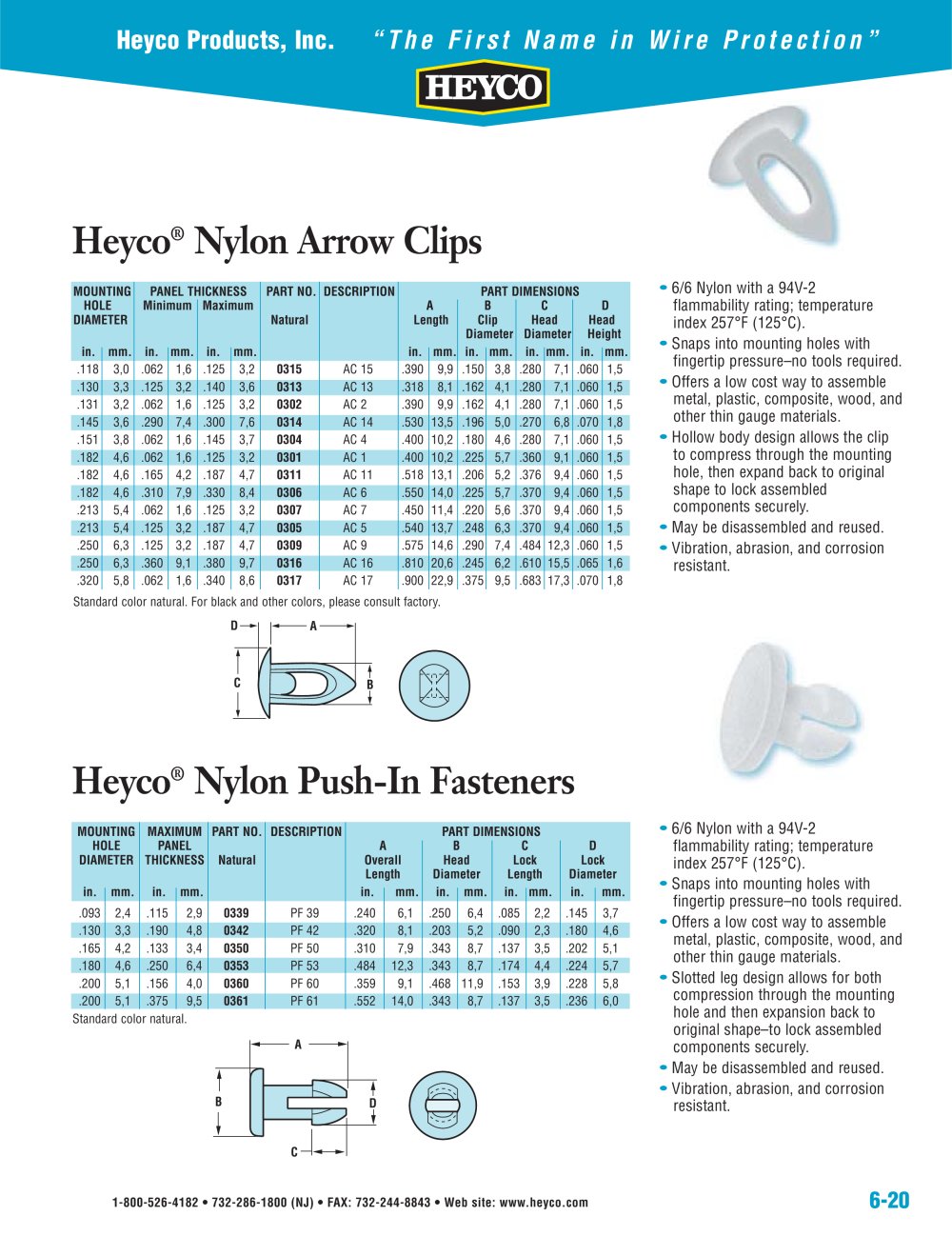

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 6-20 MOUNTING PANEL THICKNESS PART NO. DESCRIPTION PART DIMENSIONS HOLE Minimum Maximum A B C D DIAMETER Natural Length Clip Head Head Diameter Diameter Height in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. .118 3,0 .062 1,6 .125 3,2 0315 AC 15 .390 9,9 .150 3,8 .280 7,1 .060 1,5 .130 3,3 .125 3,2 .140 3,6 0313 AC 13 .318 8,1 .162 4,1 .280 7,1 .060 1,5 .131 3,2 .062 1,6 .125 3,2 0302 AC 2 .390 9,9 .162 4,1 .280 7,1 .060 1,5 .145 3,6 .290 7,4 .300 7,6 0314 AC 14 .530 13,5 .196 5,0 .270 6,8 .070 1,8 .151 3,8 .062 1,6 .145 3,7 0304 AC 4 .400 10,2 .180 4,6 .280 7,1 .060 1,5 .182 4,6 .062 1,6 .125 3,2 0301 AC 1 .400 10,2 .225 5,7 .360 9,1 .060 1,5 .182 4,6 .165 4,2 .187 4,7 0311 AC 11 .518 13,1 .206 5,2 .376 9,4 .060 1,5 .182 4,6 .310 7,9 .330 8,4 0306 AC 6 .550 14,0 .225 5,7 .370 9,4 .060 1,5 .213 5,4 .062 1,6 .125 3,2 0307 AC 7 .450 11,4 .220 5,6 .370 9,4 .060 1,5 .213 5,4 .125 3,2 .187 4,7 0305 AC 5 .540 13,7 .248 6,3 .370 9,4 .060 1,5 .250 6,3 .125 3,2 .187 4,7 0309 AC 9 .575 14,6 .290 7,4 .484 12,3 .060 1,5 .250 6,3 .360 9,1 .380 9,7 0316 AC 16 .810 20,6 .245 6,2 .610 15,5 .065 1,6 .320 5,8 .062 1,6 .340 8,6 0317 AC 17 .900 22,9 .375 9,5 .683 17,3 .070 1,8 Standard color natural. For black and other colors, please consult factory. Heyco® Nylon Arrow Clips • 6/6 Nylon with a 94V-2 flammability rating; temperature index 257°F (125°C). • Snaps into mounting holes with fingertip pressure–no tools required. • Offers a low cost way to assemble metal, plastic, composite, wood, and other thin gauge materials. • Hollow body design allows the clip to compress through the mounting hole, then expand back to original shape to lock assembled components securely. • May be disassembled and reused. • Vibration, abrasion, and corrosion resistant. MOUNTING MAXIMUM PART NO. DESCRIPTION PART DIMENSIONS HOLE PANEL A B C D DIAMETER THICKNESS Natural Overall Head Lock Lock Length Diameter Length Diameter in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. .093 2,4 .115 2,9 0339 PF 39 .240 6,1 .250 6,4 .085 2,2 .145 3,7 .130 3,3 .190 4,8 0342 PF 42 .320 8,1 .203 5,2 .090 2,3 .180 4,6 .165 4,2 .133 3,4 0350 PF 50 .310 7,9 .343 8,7 .137 3,5 .202 5,1 .180 4,6 .250 6,4 0353 PF 53 .484 12,3 .343 8,7 .174 4,4 .224 5,7 .200 5,1 .156 4,0 0360 PF 60 .359 9,1 .468 11,9 .153 3,9 .228 5,8 .200 5,1 .375 9,5 0361 PF 61 .552 14,0 .343 8,7 .137 3,5 .236 6,0 Standard color natural. Heyco® Nylon Push-In Fasteners • 6/6 Nylon with a 94V-2 flammability rating; temperature index 257°F (125°C). • Snaps into mounting holes with fingertip pressure–no tools required. • Offers a low cost way to assemble metal, plastic, composite, wood, and other thin gauge materials. • Slotted leg design allows for both compression through the mounting hole and then expansion back to original shape–to lock assembled components securely. • May be disassembled and reused. • Vibration, abrasion, and corrosion resistant. D A C B B A D C
