Heyco® Metric Snap Bushings
1Pages

{{requestButtons}}

Catalog excerpts

Heyco® Metric Snap Bushings - 1

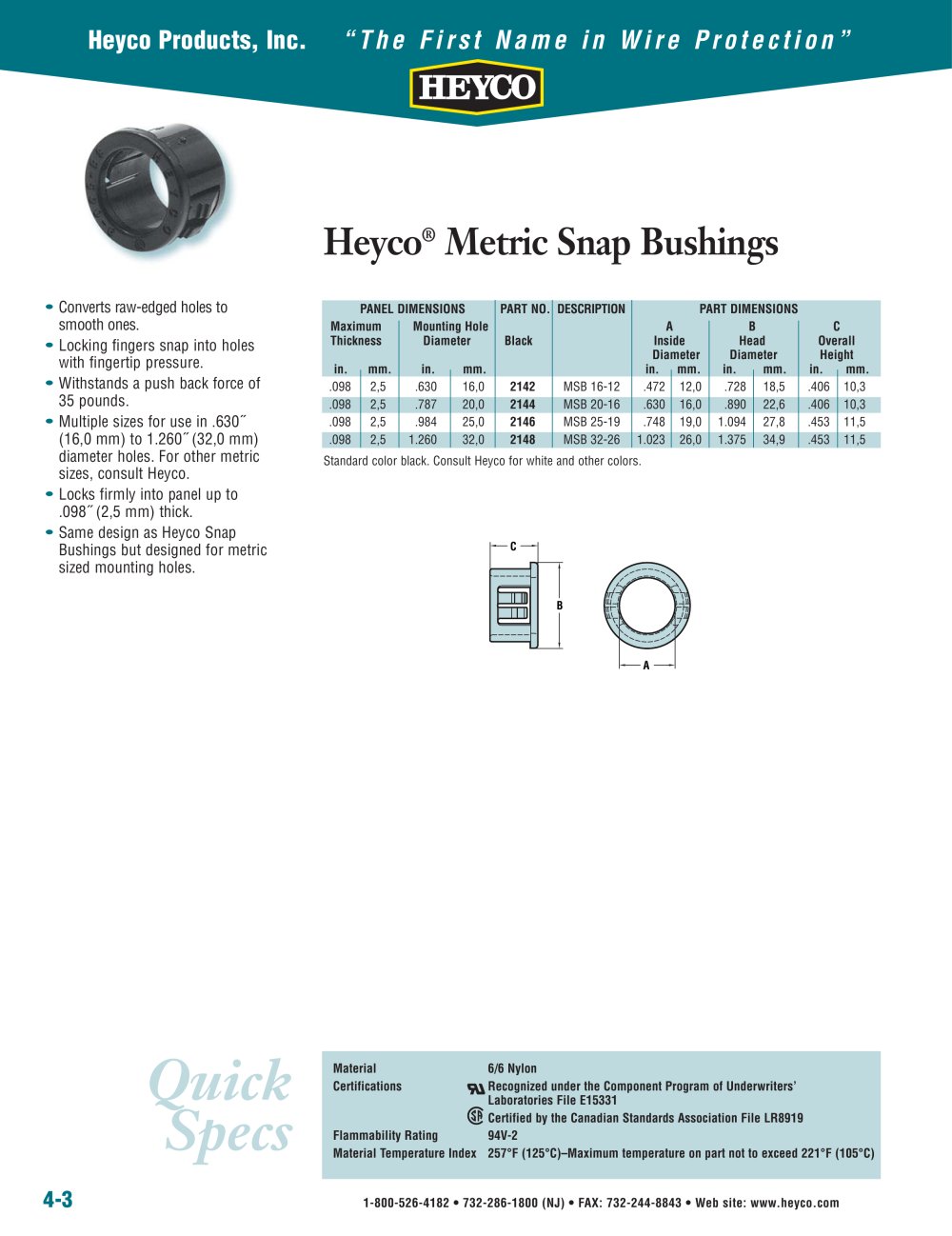

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 4-3 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com Quick Specs Heyco® Metric Snap Bushings A C B PANEL DIMENSIONS PART NO. DESCRIPTION PART DIMENSIONS Maximum Mounting Hole A B C Thickness Diameter Black Inside Head Overall Diameter Diameter Height in. mm. in. mm. in. mm. in. mm. in. mm. .098 2,5 .630 16,0 2142 MSB 16-12 .472 12,0 .728 18,5 .406 10,3 .098 2,5 .787 20,0 2144 MSB 20-16 .630 16,0 .890 22,6 .406 10,3 .098 2,5 .984 25,0 2146 MSB 25-19 .748 19,0 1.094 27,8 .453 11,5 .098 2,5 1.260 32,0 2148 MSB 32-26 1.023 26,0 1.375 34,9 .453 11,5 Standard color black. Consult Heyco for white and other colors. • Converts raw-edged holes to smooth ones. • Locking fingers snap into holes with fingertip pressure. • Withstands a push back force of 35 pounds. • Multiple sizes for use in .630½ (16,0 mm) to 1.260½ (32,0 mm) diameter holes. For other metric sizes, consult Heyco. • Locks firmly into panel up to .098½ (2,5 mm) thick. • Same design as Heyco Snap Bushings but designed for metric sized mounting holes. Material 6/6 Nylon Certifications Recognized under the Component Program of Underwriters’ Laboratories File E15331 Certified by the Canadian Standards Association File LR8919 Flammability Rating 94V-2 Material Temperature Index 257°F (125°C)–Maximum temperature on part not to exceed 221°F (105°C)
