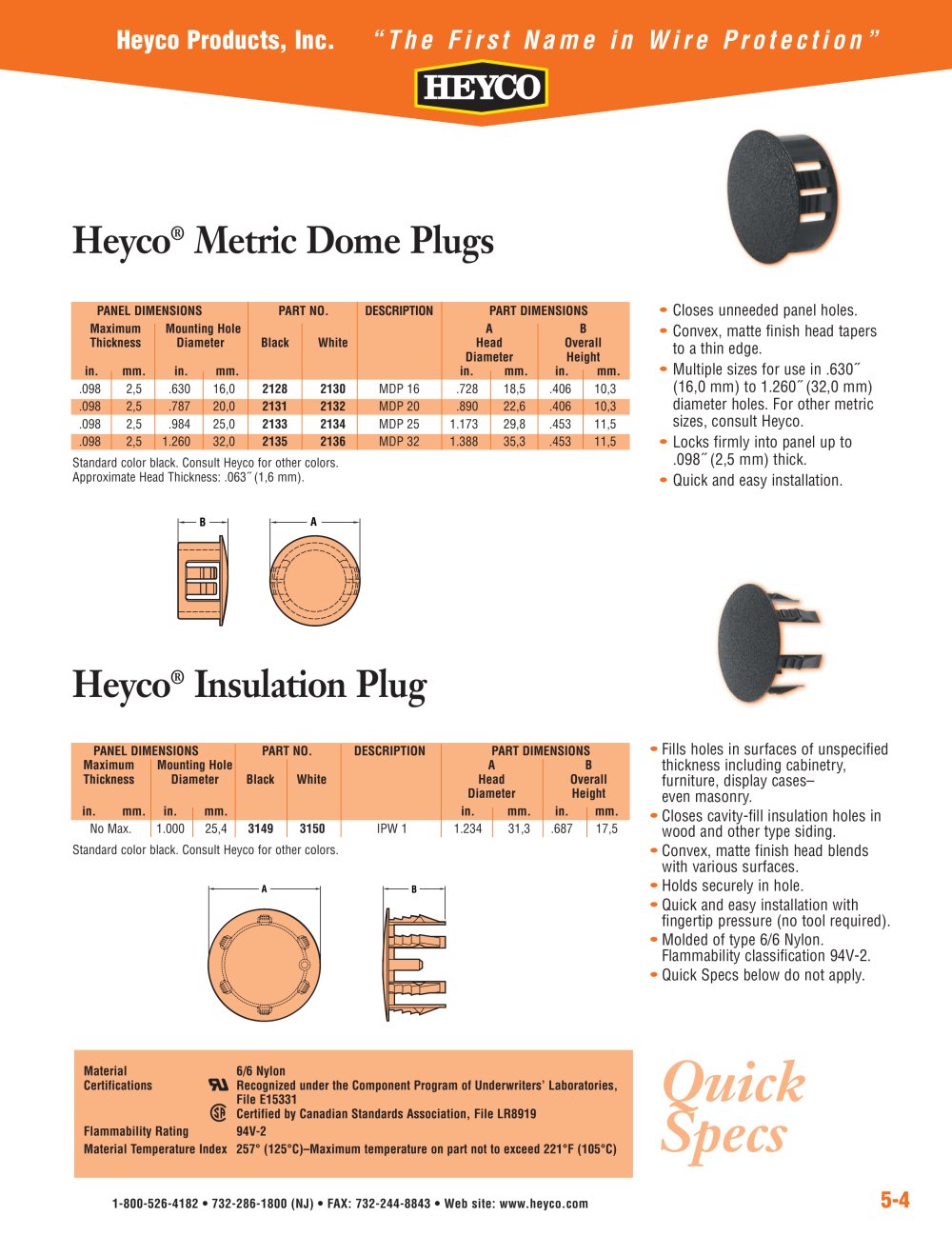

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 5-4 Quick Specs Heyco® Insulation Plug • Fills holes in surfaces of unspecified thickness including cabinetry, furniture, display cases– even masonry. • Closes cavity-fill insulation holes in wood and other type siding. • Convex, matte finish head blends with various surfaces. • Holds securely in hole. • Quick and easy installation with fingertip pressure (no tool required). • Molded of type 6/6 Nylon. Flammability classification 94V-2. • Quick Specs below do not apply. PANEL DIMENSIONS PART NO. DESCRIPTION PART DIMENSIONS Maximum Mounting Hole A B Thickness Diameter Black White Head Overall Diameter Height in. mm. in. mm. in. mm. in. mm. No Max. 1.000 25,4 3149 3150 IPW 1 1.234 31,3 .687 17,5 Standard color black. Consult Heyco for other colors. Material 6/6 Nylon Certifications Recognized under the Component Program of Underwriters’ Laboratories, File E15331 Certified by Canadian Standards Association, File LR8919 Flammability Rating 94V-2 Material Temperature Index 257° (125°C)–Maximum temperature on part not to exceed 221°F (105°C) A B Heyco® Metric Dome Plugs B A PANEL DIMENSIONS PART NO. DESCRIPTION PART DIMENSIONS Maximum Mounting Hole A B Thickness Diameter Black White Head Overall Diameter Height in. mm. in. mm. in. mm. in. mm. .098 2,5 .630 16,0 2128 2130 MDP 16 .728 18,5 .406 10,3 .098 2,5 .787 20,0 2131 2132 MDP 20 .890 22,6 .406 10,3 .098 2,5 .984 25,0 2133 2134 MDP 25 1.173 29,8 .453 11,5 .098 2,5 1.260 32,0 2135 2136 MDP 32 1.388 35,3 .453 11,5 Standard color black. Consult Heyco for other colors. Approximate Head Thickness: .063½ (1,6 mm). • Closes unneeded panel holes. • Convex, matte finish head tapers to a thin edge. • Multiple sizes for use in .630½ (16,0 mm) to 1.260½ (32,0 mm) diameter holes. For other metric sizes, consult Heyco. • Locks firmly into panel up to .098½ (2,5 mm) thick. • Quick and easy installation.
