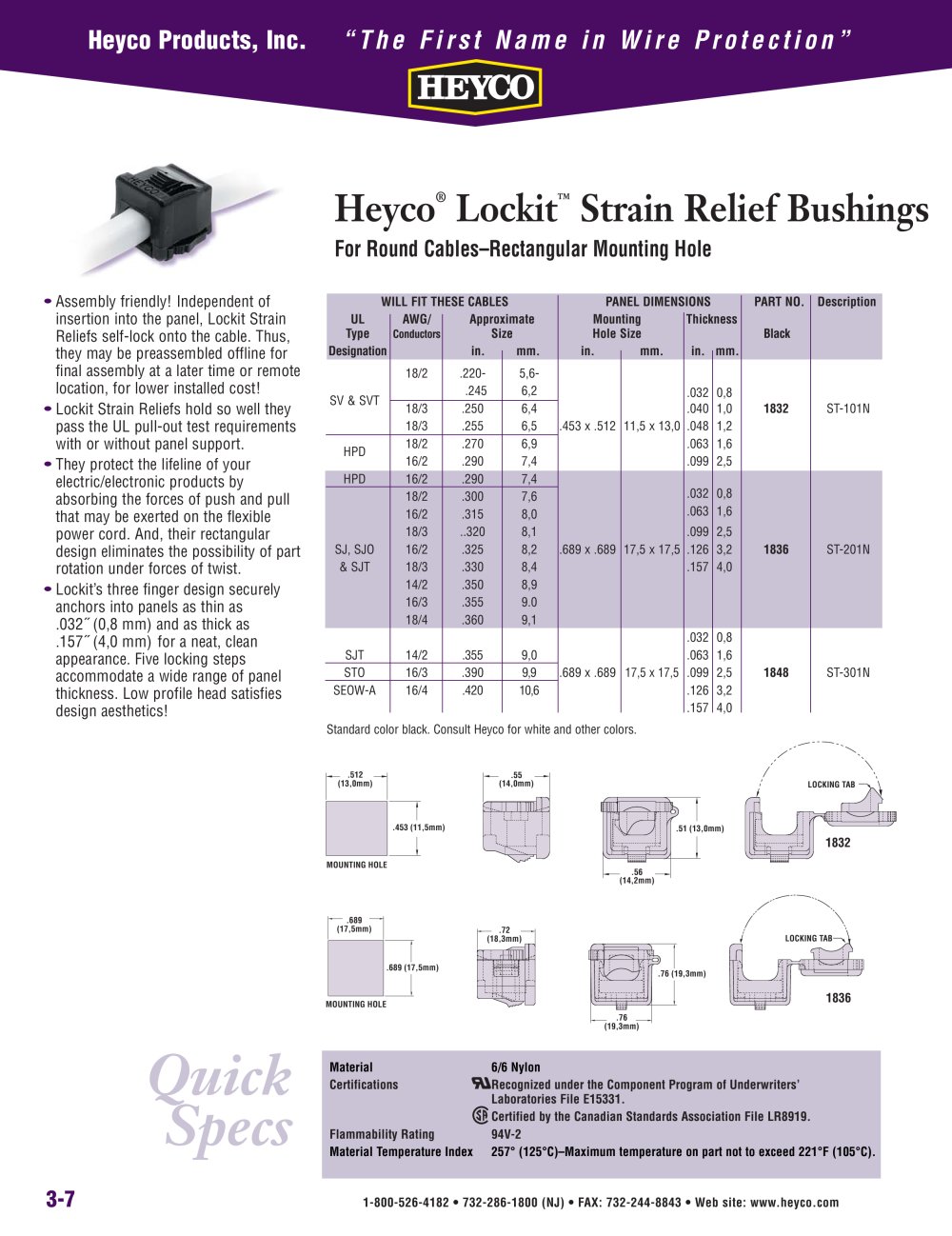

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 3-7 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com Quick Specs Heyco® Lockit™ Strain Relief Bushings For Round Cables–Rectangular Mounting Hole • Assembly friendly! Independent of insertion into the panel, Lockit Strain Reliefs self-lock onto the cable. Thus, they may be preassembled offline for final assembly at a later time or remote location, for lower installed cost! • Lockit Strain Reliefs hold so well they pass the UL pull-out test requirements with or without panel support. • They protect the lifeline of your electric/electronic products by absorbing the forces of push and pull that may be exerted on the flexible power cord. And, their rectangular design eliminates the possibility of part rotation under forces of twist. • Lockit’s three finger design securely anchors into panels as thin as .032½ (0,8 mm) and as thick as .157½ (4,0 mm) for a neat, clean appearance. Five locking steps accommodate a wide range of panel thickness. Low profile head satisfies design aesthetics! UL AWG/ Approximate Mounting Thickness Type Conductors Size Hole Size Black Designation in. mm. in. mm. in. mm. 18/2 .220- 5,6- .245 6,2 .032 0,8 SV & SVT 18/3 .250 6,4 .040 1,0 1832 ST-101N 18/3 .255 6,5 .453 x .512 11,5 x 13,0 .048 1,2 18/2 .270 6,9 .063 1,6 HPD 16/2 .290 7,4 .099 2,5 HPD 16/2 .290 7,4 18/2 .300 7,6 .032 0,8 16/2 .315 8,0 .063 1,6 18/3 ..320 8,1 .099 2,5 SJ, SJO 16/2 .325 8,2 .689 x .689 17,5 x 17,5 .126 3,2 1836 ST-201N & SJT 18/3 .330 8,4 .157 4,0 14/2 .350 8,9 16/3 .355 9.0 18/4 .360 9,1 .032 0,8 SJT 14/2 .355 9,0 .063 1,6 STO 16/3 .390 9,9 .689 x .689 17,5 x 17,5 .099 2,5 1848 ST-301N SEOW-A 16/4 .420 10,6 .126 3,2 .157 4,0 Standard color black. Consult Heyco for white and other colors. WILL FIT THESE CABLES PANEL DIMENSIONS PART NO. Description .55 (14,0mm) .51 (13,0mm) .56 (14,2mm) LOCKING TAB .512 (13,0mm) .453 (11,5mm) MOUNTING HOLE .72 (18,3mm) .76 (19,3mm) .76 (19,3mm) LOCKING TAB MOUNTING HOLE .689 (17,5mm) .689 (17,5mm) 1832 1836 Material 6/6 Nylon Certifications Recognized under the Component Program of Underwriters’ Laboratories File E15331. Certified by the Canadian Standards Association File LR8919. Flammability Rating 94V-2 Material Temperature Index 257° (125°C)–Maximum temperature on part not to exceed 221°F (105°C).
