Heyco® Lockit™ Loops
1Pages

{{requestButtons}}

Catalog excerpts

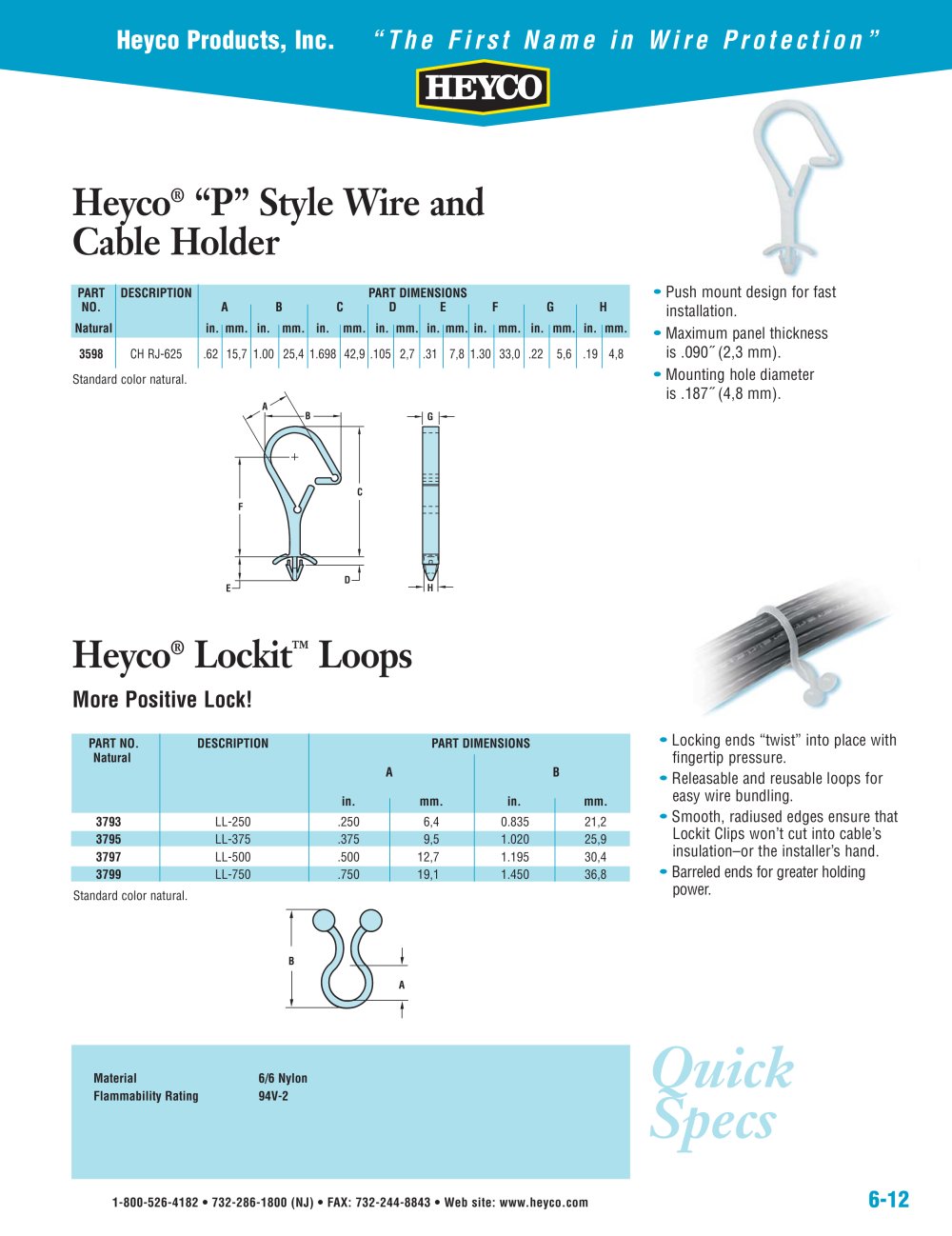

Heyco® Lockit™ Loops - 1

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 6-12 PART NO. DESCRIPTION PART DIMENSIONS Natural A B in. mm. in. mm. 3793 LL-250 .250 6,4 0.835 21,2 3795 LL-375 .375 9,5 1.020 25,9 3797 LL-500 .500 12,7 1.195 30,4 3799 LL-750 .750 19,1 1.450 36,8 Standard color natural. Heyco® Lockit™ Loops More Positive Lock! • Locking ends “twist” into place with fingertip pressure. • Releasable and reusable loops for easy wire bundling. • Smooth, radiused edges ensure that Lockit Clips won’t cut into cable’s insulation–or the installer’s hand. • Barreled ends for greater holding power. B A Heyco® “P” Style Wire and Cable Holder PART DESCRIPTION PART DIMENSIONS NO. A B C D E F G H Natural in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. 3598 CH RJ-625 .62 15,7 1.00 25,4 1.698 42,9 .105 2,7 .31 7,8 1.30 33,0 .22 5,6 .19 4,8 Standard color natural. • Push mount design for fast installation. • Maximum panel thickness is .090½ (2,3 mm). • Mounting hole diameter is .187½ (4,8 mm). A B F C G H D E Quick Specs Material 6/6 Nylon Flammability Rating 94V-2
