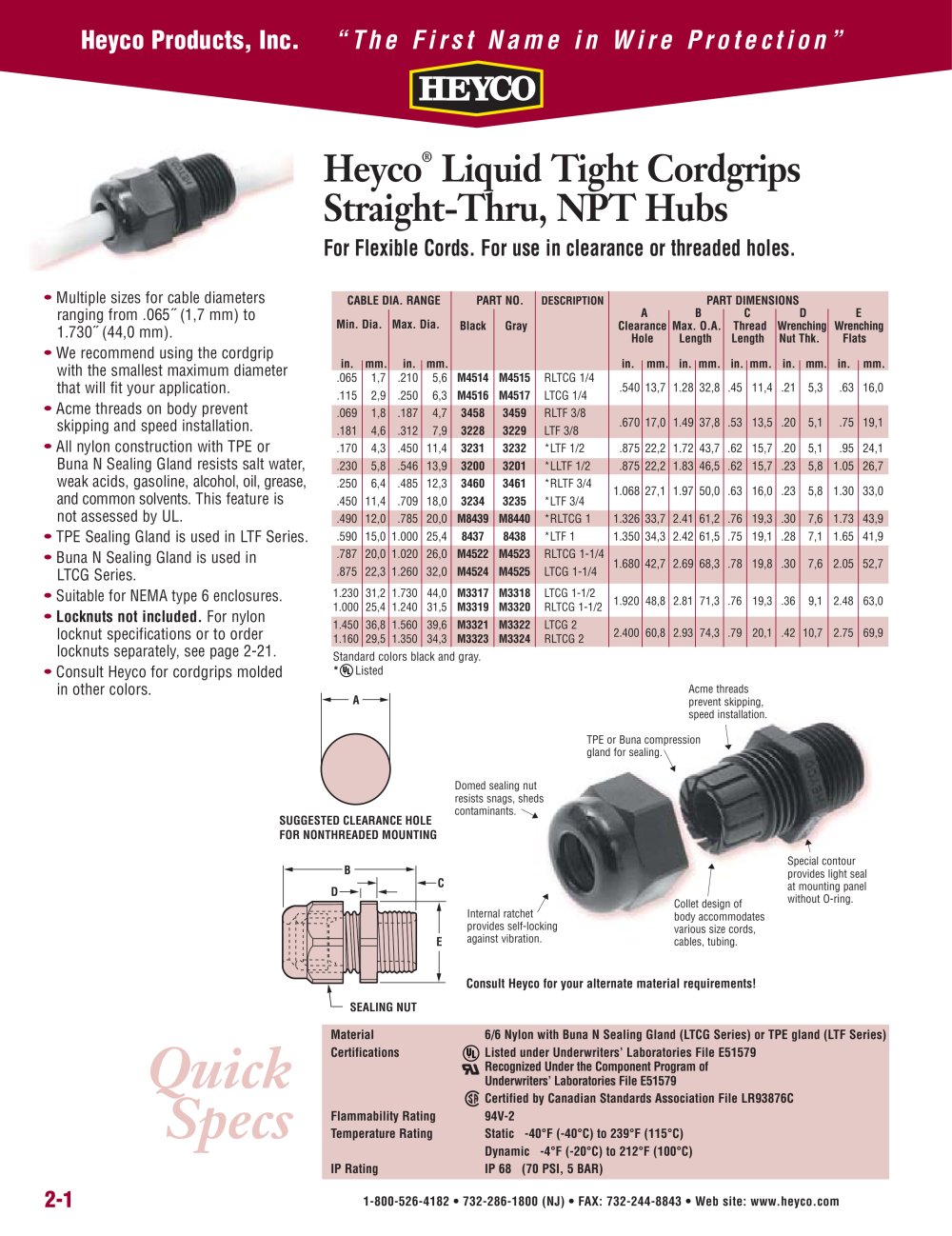

Heyco® Liquid Tight Cordgrips Straight-Thru, NPT Hubs - 1

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 2-1 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com Quick Specs Material 6/6 Nylon with Buna N Sealing Gland (LTCG Series) or TPE gland (LTF Series) Certifications Listed under Underwriters’ Laboratories File E51579 Recognized Under the Component Program of Underwriters’ Laboratories File E51579 Certified by Canadian Standards Association File LR93876C Flammability Rating 94V-2 Temperature Rating Static -40°F (-40°C) to 239°F (115°C) Dynamic -4°F (-20°C) to 212°F (100°C) IP Rating IP 68 (70 PSI, 5 BAR) E D B C SEALING NUT • Multiple sizes for cable diameters ranging from .065½ (1,7 mm) to 1.730½ (44,0 mm). • We recommend using the cordgrip with the smallest maximum diameter that will fit your application. • Acme threads on body prevent skipping and speed installation. • All nylon construction with TPE or Buna N Sealing Gland resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL. • TPE Sealing Gland is used in LTF Series. • Buna N Sealing Gland is used in LTCG Series. • Suitable for NEMA type 6 enclosures. • Locknuts not included. For nylon locknut specifications or to order locknuts separately, see page 2-21. • Consult Heyco for cordgrips molded in other colors. Internal ratchet provides self-locking against vibration. Domed sealing nut resists snags, sheds contaminants. TPE or Buna compression gland for sealing. Collet design of body accommodates various size cords, cables, tubing. Acme threads prevent skipping, speed installation. Special contour provides light seal at mounting panel without O-ring. Consult Heyco for your alternate material requirements! Heyco® Liquid Tight Cordgrips Straight-Thru, NPT Hubs For Flexible Cords. For use in clearance or threaded holes. CABLE DIA. RANGE PART NO. DESCRIPTION PART DIMENSIONS A B C D E Min. Dia. Max. Dia. Black Gray Clearance Max. O.A. Thread Wrenching Wrenching Hole Length Length Nut Thk. Flats in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. .065 1,7 .210 5,6 M4514 M4515 RLTCG 1/4 .115 2,9 .250 6,3 M4516 M4517 LTCG 1/4 .540 13,7 1.28 32,8 .45 11,4 .21 5,3 .63 16,0 .069 1,8 .187 4,7 3458 3459 RLTF 3/8 .670 17,0 1.49 37,8 .53 13,5 .20 5,1 .75 19,1 .181 4,6 .312 7,9 3228 3229 LTF 3/8 .170 4,3 .450 11,4 3231 3232 *LTF 1/2 .875 22,2 1.72 43,7 .62 15,7 .20 5,1 .95 24,1 .230 5,8 .546 13,9 3200 3201 *LLTF 1/2 .875 22,2 1.83 46,5 .62 15,7 .23 5,8 1.05 26,7 .250 6,4 .485 12,3 3460 3461 *RLTF 3/4 1.068 27,1 1.97 50,0 .63 16,0 .23 5,8 1.30 33,0 .450 11,4 .709 18,0 3234 3235 *LTF 3/4 .490 12,0 .785 20,0 M8439 M8440 *RLTCG 1 1.326 33,7 2.41 61,2 .76 19,3 .30 7,6 1.73 43,9 .590 15,0 1.000 25,4 8437 8438 *LTF 1 1.350 34,3 2.42 61,5 .75 19,1 .28 7,1 1.65 41,9 .787 20,0 1.020 26,0 M4522 M4523 RLTCG 1-1/4 .875 22,3 1.260 32,0 M4524 M4525 LTCG 1-1/4 1.680 42,7 2.69 68,3 .78 19,8 .30 7,6 2.05 52,7 1.230 31,2 1.730 44,0 M3317 M3318 LTCG 1-1/2 1.000 25,4 1.240 31,5 M3319 M3320 RLTCG 1-1/2 1.920 48,8 2.81 71,3 .76 19,3 .36 9,1 2.48 63,0 1.450 36,8 1.560 39,6 M3321 M3322 LTCG 2 1.160 29,5 1.350 34,3 M3323 M3324 RLTCG 2 2.400 60,8 2.93 74,3 .79 20,1 .42 10,7 2.75 69,9 Standard colors black and gray. * Listed A SUGGESTED CLEARANCE HOLE FOR NONTHREADED MOUNTING
