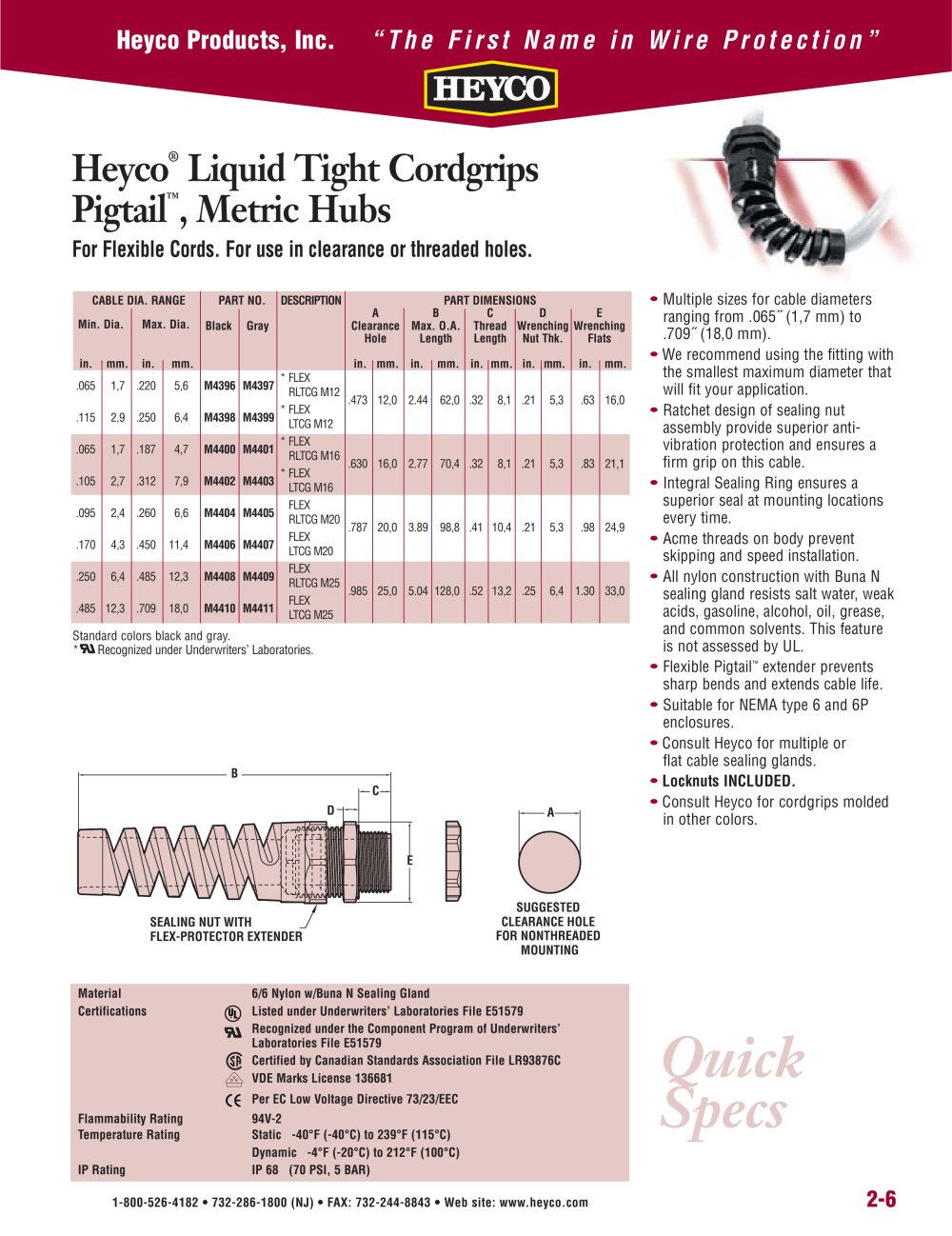

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 2-6 Quick Specs Heyco® Liquid Tight Cordgrips Pigtail™, Metric Hubs For Flexible Cords. For use in clearance or threaded holes. SUGGESTED CLEARANCE HOLE FOR NONTHREADED MOUNTING D A C B E SEALING NUT WITH FLEX-PROTECTOR EXTENDER Material 6/6 Nylon w/Buna N Sealing Gland Certifications Listed under Underwriters’ Laboratories File E51579 Recognized under the Component Program of Underwriters’ Laboratories File E51579 Certified by Canadian Standards Association File LR93876C VDE Marks License 136681 Per EC Low Voltage Directive 73/23/EEC Flammability Rating 94V-2 Temperature Rating Static -40°F (-40°C) to 239°F (115°C) Dynamic -4°F (-20°C) to 212°F (100°C) IP Rating IP 68 (70 PSI, 5 BAR) DVE • Multiple sizes for cable diameters ranging from .065½ (1,7 mm) to .709½ (18,0 mm). • We recommend using the fitting with the smallest maximum diameter that will fit your application. • Ratchet design of sealing nut assembly provide superior antivibration protection and ensures a firm grip on this cable. • Integral Sealing Ring ensures a superior seal at mounting locations every time. • Acme threads on body prevent skipping and speed installation. • All nylon construction with Buna N sealing gland resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL. • Flexible Pigtail™ extender prevents sharp bends and extends cable life. • Suitable for NEMA type 6 and 6P enclosures. • Consult Heyco for multiple or flat cable sealing glands. • Locknuts INCLUDED. • Consult Heyco for cordgrips molded in other colors. CABLE DIA. RANGE PART NO. DESCRIPTION PART DIMENSIONS A B C D E Min. Dia. Max. Dia. Black Gray Clearance Max. O.A. Thread Wrenching Wrenching Hole Length Length Nut Thk. Flats in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. .065 1,7 .220 5,6 M4396 M4397 * FLEX RLTCG M12 .473 12,0 2.44 62,0 .32 8,1 .21 5,3 .63 16,0 .115 2,9 .250 6,4 M4398 M4399 * FLEX LTCG M12 .065 1,7 .187 4,7 M4400 M4401 * FLEX RLTCG M16 .630 16,0 2.77 70,4 .32 8,1 .21 5,3 .83 21,1 .105 2,7 .312 7,9 M4402 M4403 * FLEX LTCG M16 .095 2,4 .260 6,6 M4404 M4405 FLEX RLTCG M20 .787 20,0 3.89 98,8 .41 10,4 .21 5,3 .98 24,9 .170 4,3 .450 11,4 M4406 M4407 FLEX LTCG M20 .250 6,4 .485 12,3 M4408 M4409 FLEX RLTCG M25 .985 25,0 5.04 128,0 .52 13,2 .25 6,4 1.30 33,0 .485 12,3 .709 18,0 M4410 M4411 FLEX LTCG M25 Standard colors black and gray. * Recognized under Underwriters’ Laboratories.
