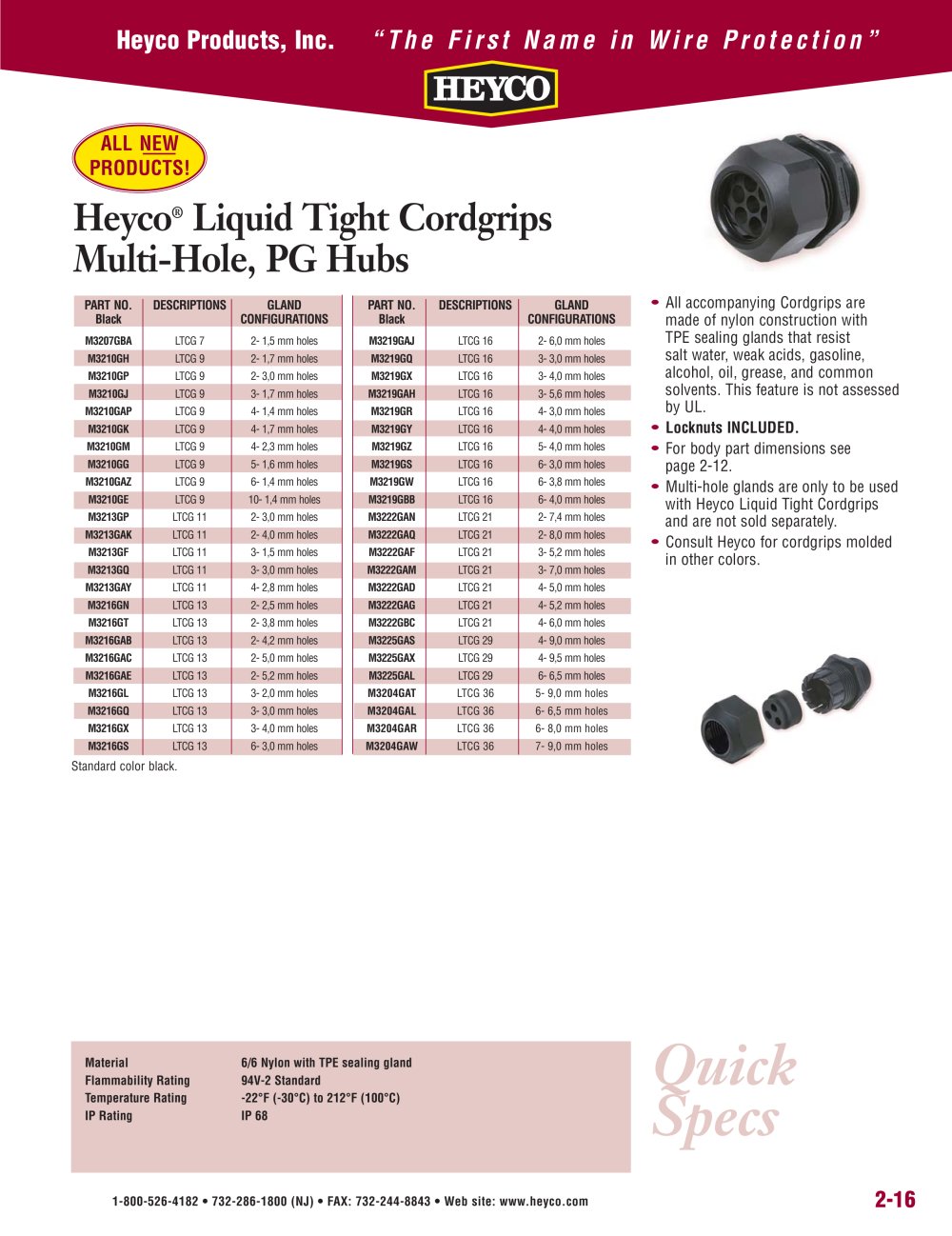

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 2-16 Quick Specs ALL NEW PRODUCTS! Heyco® Liquid Tight Cordgrips Multi-Hole, PG Hubs • All accompanying Cordgrips are made of nylon construction with TPE sealing glands that resist salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL. • Locknuts INCLUDED. • For body part dimensions see page 2-12. • Multi-hole glands are only to be used with Heyco Liquid Tight Cordgrips and are not sold separately. • Consult Heyco for cordgrips molded in other colors. PART NO. DESCRIPTIONS GLAND PART NO. DESCRIPTIONS GLAND Black CONFIGURATIONS Black CONFIGURATIONS M3207GBA LTCG 7 2- 1,5 mm holes M3219GAJ LTCG 16 2- 6,0 mm holes M3210GH LTCG 9 2- 1,7 mm holes M3219GQ LTCG 16 3- 3,0 mm holes M3210GP LTCG 9 2- 3,0 mm holes M3219GX LTCG 16 3- 4,0 mm holes M3210GJ LTCG 9 3- 1,7 mm holes M3219GAH LTCG 16 3- 5,6 mm holes M3210GAP LTCG 9 4- 1,4 mm holes M3219GR LTCG 16 4- 3,0 mm holes M3210GK LTCG 9 4- 1,7 mm holes M3219GY LTCG 16 4- 4,0 mm holes M3210GM LTCG 9 4- 2,3 mm holes M3219GZ LTCG 16 5- 4,0 mm holes M3210GG LTCG 9 5- 1,6 mm holes M3219GS LTCG 16 6- 3,0 mm holes M3210GAZ LTCG 9 6- 1,4 mm holes M3219GW LTCG 16 6- 3,8 mm holes M3210GE LTCG 9 10- 1,4 mm holes M3219GBB LTCG 16 6- 4,0 mm holes M3213GP LTCG 11 2- 3,0 mm holes M3222GAN LTCG 21 2- 7,4 mm holes M3213GAK LTCG 11 2- 4,0 mm holes M3222GAQ LTCG 21 2- 8,0 mm holes M3213GF LTCG 11 3- 1,5 mm holes M3222GAF LTCG 21 3- 5,2 mm holes M3213GQ LTCG 11 3- 3,0 mm holes M3222GAM LTCG 21 3- 7,0 mm holes M3213GAY LTCG 11 4- 2,8 mm holes M3222GAD LTCG 21 4- 5,0 mm holes M3216GN LTCG 13 2- 2,5 mm holes M3222GAG LTCG 21 4- 5,2 mm holes M3216GT LTCG 13 2- 3,8 mm holes M3222GBC LTCG 21 4- 6,0 mm holes M3216GAB LTCG 13 2- 4,2 mm holes M3225GAS LTCG 29 4- 9,0 mm holes M3216GAC LTCG 13 2- 5,0 mm holes M3225GAX LTCG 29 4- 9,5 mm holes M3216GAE LTCG 13 2- 5,2 mm holes M3225GAL LTCG 29 6- 6,5 mm holes M3216GL LTCG 13 3- 2,0 mm holes M3204GAT LTCG 36 5- 9,0 mm holes M3216GQ LTCG 13 3- 3,0 mm holes M3204GAL LTCG 36 6- 6,5 mm holes M3216GX LTCG 13 3- 4,0 mm holes M3204GAR LTCG 36 6- 8,0 mm holes M3216GS LTCG 13 6- 3,0 mm holes M3204GAW LTCG 36 7- 9,0 mm holes Material 6/6 Nylon with TPE sealing gland Flammability Rating 94V-2 Standard Temperature Rating -22°F (-30°C) to 212°F (100°C) IP Rating IP 68 Standard color black.
