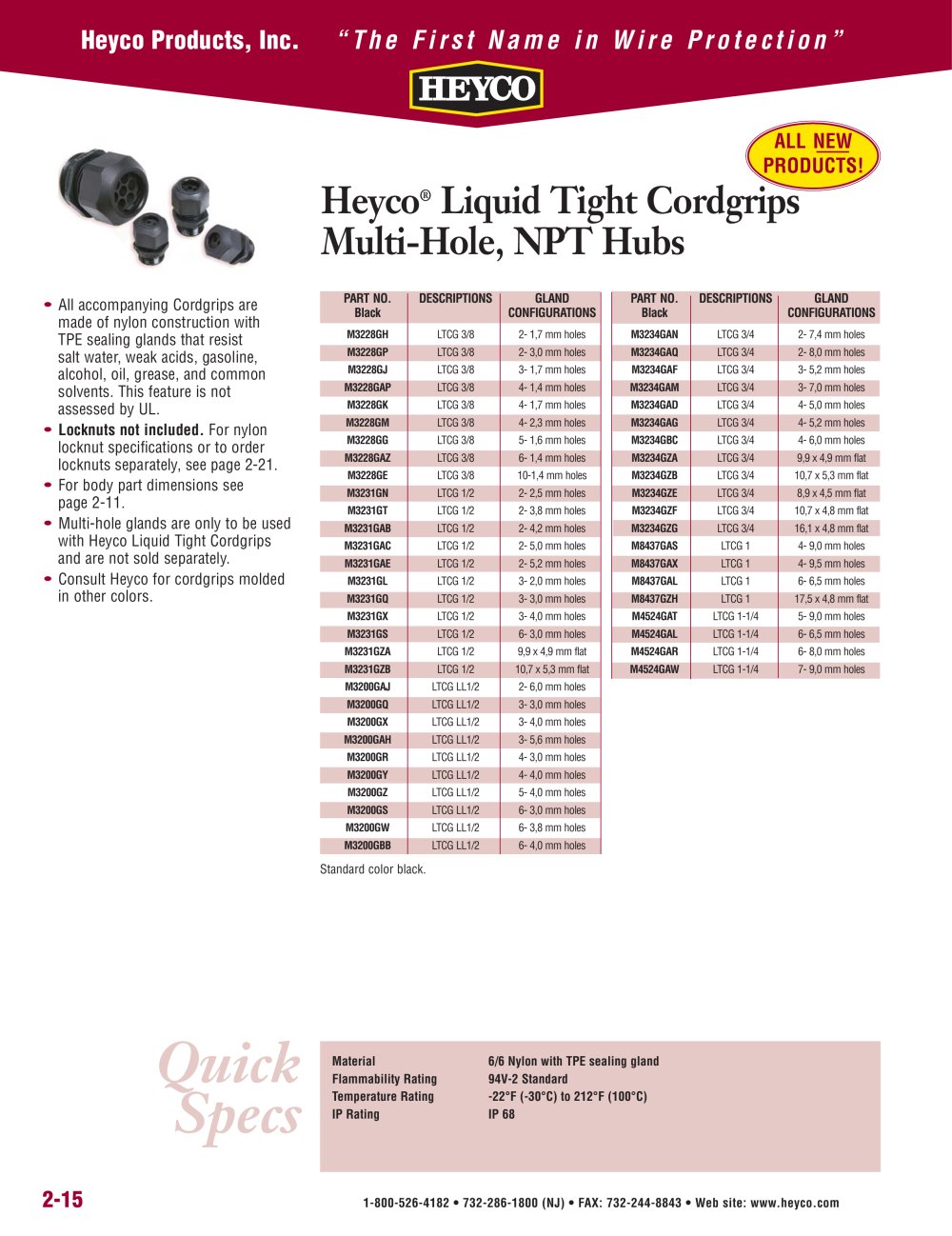

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 2-15 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com Heyco® Liquid Tight Cordgrips Multi-Hole, NPT Hubs Quick Specs Material 6/6 Nylon with TPE sealing gland Flammability Rating 94V-2 Standard Temperature Rating -22°F (-30°C) to 212°F (100°C) IP Rating IP 68 • All accompanying Cordgrips are made of nylon construction with TPE sealing glands that resist salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL. • Locknuts not included. For nylon locknut specifications or to order locknuts separately, see page 2-21. • For body part dimensions see page 2-11. • Multi-hole glands are only to be used with Heyco Liquid Tight Cordgrips and are not sold separately. • Consult Heyco for cordgrips molded in other colors. PART NO. DESCRIPTIONS GLAND PART NO. DESCRIPTIONS GLAND Black CONFIGURATIONS Black CONFIGURATIONS M3228GH LTCG 3/8 2- 1,7 mm holes M3234GAN LTCG 3/4 2- 7,4 mm holes M3228GP LTCG 3/8 2- 3,0 mm holes M3234GAQ LTCG 3/4 2- 8,0 mm holes M3228GJ LTCG 3/8 3- 1,7 mm holes M3234GAF LTCG 3/4 3- 5,2 mm holes M3228GAP LTCG 3/8 4- 1,4 mm holes M3234GAM LTCG 3/4 3- 7,0 mm holes M3228GK LTCG 3/8 4- 1,7 mm holes M3234GAD LTCG 3/4 4- 5,0 mm holes M3228GM LTCG 3/8 4- 2,3 mm holes M3234GAG LTCG 3/4 4- 5,2 mm holes M3228GG LTCG 3/8 5- 1,6 mm holes M3234GBC LTCG 3/4 4- 6,0 mm holes M3228GAZ LTCG 3/8 6- 1,4 mm holes M3234GZA LTCG 3/4 9,9 x 4,9 mm flat M3228GE LTCG 3/8 10-1,4 mm holes M3234GZB LTCG 3/4 10,7 x 5,3 mm flat M3231GN LTCG 1/2 2- 2,5 mm holes M3234GZE LTCG 3/4 8,9 x 4,5 mm flat M3231GT LTCG 1/2 2- 3,8 mm holes M3234GZF LTCG 3/4 10,7 x 4,8 mm flat M3231GAB LTCG 1/2 2- 4,2 mm holes M3234GZG LTCG 3/4 16,1 x 4,8 mm flat M3231GAC LTCG 1/2 2- 5,0 mm holes M8437GAS LTCG 1 4- 9,0 mm holes M3231GAE LTCG 1/2 2- 5,2 mm holes M8437GAX LTCG 1 4- 9,5 mm holes M3231GL LTCG 1/2 3- 2,0 mm holes M8437GAL LTCG 1 6- 6,5 mm holes M3231GQ LTCG 1/2 3- 3,0 mm holes M8437GZH LTCG 1 17,5 x 4,8 mm flat M3231GX LTCG 1/2 3- 4,0 mm holes M4524GAT LTCG 1-1/4 5- 9,0 mm holes M3231GS LTCG 1/2 6- 3,0 mm holes M4524GAL LTCG 1-1/4 6- 6,5 mm holes M3231GZA LTCG 1/2 9,9 x 4,9 mm flat M4524GAR LTCG 1-1/4 6- 8,0 mm holes M3231GZB LTCG 1/2 10,7 x 5,3 mm flat M4524GAW LTCG 1-1/4 7- 9,0 mm holes M3200GAJ LTCG LL1/2 2- 6,0 mm holes M3200GQ LTCG LL1/2 3- 3,0 mm holes M3200GX LTCG LL1/2 3- 4,0 mm holes M3200GAH LTCG LL1/2 3- 5,6 mm holes M3200GR LTCG LL1/2 4- 3,0 mm holes M3200GY LTCG LL1/2 4- 4,0 mm holes M3200GZ LTCG LL1/2 5- 4,0 mm holes M3200GS LTCG LL1/2 6- 3,0 mm holes M3200GW LTCG LL1/2 6- 3,8 mm holes M3200GBB LTCG LL1/2 6- 4,0 mm holes Standard color black. ALL NEW PRODUCTS!
