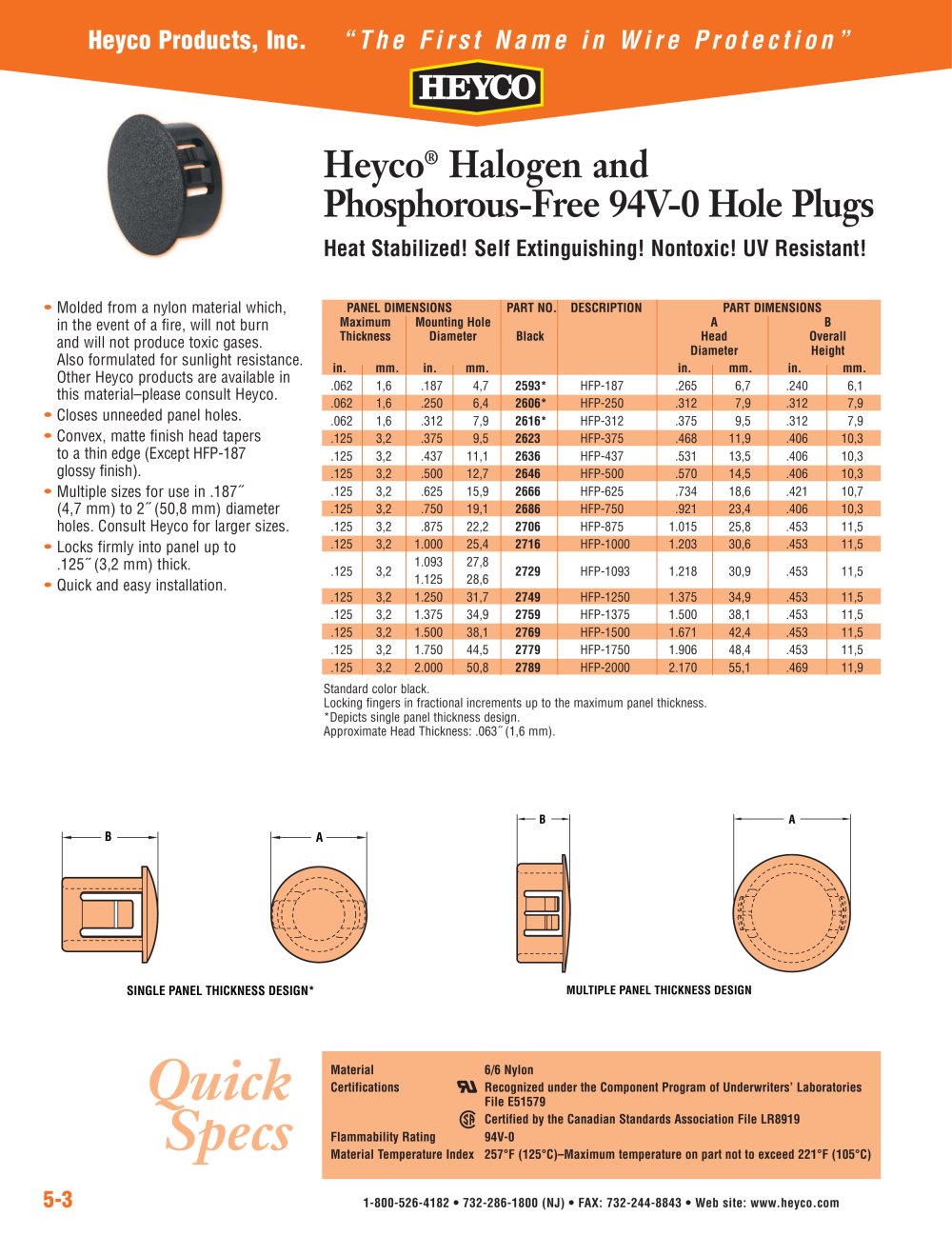

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 5-3 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com Quick Specs Heyco® Halogen and Phosphorous-Free 94V-0 Hole Plugs Heat Stabilized! Self Extinguishing! Nontoxic! UV Resistant! • Molded from a nylon material which, in the event of a fire, will not burn and will not produce toxic gases. Also formulated for sunlight resistance. Other Heyco products are available in this material–please consult Heyco. • Closes unneeded panel holes. • Convex, matte finish head tapers to a thin edge (Except HFP-187 glossy finish). • Multiple sizes for use in .187½ (4,7 mm) to 2½ (50,8 mm) diameter holes. Consult Heyco for larger sizes. • Locks firmly into panel up to .125½ (3,2 mm) thick. • Quick and easy installation. PANEL DIMENSIONS PART NO. DESCRIPTION PART DIMENSIONS Maximum Mounting Hole A B Thickness Diameter Black Head Overall Diameter Height in. mm. in. mm. in. mm. in. mm. .062 1,6 .187 4,7 2593* HFP-187 .265 6,7 .240 6,1 .062 1,6 .250 6,4 2606* HFP-250 .312 7,9 .312 7,9 .062 1,6 .312 7,9 2616* HFP-312 .375 9,5 .312 7,9 .125 3,2 .375 9,5 2623 HFP-375 .468 11,9 .406 10,3 .125 3,2 .437 11,1 2636 HFP-437 .531 13,5 .406 10,3 .125 3,2 .500 12,7 2646 HFP-500 .570 14,5 .406 10,3 .125 3,2 .625 15,9 2666 HFP-625 .734 18,6 .421 10,7 .125 3,2 .750 19,1 2686 HFP-750 .921 23,4 .406 10,3 .125 3,2 .875 22,2 2706 HFP-875 1.015 25,8 .453 11,5 .125 3,2 1.000 25,4 2716 HFP-1000 1.203 30,6 .453 11,5 .125 3,2 1.093 27,8 2729 HFP-1093 1.218 30,9 .453 11,5 1.125 28,6 .125 3,2 1.250 31,7 2749 HFP-1250 1.375 34,9 .453 11,5 .125 3,2 1.375 34,9 2759 HFP-1375 1.500 38,1 .453 11,5 .125 3,2 1.500 38,1 2769 HFP-1500 1.671 42,4 .453 11,5 .125 3,2 1.750 44,5 2779 HFP-1750 1.906 48,4 .453 11,5 .125 3,2 2.000 50,8 2789 HFP-2000 2.170 55,1 .469 11,9 Standard color black. Locking fingers in fractional increments up to the maximum panel thickness. *Depicts single panel thickness design. Approximate Head Thickness: .063½ (1,6 mm). Material 6/6 Nylon Certifications Recognized under the Component Program of Underwriters’ Laboratories File E51579 Certified by the Canadian Standards Association File LR8919 Flammability Rating 94V-0 Material Temperature Index 257°F (125°C)–Maximum temperature on part not to exceed 221°F (105°C) B A SINGLE PANEL THICKNESS DESIGN* B A MULTIPLE PANEL THICKNESS DESIGN
