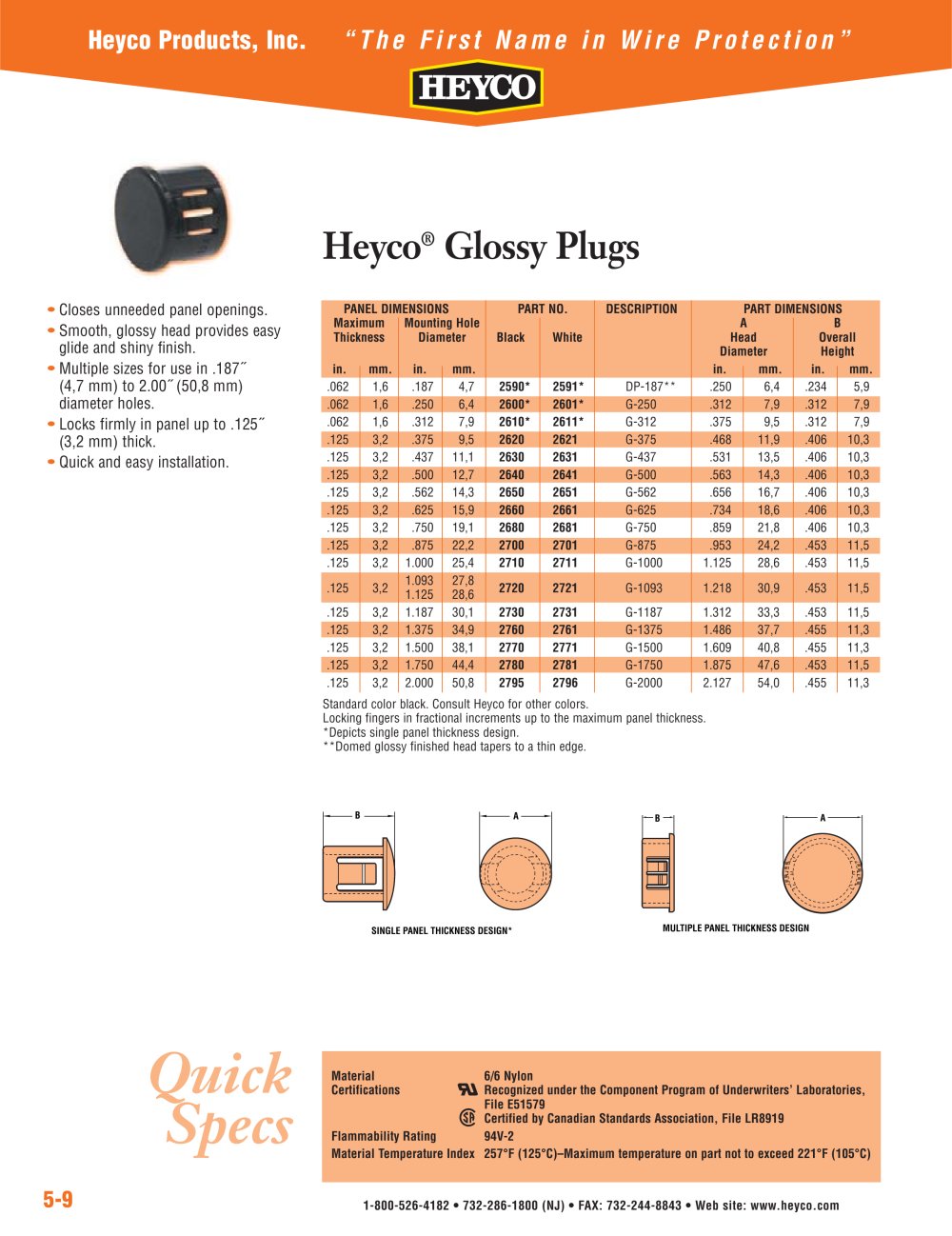

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 5-9 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com Quick Specs Heyco® Glossy Plugs • Closes unneeded panel openings. • Smooth, glossy head provides easy glide and shiny finish. • Multiple sizes for use in .187½ (4,7 mm) to 2.00½ (50,8 mm) diameter holes. • Locks firmly in panel up to .125½ (3,2 mm) thick. • Quick and easy installation. PANEL DIMENSIONS PART NO. DESCRIPTION PART DIMENSIONS Maximum Mounting Hole A B Thickness Diameter Black White Head Overall Diameter Height in. mm. in. mm. in. mm. in. mm. .062 1,6 .187 4,7 2590* 2591* DP-187** .250 6,4 .234 5,9 .062 1,6 .250 6,4 2600* 2601* G-250 .312 7,9 .312 7,9 .062 1,6 .312 7,9 2610* 2611* G-312 .375 9,5 .312 7,9 .125 3,2 .375 9,5 2620 2621 G-375 .468 11,9 .406 10,3 .125 3,2 .437 11,1 2630 2631 G-437 .531 13,5 .406 10,3 .125 3,2 .500 12,7 2640 2641 G-500 .563 14,3 .406 10,3 .125 3,2 .562 14,3 2650 2651 G-562 .656 16,7 .406 10,3 .125 3,2 .625 15,9 2660 2661 G-625 .734 18,6 .406 10,3 .125 3,2 .750 19,1 2680 2681 G-750 .859 21,8 .406 10,3 .125 3,2 .875 22,2 2700 2701 G-875 .953 24,2 .453 11,5 .125 3,2 1.000 25,4 2710 2711 G-1000 1.125 28,6 .453 11,5 .125 3,2 1.093 27,8 1.125 28,6 2720 2721 G-1093 1.218 30,9 .453 11,5 .125 3,2 1.187 30,1 2730 2731 G-1187 1.312 33,3 .453 11,5 .125 3,2 1.375 34,9 2760 2761 G-1375 1.486 37,7 .455 11,3 .125 3,2 1.500 38,1 2770 2771 G-1500 1.609 40,8 .455 11,3 .125 3,2 1.750 44,4 2780 2781 G-1750 1.875 47,6 .453 11,5 .125 3,2 2.000 50,8 2795 2796 G-2000 2.127 54,0 .455 11,3 Standard color black. Consult Heyco for other colors. Locking fingers in fractional increments up to the maximum panel thickness. *Depicts single panel thickness design. **Domed glossy finished head tapers to a thin edge. Material 6/6 Nylon Certifications Recognized under the Component Program of Underwriters’ Laboratories, File E51579 Certified by Canadian Standards Association, File LR8919 Flammability Rating 94V-2 Material Temperature Index 257°F (125°C)–Maximum temperature on part not to exceed 221°F (105°C) B A MULTIPLE PANEL THICKNESS DESIGN B A SINGLE PANEL THICKNESS DESIGN*
