Heyco Products, Inc. "The First Name in Wire Protection"

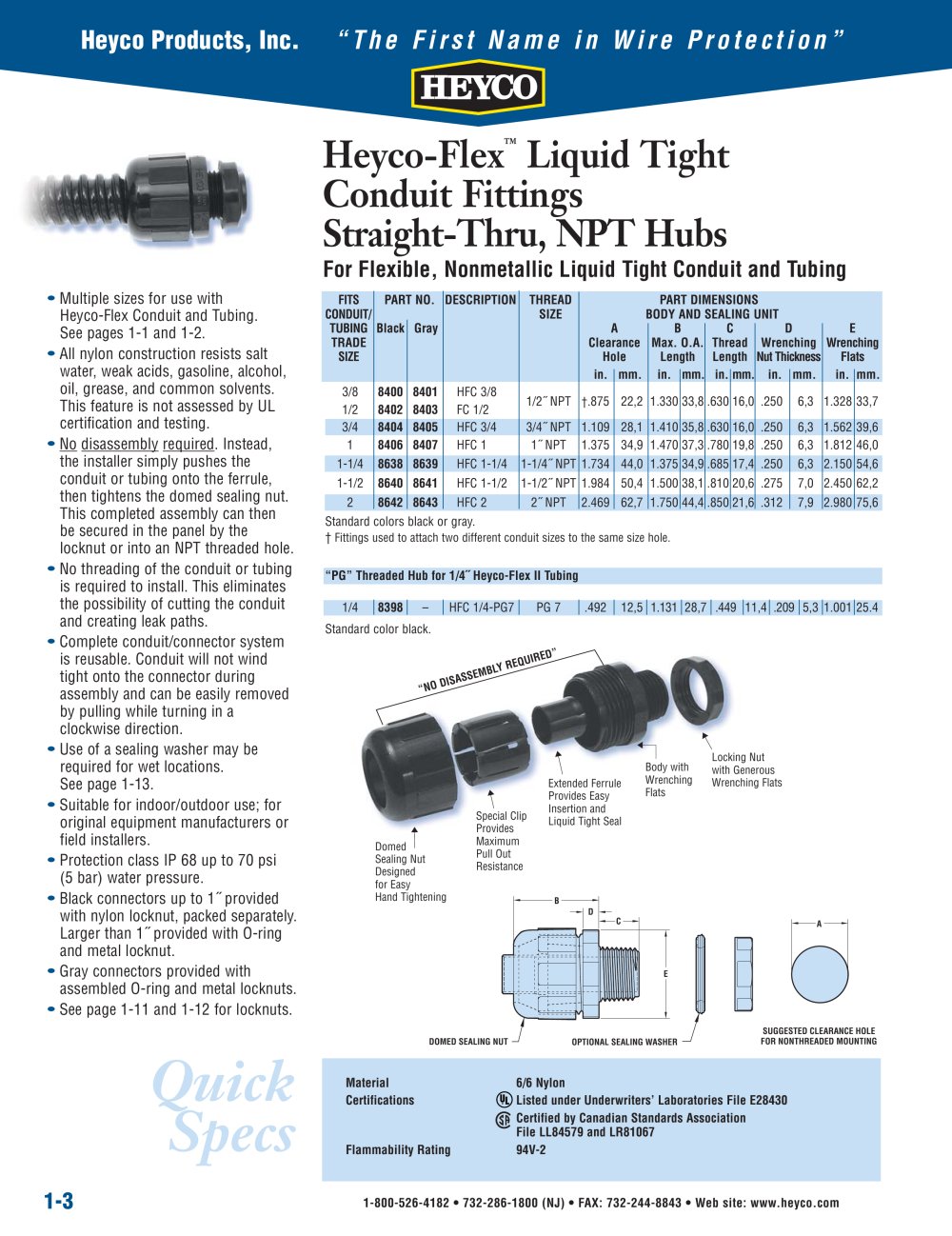

Heyco-Flex™ Liquid Tight Conduit Fittings Straight-Thru, NPT Hubs

For Flexible, Nonmetallic Liquid Tight Conduit and Tubing


FITS	PART NO.		DESCRIPTION	THREAD			PART DIMENSIONS
CONDUIT/				SIZE		BODY AND SEALING UNIT
TUBING	Black	Gray			A		B		C		D		E
TRADE		Gray			Clearance		Max. O.A.		Thread		Wrenching		Wrenching
SIZE					Hole		Length		Length		Nut Thickness		Flats
					in.	mm.	in.	mm.	in.	mm.	in.	mm.	in.	mm.
3/8	8400	8401	HFC 3/8
1/2	8402	8403	FC 1/2	1/2" NPT	f.875	22,2	1.330	33,8	.630	16,0	.250	6,3	1.328	33,7
3/4	8404	8405	HFC 3/4	3/4" NPT	1.109	28,1	1.410	35,8	.630	16,0	.250	6,3	1.562	39,6
1	8406	8407	HFC 1	1" NPT	1.375	34,9	1.470	37,3	.780	19,8	.250	6,3	1.812	46,0
1-1/4	8638	8639	HFC 1-1/4	1-1/4" NPT	1.734	44,0	1.375	34,9	.685	17,4	.250	6,3	2.150	54,6
1-1/2	8640	8641	HFC 1-1/2	1-1/2" NPT	1.984	50,4	1.500	38,1	.810	20,6	.275	7,0	2.450	62,2
2	8642	8643	HFC 2	2" NPT	2.469	62,7	1.750	44,4	.850	21,6	.312	7,9	2.980	75,6

Multiple sizes for use with Heyco-Flex Conduit and Tubing. See pages 1-1 and 1-2. All nylon construction resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL certification and testing.

No disassembly required. Instead, the installer simply pushes the conduit or tubing onto the ferrule, then tightens the domed sealing nut. This completed assembly can then be secured in the panel by the locknut or into an NPT threaded hole. No threading of the conduit or tubing is required to install. This eliminates the possibility of cutting the conduit and creating leak paths. Complete conduit/connector system is reusable. Conduit will not wind tight onto the connector during assembly and can be easily removed by pulling while turning in a clockwise direction. Use of a sealing washer may be required for wet locations. See page 1-13.

Suitable for indoor/outdoor use; for original equipment manufacturers or field installers.

Protection class IP 68 up to 70 psi (5 bar) water pressure. • Black connectors up to 1" provided with nylon locknut, packed separately. Larger than 1" provided with O-ring and metal locknut.

Gray connectors provided with assembled O-ring and metal locknuts.

See page 1-11 and 1-12 for locknuts.

Standard colors black or gray.

f Fittings used to attach two different conduit sizes to the same size hole.

"PG" Threaded Hub for 1/4" Heyco-Flex II Tubing

1/4 8398| - | HFC 1/4-PG7 PG 7 .492 12,5 1.131 28,7 .449 11,4 .209 5,3 1.001 25.4 Standard color black.

«1

Body with Wrenching

Flats

Locking Nut with Generous Wrenching Flats

Extended Ferrule

Provides Easy

Insertion and Liquid Tight Seal

Special Clip Provides Maximum Pull Out Resistance

Domed Î Sealing Nut Designed for Easy Hand Tightening

SUGGESTED CLEARANCE HOLE FOR NONTHREADED MOUNTING

DOMED SEALING NUT

—/

OPTIONAL SEALING WASHER

Material 6/6 Nylon

Certifications ® Listed under Underwriters' Laboratories File E28430

(SjJ Certified by Canadian Standards Association File LL84579 and LR81067 Flammability Rating 94V-2

1-3

1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com
