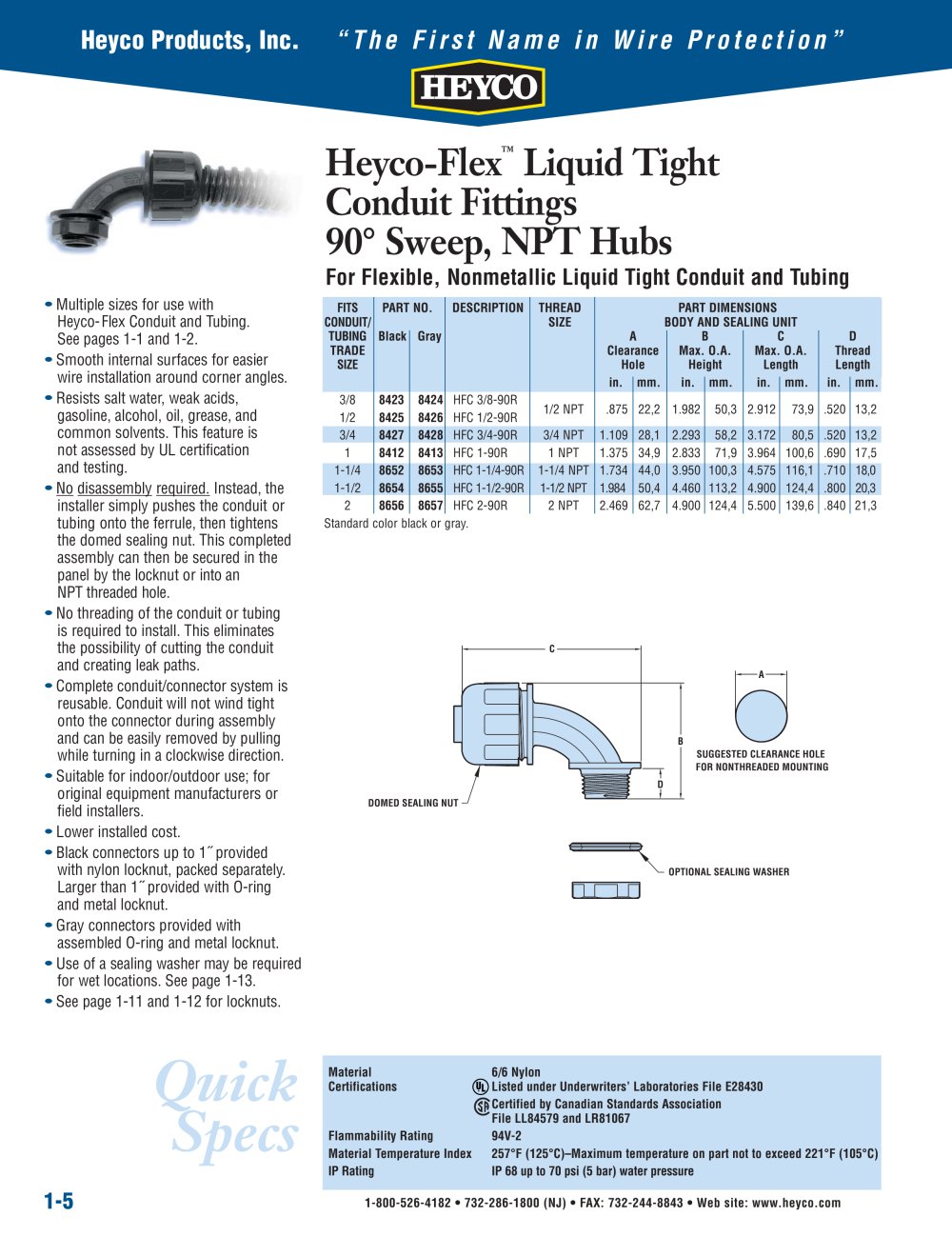

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-5 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com Heyco-Flex™ Liquid Tight Conduit Fittings 90° Sweep, NPT Hubs For Flexible, Nonmetallic Liquid Tight Conduit and Tubing B D SUGGESTED CLEARANCE HOLE A C DOMED SEALING NUT OPTIONAL SEALING WASHER FOR NONTHREADED MOUNTING Material 6/6 Nylon Certifications Listed under Underwriters’ Laboratories File E28430 Certified by Canadian Standards Association File LL84579 and LR81067 Flammability Rating 94V-2 Material Temperature Index 257°F (125°C)–Maximum temperature on part not to exceed 221°F (105°C) IP Rating IP 68 up to 70 psi (5 bar) water pressure FITS PART NO. DESCRIPTION THREAD PART DIMENSIONS CONDUIT/ SIZE BODY AND SEALING UNIT TUBING Black Gray A B C D TRADE Clearance Max. O.A. Max. O.A. Thread SIZE Hole Height Length Length in. mm. in. mm. in. mm. in. mm. 3/8 8423 8424 HFC 3/8-90R 1/2 NPT .875 22,2 1.982 50,3 2.912 73,9 .520 13,2 1/2 8425 8426 HFC 1/2-90R 3/4 8427 8428 HFC 3/4-90R 3/4 NPT 1.109 28,1 2.293 58,2 3.172 80,5 .520 13,2 1 8412 8413 HFC 1-90R 1 NPT 1.375 34,9 2.833 71,9 3.964 100,6 .690 17,5 1-1/4 8652 8653 HFC 1-1/4-90R 1-1/4 NPT 1.734 44,0 3.950 100,3 4.575 116,1 .710 18,0 1-1/2 8654 8655 HFC 1-1/2-90R 1-1/2 NPT 1.984 50,4 4.460 113,2 4.900 124,4 .800 20,3 2 8656 8657 HFC 2-90R 2 NPT 2.469 62,7 4.900 124,4 5.500 139,6 .840 21,3 Standard color black or gray. Quick Specs • Multiple sizes for use with Heyco-Flex Conduit and Tubing. See pages 1-1 and 1-2. • Smooth internal surfaces for easier wire installation around corner angles. • Resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL certification and testing. • No disassembly required. Instead, the installer simply pushes the conduit or tubing onto the ferrule, then tightens the domed sealing nut. This completed assembly can then be secured in the panel by the locknut or into an NPT threaded hole. • No threading of the conduit or tubing is required to install. This eliminates the possibility of cutting the conduit and creating leak paths. • Complete conduit/connector system is reusable. Conduit will not wind tight onto the connector during assembly and can be easily removed by pulling while turning in a clockwise direction. • Suitable for indoor/outdoor use; for original equipment manufacturers or field installers. • Lower installed cost. • Black connectors up to 1½ provided with nylon locknut, packed separately. Larger than 1½ provided with O-ring and metal locknut. • Gray connectors provided with assembled O-ring and metal locknut. • Use of a sealing washer may be required for wet locations. See page 1-13. • See page 1-11 and 1-12 for locknuts.
