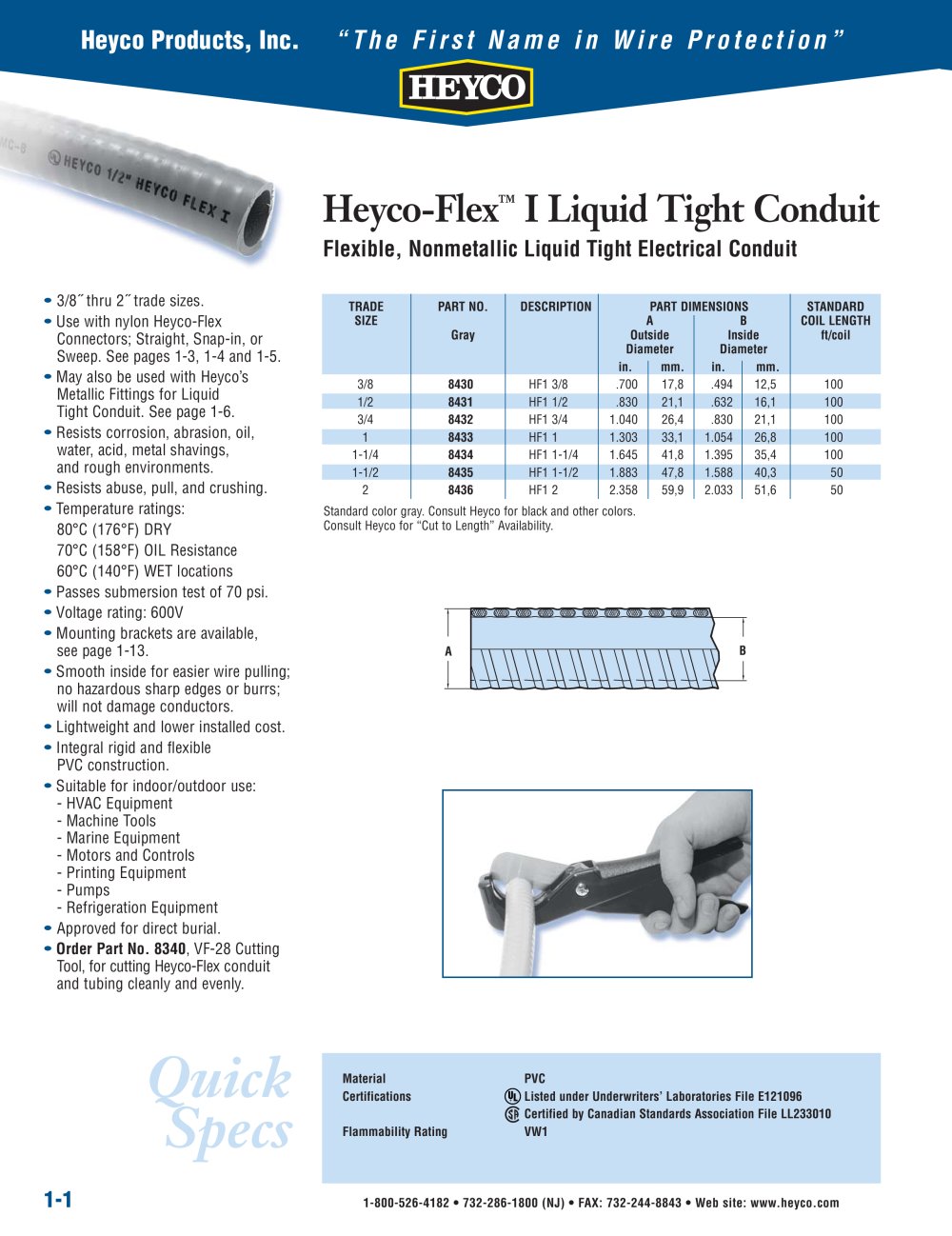

Heyco-Flex™ I Liquid Tight Conduit - Heyco - #1

Heyco Products, Inc. "The First Name in Wire Protection"

Flexible, Nonmetallic Liquid Tight Electrical Conduit

• 3/8" thru 2" trade sizes. Use with nylon Heyco-Flex Connectors; Straight, Snap-in, or Sweep. See pages 1-3, 1-4 and 1-5. May also be used with Heyco's Metallic Fittings for Liquid Tight Conduit. See page 1-6. Resists corrosion, abrasion, oil, water, acid, metal shavings, and rough environments. Resists abuse, pull, and crushing. Temperature ratings: 80°C (176°F) DRY 70°C (158°F) OIL Resistance 60°C (140°F) WET locations Passes submersion test of 70 psi. Voltage rating: 600V Mounting brackets are available, see page 1-13.

Smooth inside for easier wire pulling;

no hazardous sharp edges or burrs;

will not damage conductors.

Lightweight and lower installed cost.

Integral rigid and flexible

PVC construction.

Suitable for indoor/outdoor use:

- HVAC Equipment

- Machine Tools

- Marine Equipment

- Motors and Controls

- Printing Equipment

- Pumps

- Refrigeration Equipment Approved for direct burial.

Order Part No. 8340, VF-28 Cutting Tool, for cutting Heyco-Flex conduit and tubing cleanly and evenly.

Standard color gray. Consult Heyco for black and other colors. Consult Heyco for "Cut to Length" Availability.

Material PVC

Certifications (K) Listed under Underwriters' Laboratories File E121096

@ Certified by Canadian Standards Association File LL233010 Flammability Rating VW1

1-1
