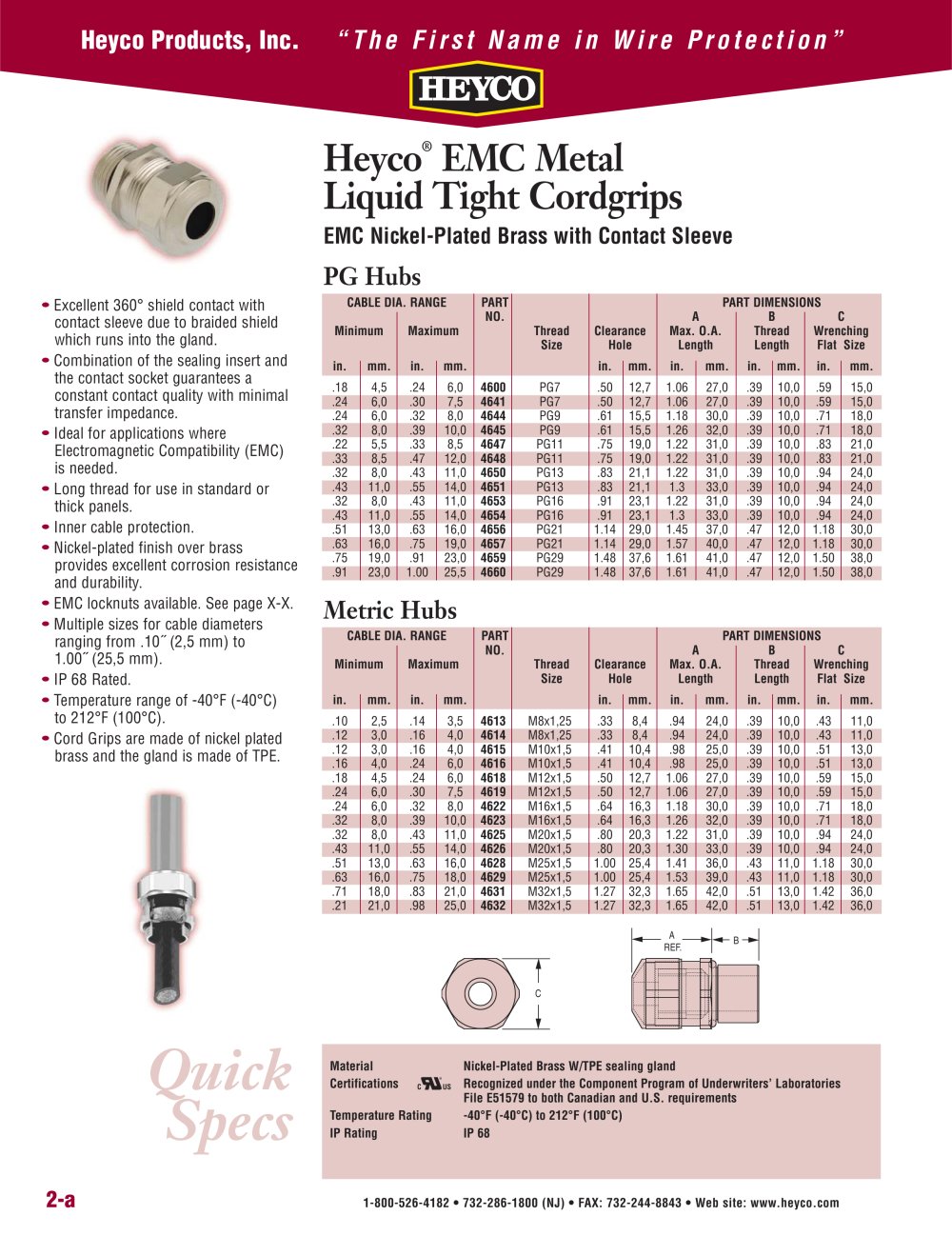

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 2-a 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com Quick Specs Heyco® EMC Metal Liquid Tight Cordgrips EMC Nickel-Plated Brass with Contact Sleeve CABLE DIA. RANGE PART PART DIMENSIONS NO. A B C Minimum Maximum Thread Clearance Max. O.A. Thread Wrenching Size Hole Length Length Flat Size in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. .18 4,5 .24 6,0 4600 PG7 .50 12,7 1.06 27,0 .39 10,0 .59 15,0 .24 6,0 .30 7,5 4641 PG7 .50 12,7 1.06 27,0 .39 10,0 .59 15,0 .24 6,0 .32 8,0 4644 PG9 .61 15,5 1.18 30,0 .39 10,0 .71 18,0 .32 8,0 .39 10,0 4645 PG9 .61 15,5 1.26 32,0 .39 10,0 .71 18,0 .22 5,5 .33 8,5 4647 PG11 .75 19,0 1.22 31,0 .39 10,0 .83 21,0 .33 8,5 .47 12,0 4648 PG11 .75 19,0 1.22 31,0 .39 10,0 .83 21,0 .32 8,0 .43 11,0 4650 PG13 .83 21,1 1.22 31,0 .39 10,0 .94 24,0 .43 11,0 .55 14,0 4651 PG13 .83 21,1 1.3 33,0 .39 10,0 .94 24,0 .32 8,0 .43 11,0 4653 PG16 .91 23,1 1.22 31,0 .39 10,0 .94 24,0 .43 11,0 .55 14,0 4654 PG16 .91 23,1 1.3 33,0 .39 10,0 .94 24,0 .51 13,0 .63 16,0 4656 PG21 1.14 29,0 1.45 37,0 .47 12,0 1.18 30,0 .63 16,0 .75 19,0 4657 PG21 1.14 29,0 1.57 40,0 .47 12,0 1.18 30,0 .75 19,0 .91 23,0 4659 PG29 1.48 37,6 1.61 41,0 .47 12,0 1.50 38,0 .91 23,0 1.00 25,5 4660 PG29 1.48 37,6 1.61 41,0 .47 12,0 1.50 38,0 Metric Hubs CABLE DIA. RANGE PART PART DIMENSIONS NO. A B C Minimum Maximum Thread Clearance Max. O.A. Thread Wrenching Size Hole Length Length Flat Size in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. .10 2,5 .14 3,5 4613 M8x1,25 .33 8,4 .94 24,0 .39 10,0 .43 11,0 .12 3,0 .16 4,0 4614 M8x1,25 .33 8,4 .94 24,0 .39 10,0 .43 11,0 .12 3,0 .16 4,0 4615 M10x1,5 .41 10,4 .98 25,0 .39 10,0 .51 13,0 .16 4,0 .24 6,0 4616 M10x1,5 .41 10,4 .98 25,0 .39 10,0 .51 13,0 .18 4,5 .24 6,0 4618 M12x1,5 .50 12,7 1.06 27,0 .39 10,0 .59 15,0 .24 6,0 .30 7,5 4619 M12x1,5 .50 12,7 1.06 27,0 .39 10,0 .59 15,0 .24 6,0 .32 8,0 4622 M16x1,5 .64 16,3 1.18 30,0 .39 10,0 .71 18,0 .32 8,0 .39 10,0 4623 M16x1,5 .64 16,3 1.26 32,0 .39 10,0 .71 18,0 .32 8,0 .43 11,0 4625 M20x1,5 .80 20,3 1.22 31,0 .39 10,0 .94 24,0 .43 11,0 .55 14,0 4626 M20x1,5 .80 20,3 1.30 33,0 .39 10,0 .94 24,0 .51 13,0 .63 16,0 4628 M25x1,5 1.00 25,4 1.41 36,0 .43 11,0 1.18 30,0 .63 16,0 .75 18,0 4629 M25x1,5 1.00 25,4 1.53 39,0 .43 11,0 1.18 30,0 .71 18,0 .83 21,0 4631 M32x1,5 1.27 32,3 1.65 42,0 .51 13,0 1.42 36,0 .21 21,0 .98 25,0 4632 M32x1,5 1.27 32,3 1.65 42,0 .51 13,0 1.42 36,0 PG Hubs • Excellent 360° shield contact with contact sleeve due to braided shield which runs into the gland. • Combination of the sealing insert and the contact socket guarantees a constant contact quality with minimal transfer impedance. • Ideal for applications where Electromagnetic Compatibility (EMC) is needed. • Long thread for use in standard or thick panels. • Inner cable protection. • Nickel-plated finish over brass provides excellent corrosion resistance and durability. • EMC locknuts available. See page X-X. • Multiple sizes for cable diameters ranging from .10½ (2,5 mm) to 1.00½ (25,5 mm). • IP 68 Rated. • Temperature range of -40°F (-40°C) to 212°F (100°C). • Cord Grips are made of nickel plated brass and the gland is made of TPE. A REF. B C Material Nickel-Plated Brass W/TPE sealing gland Certifications Recognized under the Component Program of Underwriters’ Laboratories File E51579 to both Canadian and U.S. requirements Temperature Rating -40°F (-40°C) to 212°F (100°C) IP Rating IP 68 C US ®
