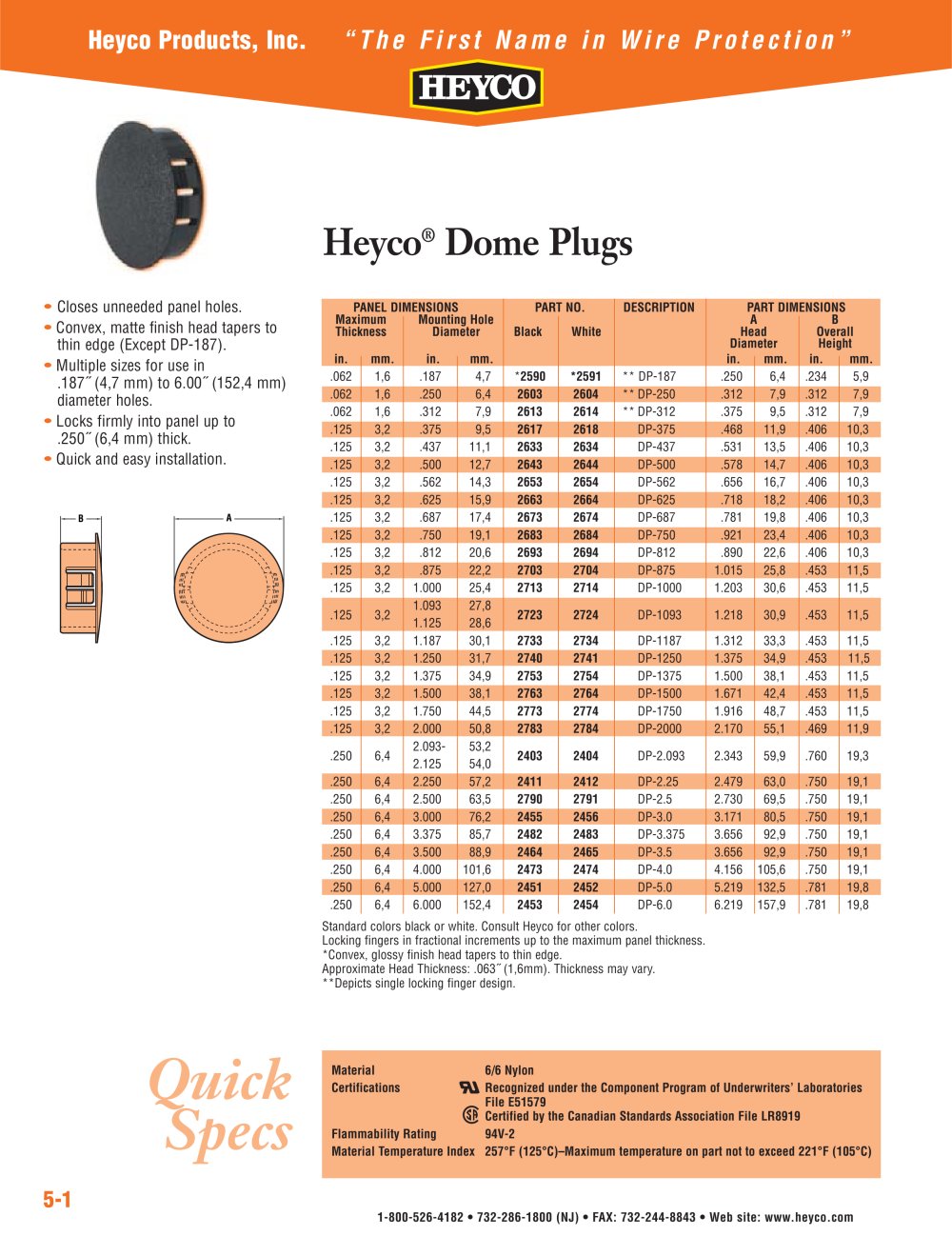

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 5-1 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com Quick Specs Heyco® Dome Plugs • Closes unneeded panel holes. • Convex, matte finish head tapers to thin edge (Except DP-187). • Multiple sizes for use in .187½ (4,7 mm) to 6.00½ (152,4 mm) diameter holes. • Locks firmly into panel up to .250½ (6,4 mm) thick. • Quick and easy installation. PANEL DIMENSIONS PART NO. DESCRIPTION PART DIMENSIONS Maximum Mounting Hole A B Thickness Diameter Black White Head Overall Diameter Height in. mm. in. mm. in. mm. in. mm. .062 1,6 .187 4,7 *2590 *2591 ** DP-187 .250 6,4 .234 5,9 .062 1,6 .250 6,4 2603 2604 ** DP-250 .312 7,9 .312 7,9 .062 1,6 .312 7,9 2613 2614 ** DP-312 .375 9,5 .312 7,9 .125 3,2 .375 9,5 2617 2618 DP-375 .468 11,9 .406 10,3 .125 3,2 .437 11,1 2633 2634 DP-437 .531 13,5 .406 10,3 .125 3,2 .500 12,7 2643 2644 DP-500 .578 14,7 .406 10,3 .125 3,2 .562 14,3 2653 2654 DP-562 .656 16,7 .406 10,3 .125 3,2 .625 15,9 2663 2664 DP-625 .718 18,2 .406 10,3 .125 3,2 .687 17,4 2673 2674 DP-687 .781 19,8 .406 10,3 .125 3,2 .750 19,1 2683 2684 DP-750 .921 23,4 .406 10,3 .125 3,2 .812 20,6 2693 2694 DP-812 .890 22,6 .406 10,3 .125 3,2 .875 22,2 2703 2704 DP-875 1.015 25,8 .453 11,5 .125 3,2 1.000 25,4 2713 2714 DP-1000 1.203 30,6 .453 11,5 .125 3,2 1.093 27,8 2723 2724 DP-1093 1.218 30,9 .453 11,5 1.125 28,6 .125 3,2 1.187 30,1 2733 2734 DP-1187 1.312 33,3 .453 11,5 .125 3,2 1.250 31,7 2740 2741 DP-1250 1.375 34,9 .453 11,5 .125 3,2 1.375 34,9 2753 2754 DP-1375 1.500 38,1 .453 11,5 .125 3,2 1.500 38,1 2763 2764 DP-1500 1.671 42,4 .453 11,5 .125 3,2 1.750 44,5 2773 2774 DP-1750 1.916 48,7 .453 11,5 .125 3,2 2.000 50,8 2783 2784 DP-2000 2.170 55,1 .469 11,9 .250 6,4 2.093- 53,2 2403 2404 DP-2.093 2.343 59,9 .760 19,3 2.125 54,0 .250 6,4 2.250 57,2 2411 2412 DP-2.25 2.479 63,0 .750 19,1 .250 6,4 2.500 63,5 2790 2791 DP-2.5 2.730 69,5 .750 19,1 .250 6,4 3.000 76,2 2455 2456 DP-3.0 3.171 80,5 .750 19,1 .250 6,4 3.375 85,7 2482 2483 DP-3.375 3.656 92,9 .750 19,1 .250 6,4 3.500 88,9 2464 2465 DP-3.5 3.656 92,9 .750 19,1 .250 6,4 4.000 101,6 2473 2474 DP-4.0 4.156 105,6 .750 19,1 .250 6,4 5.000 127,0 2451 2452 DP-5.0 5.219 132,5 .781 19,8 .250 6,4 6.000 152,4 2453 2454 DP-6.0 6.219 157,9 .781 19,8 Standard colors black or white. Consult Heyco for other colors. Locking fingers in fractional increments up to the maximum panel thickness. *Convex, glossy finish head tapers to thin edge. Approximate Head Thickness: .063½ (1,6mm). Thickness may vary. **Depicts single locking finger design. Material 6/6 Nylon Certifications Recognized under the Component Program of Underwriters’ Laboratories File E51579 Certified by the Canadian Standards Association File LR8919 Flammability Rating 94V-2 Material Temperature Index 257°F (125°C)–Maximum temperature on part not to exceed 221°F (105°C) B A
