Heyco® Cable Wrap Standard Cut–Nylon

Heyco® Cable Wrap Standard Cut–Nylon
1Pages

Catalog excerpts

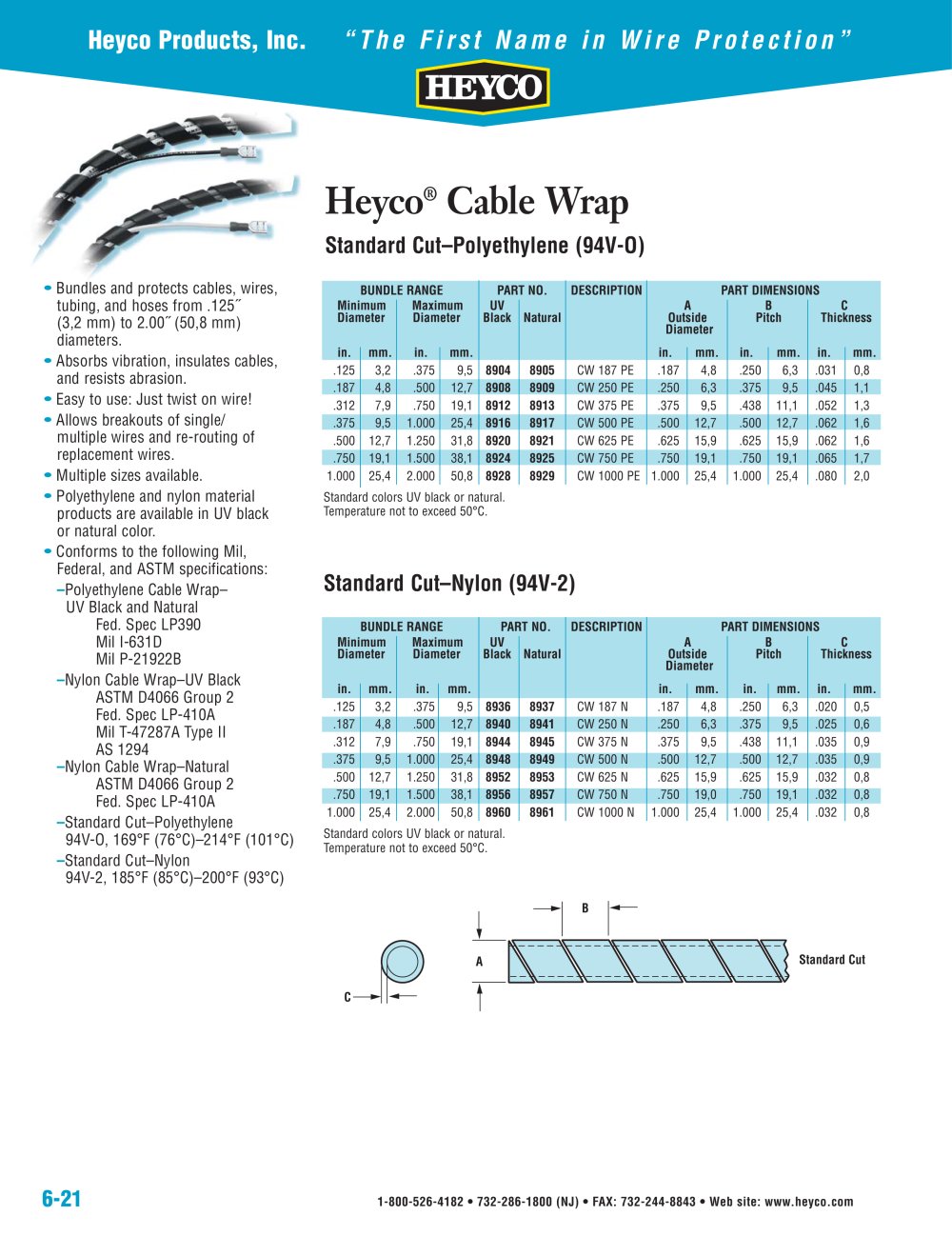

Heyco® Cable Wrap Standard Cut–Nylon - 1

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 6-21 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com BUNDLE RANGE PART NO. DESCRIPTION PART DIMENSIONS Minimum Maximum UV A B C Diameter Diameter Black Natural Outside Pitch Thickness Diameter in. mm. in. mm. in. mm. in. mm. in. mm. .125 3,2 .375 9,5 8904 8905 CW 187 PE .187 4,8 .250 6,3 .031 0,8 .187 4,8 .500 12,7 8908 8909 CW 250 PE .250 6,3 .375 9,5 .045 1,1 .312 7,9 .750 19,1 8912 8913 CW 375 PE .375 9,5 .438 11,1 .052 1,3 .375 9,5 1.000 25,4 8916 8917 CW 500 PE .500 12,7 .500 12,7 .062 1,6 .500 12,7 1.250 31,8 8920 8921 CW 625 PE .625 15,9 .625 15,9 .062 1,6 .750 19,1 1.500 38,1 8924 8925 CW 750 PE .750 19,1 .750 19,1 .065 1,7 1.000 25,4 2.000 50,8 8928 8929 CW 1000 PE 1.000 25,4 1.000 25,4 .080 2,0 Standard colors UV black or natural. Temperature not to exceed 50°C. Heyco® Cable Wrap Standard Cut–Polyethylene (94V-O) • Bundles and protects cables, wires, tubing, and hoses from .125½ (3,2 mm) to 2.00½ (50,8 mm) diameters. • Absorbs vibration, insulates cables, and resists abrasion. • Easy to use: Just twist on wire! • Allows breakouts of single/ multiple wires and re-routing of replacement wires. • Multiple sizes available. • Polyethylene and nylon material products are available in UV black or natural color. • Conforms to the following Mil, Federal, and ASTM specifications: –Polyethylene Cable Wrap– UV Black and Natural Fed. Spec LP390 Mil I-631D Mil P-21922B –Nylon Cable Wrap–UV Black ASTM D4066 Group 2 Fed. Spec LP-410A Mil T-47287A Type II AS 1294 –Nylon Cable Wrap –Natural ASTM D4066 Group 2 Fed. Spec LP-410A –Standard Cut–Polyethylene 94V-O, 169°F (76°C)–214°F (101°C) –Standard Cut–Nylon 94V-2, 185°F (85°C)–200°F (93°C) BUNDLE RANGE PART NO. DESCRIPTION PART DIMENSIONS Minimum Maximum UV A B C Diameter Diameter Black Natural Outside Pitch Thickness Diameter in. mm. in. mm. in. mm. in. mm. in. mm. .125 3,2 .375 9,5 8936 8937 CW 187 N .187 4,8 .250 6,3 .020 0,5 .187 4,8 .500 12,7 8940 8941 CW 250 N .250 6,3 .375 9,5 .025 0,6 .312 7,9 .750 19,1 8944 8945 CW 375 N .375 9,5 .438 11,1 .035 0,9 .375 9,5 1.000 25,4 8948 8949 CW 500 N .500 12,7 .500 12,7 .035 0,9 .500 12,7 1.250 31,8 8952 8953 CW 625 N .625 15,9 .625 15,9 .032 0,8 .750 19,1 1.500 38,1 8956 8957 CW 750 N .750 19,0 .750 19,1 .032 0,8 1.000 25,4 2.000 50,8 8960 8961 CW 1000 N 1.000 25,4 1.000 25,4 .032 0,8 Standard colors UV black or natural. Temperature not to exceed 50°C. Standard Cut–Nylon (94V-2) C A B Standard Cut
