Heyco Products, Inc. "The First Name in Wire Protection"

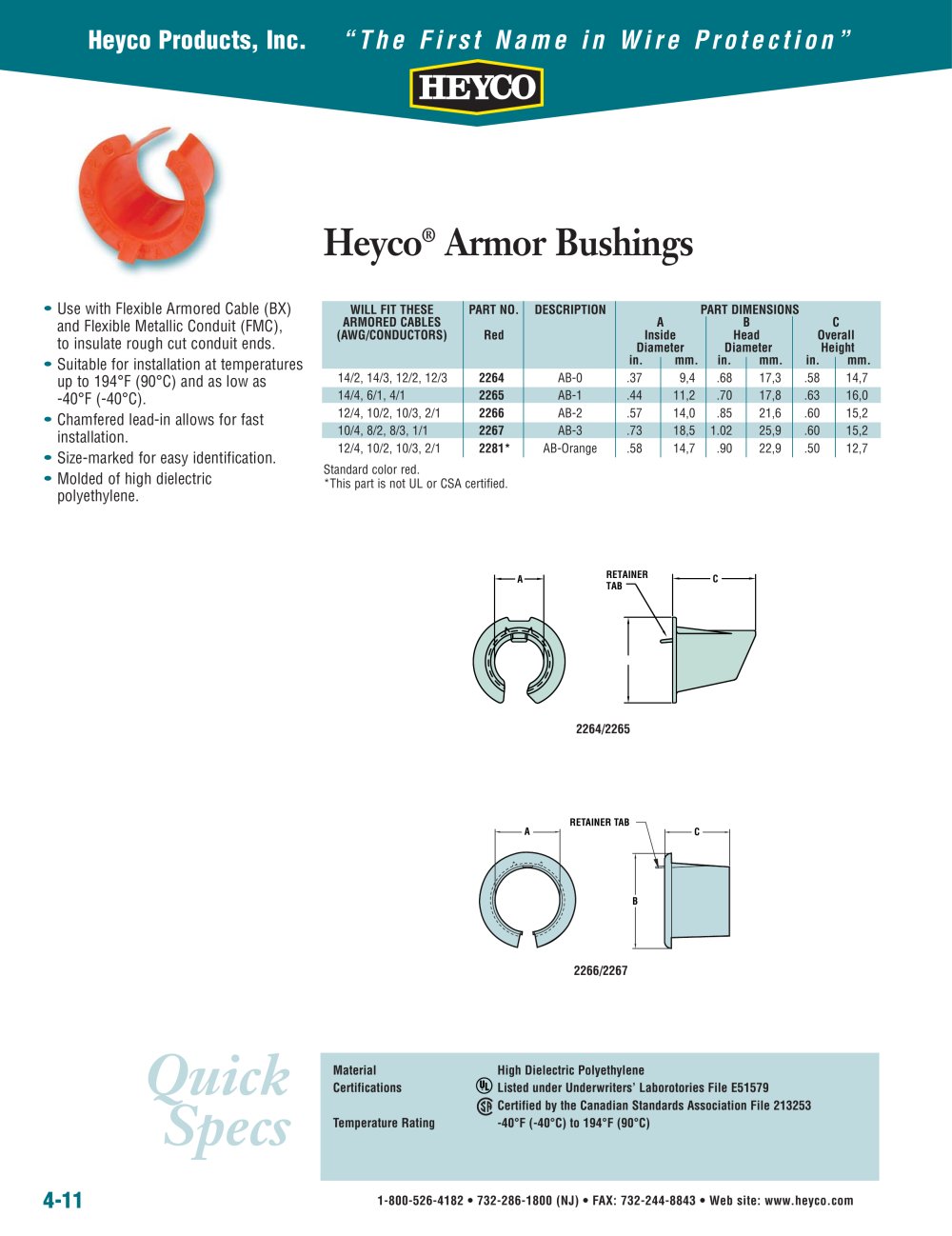

Heyco® Armor Bushings


WILL FIT THESE ARMORED CABLES (AWG/CONDUCTORS)	PART NO. Red	DESCRIPTION	A Ins Diam in.	P I de îeter mm.	ART DI He Dial in.	ENSION ad neter mm.	S Ove He in.	"rail ight mm.
14/2, 14/3, 12/2, 12/3	2264	AB-0	.37	9,4	.68	17,3	.58	14,7
14/4, 6/1, 4/1	2265	AB-1	.44	11,2	.70	17,8	.63	16,0
12/4, 10/2, 10/3, 2/1	2266	AB-2	.57	14,0	.85	21,6	.60	15,2
10/4, 8/2, 8/3, 1/1	2267	AB-3	.73	18,5	1.02	25,9	.60	15,2
12/4, 10/2, 10/3, 2/1	2281*	AB-Orange	.58	14,7	.90	22,9	.50	12,7

Use with Flexible Armored Cable (BX) and Flexible Metallic Conduit (FMC), to insulate rough cut conduit ends. Suitable for installation at temperatures up to 194°F (90°C) and as low as -40°F (-40°C).

Chamfered lead-in allows for fast installation.

Size-marked for easy identification. Molded of high dielectric polyethylene.

Standard color red.

*This part is not UL or CSA certified.

Quick Specs

Material High Dielectric Polyethylene

Certifications Listed under Underwriters' Laborotories File E51579

Certified by the Canadian Standards Association File 213253 Temperature Rating -40°F (-40°C) to 194°F (90°C)

1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com
