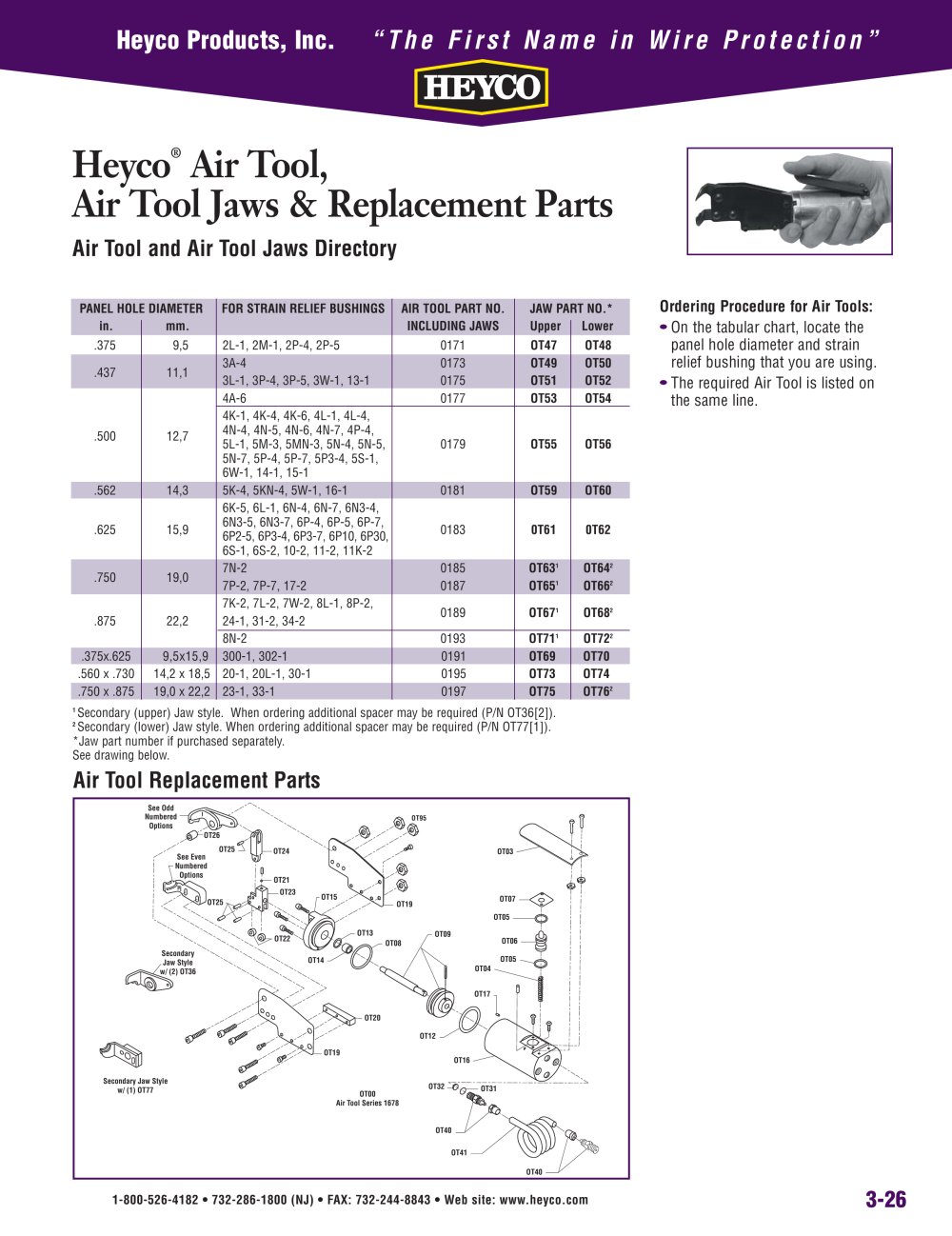

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 3-26 Heyco® Air Tool, Air Tool Jaws & Replacement Parts Air Tool and Air Tool Jaws Directory Ordering Procedure for Air Tools: • On the tabular chart, locate the panel hole diameter and strain relief bushing that you are using. • The required Air Tool is listed on the same line. PANEL HOLE DIAMETER FOR STRAIN RELIEF BUSHINGS AIR TOOL PART NO. JAW PART NO.* in. mm. INCLUDING JAWS Upper Lower .375 9,5 2L-1, 2M-1, 2P-4, 2P-5 0171 OT47 OT48 .437 11,1 3A-4 0173 OT49 OT50 3L-1, 3P-4, 3P-5, 3W-1, 13-1 0175 OT51 OT52 4A-6 0177 OT53 OT54 4K-1, 4K-4, 4K-6, 4L-1, 4L-4, .500 12,7 4N-4, 4N-5, 4N-6, 4N-7, 4P-4, 5L-1, 5M-3, 5MN-3, 5N-4, 5N-5, 0179 OT55 OT56 5N-7, 5P-4, 5P-7, 5P3-4, 5S-1, 6W-1, 14-1, 15-1 .562 14,3 5K-4, 5KN-4, 5W-1, 16-1 0181 OT59 OT60 6K-5, 6L-1, 6N-4, 6N-7, 6N3-4, .625 15,9 6N3-5, 6N3-7, 6P-4, 6P-5, 6P-7, 6P2-5, 6P3-4, 6P3-7, 6P10, 6P30, 0183 0T61 0T62 6S-1, 6S-2, 10-2, 11-2, 11K-2 .750 19,0 7N-2 0185 OT631 OT642 7P-2, 7P-7, 17-2 0187 OT651 OT662 7K-2, 7L-2, 7W-2, 8L-1, 8P-2, 0189 OT671 OT682 .875 22,2 24-1, 31-2, 34-2 8N-2 0193 OT711 OT722 .375x.625 9,5x15,9 300-1, 302-1 0191 OT69 OT70 .560 x .730 14,2 x 18,5 20-1, 20L-1, 30-1 0195 OT73 OT74 .750 x .875 19,0 x 22,2 23-1, 33-1 0197 OT75 OT762 1 Secondary (upper) Jaw style. When ordering additional spacer may be required (P/N OT36[2]). 2 Secondary (lower) Jaw style. When ordering additional spacer may be required (P/N OT77[1]). *Jaw part number if purchased separately. See drawing below. See Odd Numbered Options OT26 OT25 OT24 OT25 OT21 OT23 OT22 OT13 OT08 OT14 OT15 OT19 OT09 OT12 OT17 See Even Numbered Options Secondary Jaw Style w/ (2) OT36 Secondary Jaw Style w/ (1) OT77 OT19 OT20 OT00 Air Tool Series 1678 OT16 OT04 OT05 OT06 OT05 OT07 OT03 OT40 OT41 OT40 OT32 OT31 Air Tool Replacement Parts OT95
