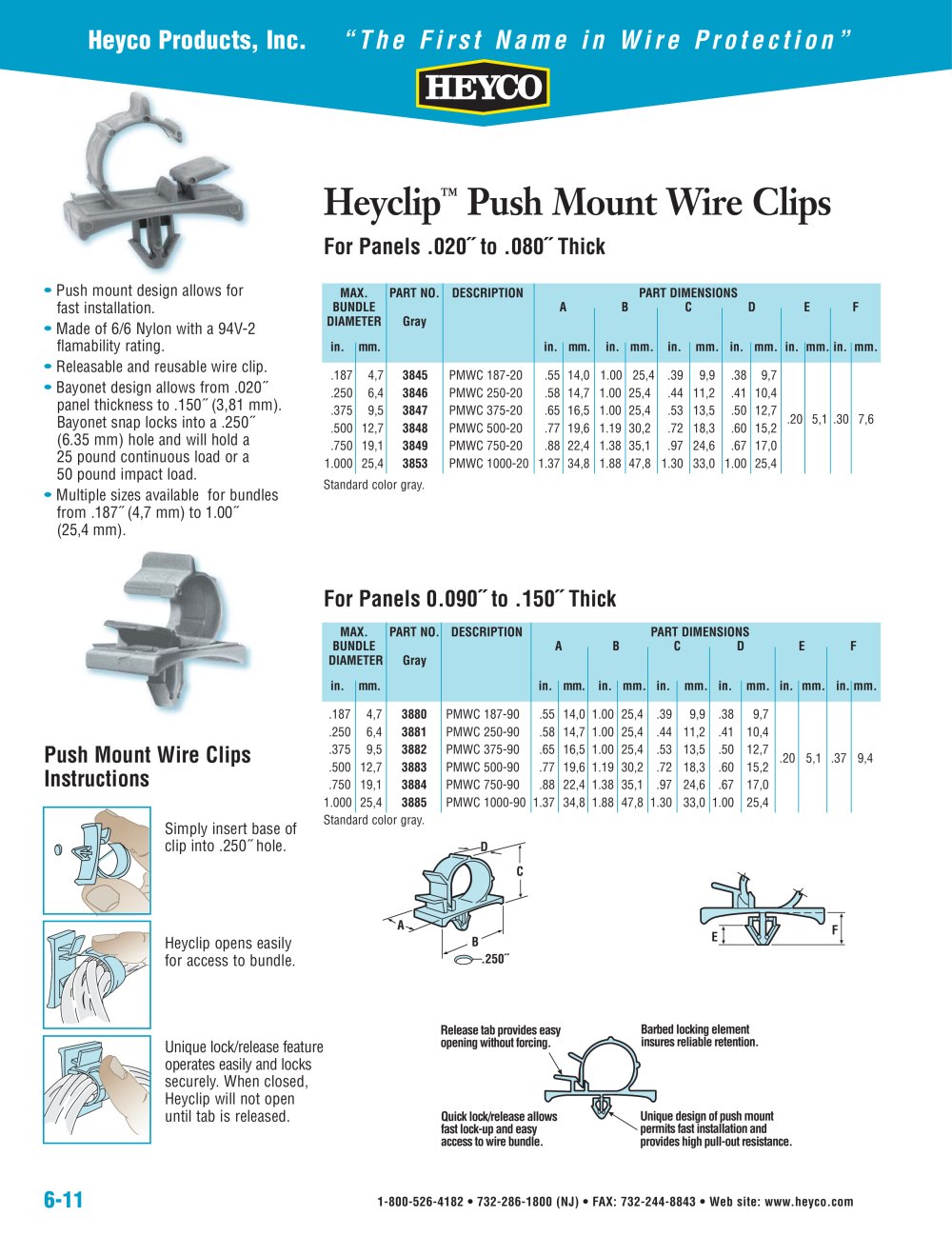

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 6-11 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com Heyclip™ Push Mount Wire Clips For Panels .020½ to .080½ Thick • Push mount design allows for fast installation. • Made of 6/6 Nylon with a 94V-2 flamability rating. • Releasable and reusable wire clip. • Bayonet design allows from .020½ panel thickness to .150½ (3,81 mm). Bayonet snap locks into a .250½ (6.35 mm) hole and will hold a 25 pound continuous load or a 50 pound impact load. • Multiple sizes available for bundles from .187½ (4,7 mm) to 1.00½ (25,4 mm). MAX. PART NO. DESCRIPTION PART DIMENSIONS BUNDLE A B C D E F DIAMETER Gray in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. .187 4,7 3845 PMWC 187-20 .55 14,0 1.00 25,4 .39 9,9 .38 9,7 .250 6,4 3846 PMWC 250-20 .58 14,7 1.00 25,4 .44 11,2 .41 10,4 .375 9,5 3847 PMWC 375-20 .65 16,5 1.00 25,4 .53 13,5 .50 12,7 .20 5,1 .30 7,6 .500 12,7 3848 PMWC 500-20 .77 19,6 1.19 30,2 .72 18,3 .60 15,2 .750 19,1 3849 PMWC 750-20 .88 22,4 1.38 35,1 .97 24,6 .67 17,0 1.000 25,4 3853 PMWC 1000-20 1.37 34,8 1.88 47,8 1.30 33,0 1.00 25,4 Standard color gray. For Panels 0.090½ to .150½ Thick MAX. PART NO. DESCRIPTION PART DIMENSIONS BUNDLE A B C D E F DIAMETER Gray in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. .187 4,7 3880 PMWC 187-90 .55 14,0 1.00 25,4 .39 9,9 .38 9,7 .250 6,4 3881 PMWC 250-90 .58 14,7 1.00 25,4 .44 11,2 .41 10,4 .375 9,5 3882 PMWC 375-90 .65 16,5 1.00 25,4 .53 13,5 .50 12,7 .20 5,1 .37 9,4 .500 12,7 3883 PMWC 500-90 .77 19,6 1.19 30,2 .72 18,3 .60 15,2 .750 19,1 3884 PMWC 750-90 .88 22,4 1.38 35,1 .97 24,6 .67 17,0 1.000 25,4 3885 PMWC 1000-90 1.37 34,8 1.88 47,8 1.30 33,0 1.00 25,4 Standard color gray. Release tab provides easy opening without forcing. Barbed locking element insures reliable retention. Quick lock/release allows fast lock-up and easy access to wire bundle. Unique design of push mount permits fast installation and provides high pull-out resistance. Push Mount Wire Clips Instructions Simply insert base of clip into .250½ hole. Heyclip opens easily for access to bundle. Unique lock/release feature operates easily and locks securely. When closed, Heyclip will not open until tab is released. A .250½ C D B E F
