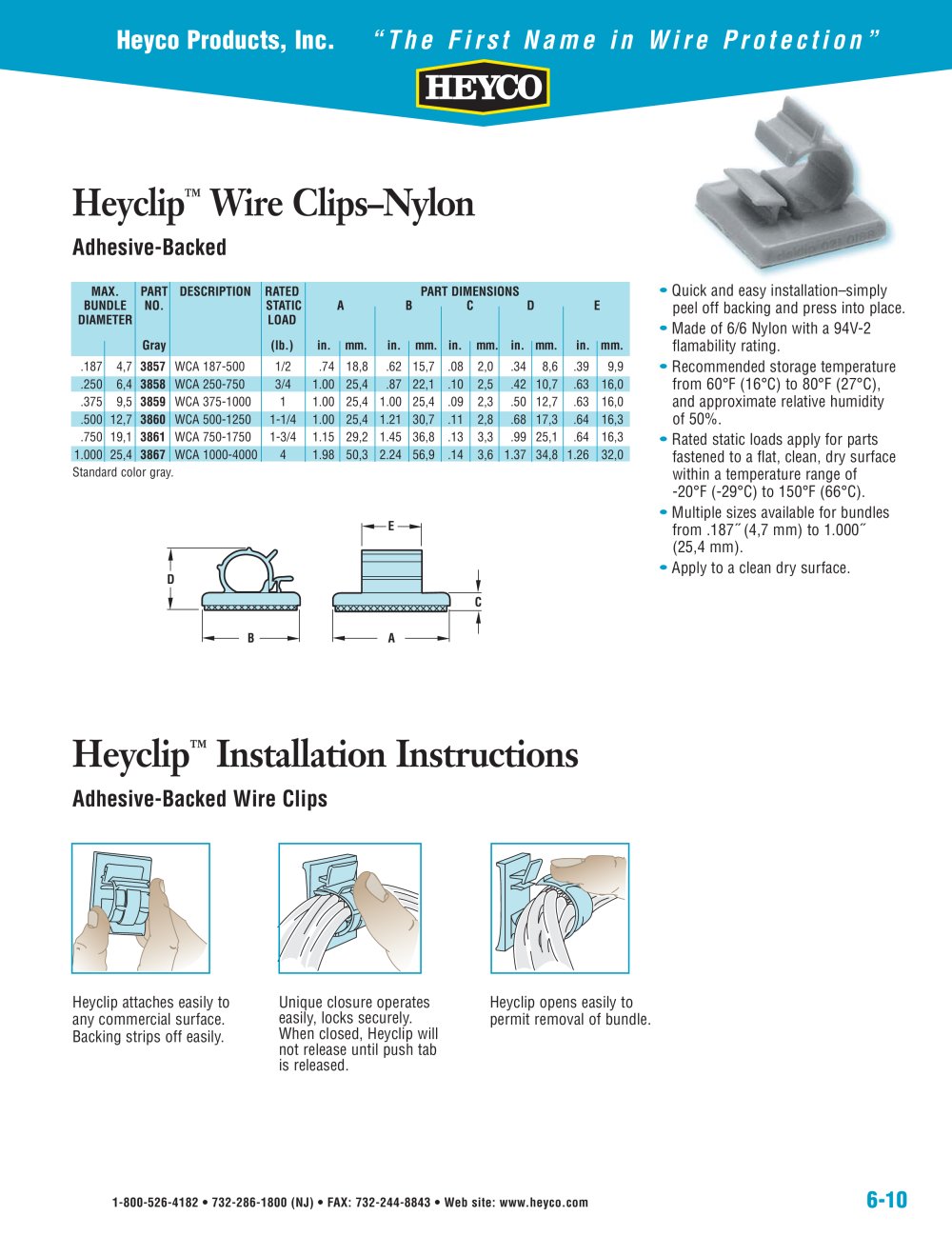

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 6-10 Heyclip attaches easily to any commercial surface. Backing strips off easily. Heyclip™ Installation Instructions Adhesive-Backed Wire Clips Unique closure operates easily, locks securely. When closed, Heyclip will not release until push tab is released. Heyclip opens easily to permit removal of bundle. MAX. PART DESCRIPTION RATED PART DIMENSIONS BUNDLE NO. STATIC A B C D E DIAMETER LOAD Gray (lb.) in. mm. in. mm. in. mm. in. mm. in. mm. .187 4,7 3857 WCA 187-500 1/2 .74 18,8 .62 15,7 .08 2,0 .34 8,6 .39 9,9 .250 6,4 3858 WCA 250-750 3/4 1.00 25,4 .87 22,1 .10 2,5 .42 10,7 .63 16,0 .375 9,5 3859 WCA 375-1000 1 1.00 25,4 1.00 25,4 .09 2,3 .50 12,7 .63 16,0 .500 12,7 3860 WCA 500-1250 1-1/4 1.00 25,4 1.21 30,7 .11 2,8 .68 17,3 .64 16,3 .750 19,1 3861 WCA 750-1750 1-3/4 1.15 29,2 1.45 36,8 .13 3,3 .99 25,1 .64 16,3 1.000 25,4 3867 WCA 1000-4000 4 1.98 50,3 2.24 56,9 .14 3,6 1.37 34,8 1.26 32,0 Standard color gray. D C B A E • Quick and easy installation–simply peel off backing and press into place. • Made of 6/6 Nylon with a 94V-2 flamability rating. • Recommended storage temperature from 60°F (16°C) to 80°F (27°C), and approximate relative humidity of 50%. • Rated static loads apply for parts fastened to a flat, clean, dry surface within a temperature range of -20°F (-29°C) to 150°F (66°C). • Multiple sizes available for bundles from .187½ (4,7 mm) to 1.000½ (25,4 mm). • Apply to a clean dry surface. Heyclip™ Wire Clips–Nylon Adhesive-Backed
