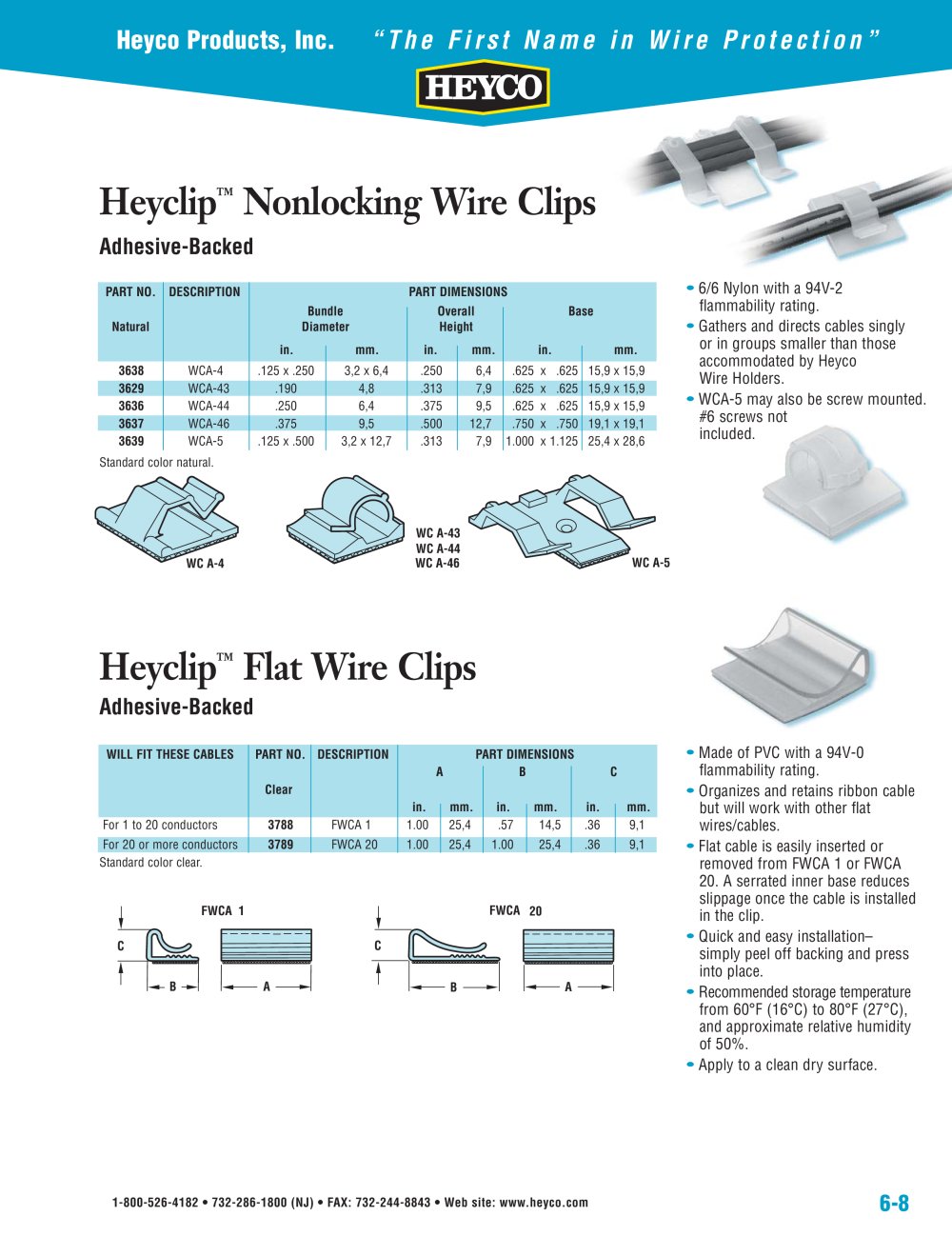

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 6-8 PART NO. DESCRIPTION PART DIMENSIONS Bundle Overall Base Natural Diameter Height in. mm. in. mm. in. mm. 3638 WCA-4 .125 x .250 3,2 x 6,4 .250 6,4 .625 x .625 15,9 x 15,9 3629 WCA-43 .190 4,8 .313 7,9 .625 x .625 15,9 x 15,9 3636 WCA-44 .250 6,4 .375 9,5 .625 x .625 15,9 x 15,9 3637 WCA-46 .375 9,5 .500 12,7 .750 x .750 19,1 x 19,1 3639 WCA-5 .125 x .500 3,2 x 12,7 .313 7,9 1.000 x 1.125 25,4 x 28,6 Standard color natural. Heyclip™ Nonlocking Wire Clips Adhesive-Backed • 6/6 Nylon with a 94V-2 flammability rating. • Gathers and directs cables singly or in groups smaller than those accommodated by Heyco Wire Holders. • WCA-5 may also be screw mounted. #6 screws not included. WILL FIT THESE CABLES PART NO. DESCRIPTION PART DIMENSIONS A B C Clear in. mm. in. mm. in. mm. For 1 to 20 conductors 3788 FWCA 1 1.00 25,4 .57 14,5 .36 9,1 For 20 or more conductors 3789 FWCA 20 1.00 25,4 1.00 25,4 .36 9,1 Standard color clear. Heyclip™ Flat Wire Clips Adhesive-Backed • Made of PVC with a 94V-0 flammability rating. • Organizes and retains ribbon cable but will work with other flat wires/cables. • Flat cable is easily inserted or removed from FWCA 1 or FWCA 20. A serrated inner base reduces slippage once the cable is installed in the clip. • Quick and easy installation– simply peel off backing and press into place. • Recommended storage temperature from 60°F (16°C) to 80°F (27°C), and approximate relative humidity of 50%. • Apply to a clean dry surface. WC A-4 WC A-43 WC A-44 WC A-46 WC A-5 B C A FWCA 1 C B A FWCA 20
