Flexicon Nylon Conduit Fittings Straight-Thru, PG Hub
1Pages

{{requestButtons}}

Catalog excerpts

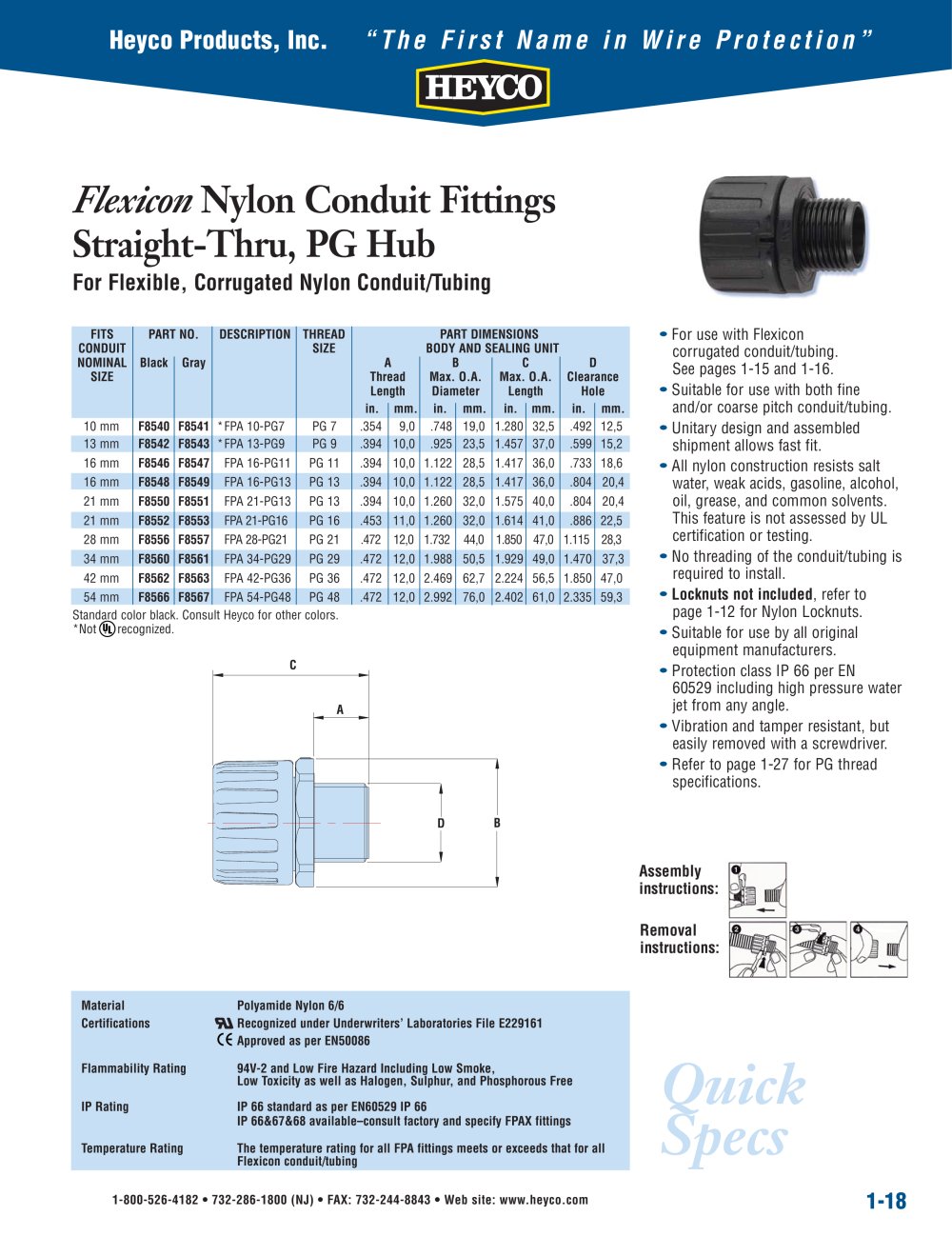

Flexicon Nylon Conduit Fittings Straight-Thru, PG Hub - 1

1-18 Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” Quick Specs D C B A Material Polyamide Nylon 6/6 Certifications Recognized under Underwriters’ Laboratories File E229161 Approved as per EN50086 Flammability Rating 94V-2 and Low Fire Hazard Including Low Smoke, Low Toxicity as well as Halogen, Sulphur, and Phosphorous Free IP Rating IP 66 standard as per EN60529 IP 66 IP 66&67&68 available–consult factory and specify FPAX fittings Temperature Rating The temperature rating for all FPA fittings meets or exceeds that for all Flexicon conduit/tubing FITS PART NO. DESCRIPTION THREAD PART DIMENSIONS CONDUIT SIZE BODY AND SEALING UNIT NOMINAL Black Gray A B C D SIZE Thread Max. O.A. Max. O.A. Clearance Length Diameter Length Hole in. mm. in. mm. in. mm. in. mm. 10 mm F8540 F8541 *FPA 10-PG7 PG 7 .354 9,0 .748 19,0 1.280 32,5 .492 12,5 13 mm F8542 F8543 *FPA 13-PG9 PG 9 .394 10,0 .925 23,5 1.457 37,0 .599 15,2 16 mm F8546 F8547 FPA 16-PG11 PG 11 .394 10,0 1.122 28,5 1.417 36,0 .733 18,6 16 mm F8548 F8549 FPA 16-PG13 PG 13 .394 10,0 1.122 28,5 1.417 36,0 .804 20,4 21 mm F8550 F8551 FPA 21-PG13 PG 13 .394 10,0 1.260 32,0 1.575 40,0 .804 20,4 21 mm F8552 F8553 FPA 21-PG16 PG 16 .453 11,0 1.260 32,0 1.614 41,0 .886 22,5 28 mm F8556 F8557 FPA 28-PG21 PG 21 .472 12,0 1.732 44,0 1.850 47,0 1.115 28,3 34 mm F8560 F8561 FPA 34-PG29 PG 29 .472 12,0 1.988 50,5 1.929 49,0 1.470 37,3 42 mm F8562 F8563 FPA 42-PG36 PG 36 .472 12,0 2.469 62,7 2.224 56,5 1.850 47,0 54 mm F8566 F8567 FPA 54-PG48 PG 48 .472 12,0 2.992 76,0 2.402 61,0 2.335 59,3 Standard color black. Consult Heyco for other colors. *Not recognized. Flexicon Nylon Conduit Fittings Straight-Thru, PG Hub For Flexible, Corrugated Nylon Conduit/Tubing • For use with Flexicon corrugated conduit/tubing. See pages 1-15 and 1-16. • Suitable for use with both fine and/or coarse pitch conduit/tubing. • Unitary design and assembled shipment allows fast fit. • All nylon construction resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL certification or testing. • No threading of the conduit/tubing is required to install. • Locknuts not included, refer to page 1-12 for Nylon Locknuts. • Suitable for use by all original equipment manufacturers. • Protection class IP 66 per EN 60529 including high pressure water jet from any angle. • Vibration and tamper resistant, but easily removed with a screwdriver. • Refer to page 1-27 for PG thread specifications. Assembly instructions: Removal instructions: Quick Specs 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com

Open the catalog to page 1
