Flexicon Nylon Conduit Fittings Straight-Thru, Metric Hub
1Pages

{{requestButtons}}

Catalog excerpts

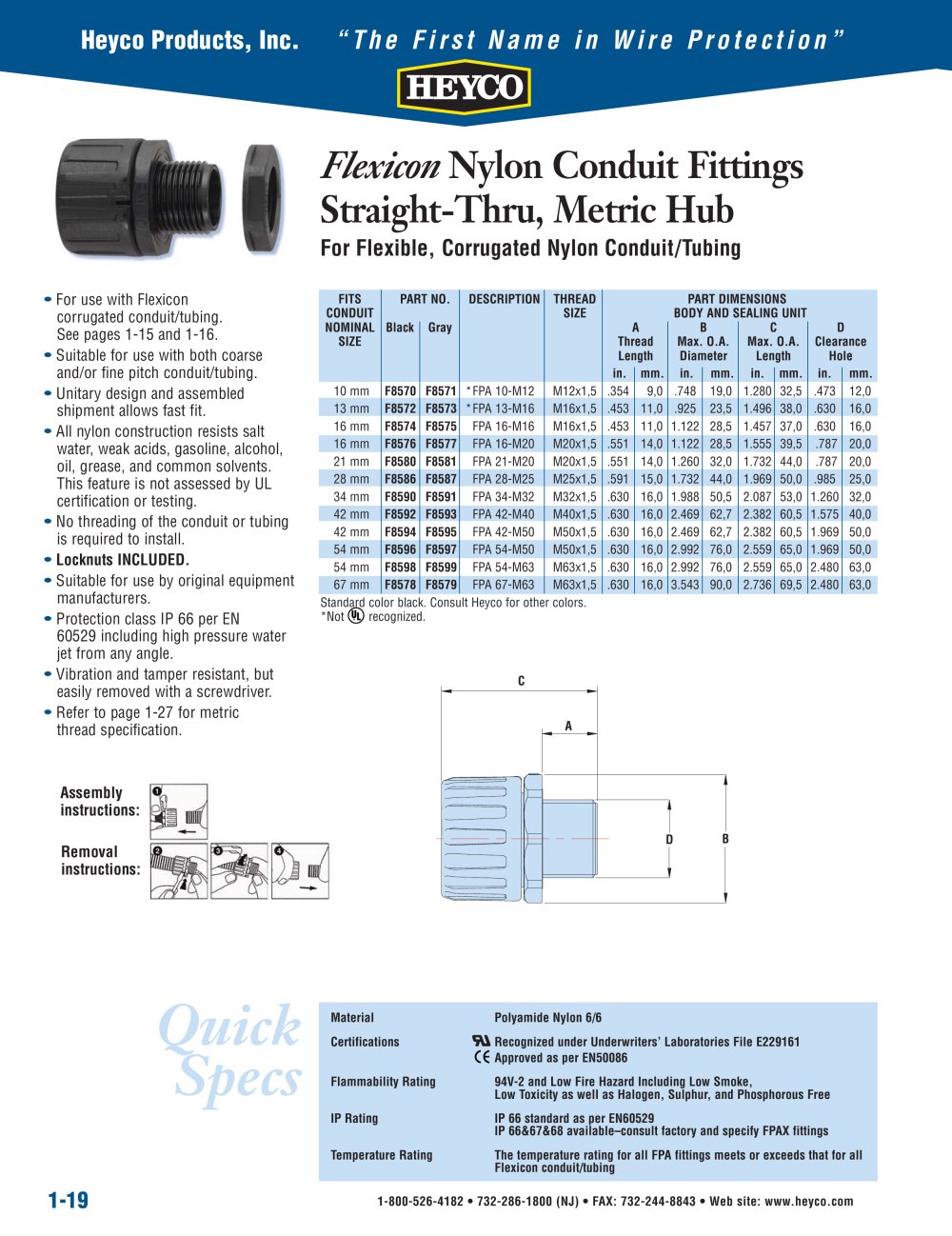

Flexicon Nylon Conduit Fittings Straight-Thru, Metric Hub - 1

1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-19 Quick Specs Flexicon Nylon Conduit Fittings Straight-Thru, Metric Hub For Flexible, Corrugated Nylon Conduit/Tubing • For use with Flexicon corrugated conduit/tubing. See pages 1-15 and 1-16. • Suitable for use with both coarse and/or fine pitch conduit/tubing. • Unitary design and assembled shipment allows fast fit. • All nylon construction resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL certification or testing. • No threading of the conduit or tubing is required to install. • Locknuts INCLUDED. • Suitable for use by original equipment manufacturers. • Protection class IP 66 per EN 60529 including high pressure water jet from any angle. • Vibration and tamper resistant, but easily removed with a screwdriver. • Refer to page 1-27 for metric thread specification. D C B A FITS PART NO. DESCRIPTION THREAD PART DIMENSIONS CONDUIT SIZE BODY AND SEALING UNIT NOMINAL Black Gray A B C D SIZE Thread Max. O.A. Max. O.A. Clearance Length Diameter Length Hole in. mm. in. mm. in. mm. in. mm. 10 mm F8570 F8571 *FPA 10-M12 M12x1,5 .354 9,0 .748 19,0 1.280 32,5 .473 12,0 13 mm F8572 F8573 *FPA 13-M16 M16x1,5 .453 11,0 .925 23,5 1.496 38,0 .630 16,0 16 mm F8574 F8575 FPA 16-M16 M16x1,5 .453 11,0 1.122 28,5 1.457 37,0 .630 16,0 16 mm F8576 F8577 FPA 16-M20 M20x1,5 .551 14,0 1.122 28,5 1.555 39,5 .787 20,0 21 mm F8580 F8581 FPA 21-M20 M20x1,5 .551 14,0 1.260 32,0 1.732 44,0 .787 20,0 28 mm F8586 F8587 FPA 28-M25 M25x1,5 .591 15,0 1.732 44,0 1.969 50,0 .985 25,0 34 mm F8590 F8591 FPA 34-M32 M32x1,5 .630 16,0 1.988 50,5 2.087 53,0 1.260 32,0 42 mm F8592 F8593 FPA 42-M40 M40x1,5 .630 16,0 2.469 62,7 2.382 60,5 1.575 40,0 42 mm F8594 F8595 FPA 42-M50 M50x1,5 .630 16,0 2.469 62,7 2.382 60,5 1.969 50,0 54 mm F8596 F8597 FPA 54-M50 M50x1,5 .630 16,0 2.992 76,0 2.559 65,0 1.969 50,0 54 mm F8598 F8599 FPA 54-M63 M63x1,5 .630 16,0 2.992 76,0 2.559 65,0 2.480 63,0 67 mm F8578 F8579 FPA 67-M63 M63x1,5 .630 16,0 3.543 90,0 2.736 69,5 2.480 63,0 Standard color black. Consult Heyco for other colors. *Not recognized. Material Polyamide Nylon 6/6 Certifications Recognized under Underwriters’ Laboratories File E229161 Approved as per EN50086 Flammability Rating 94V-2 and Low Fire Hazard Including Low Smoke, Low Toxicity as well as Halogen, Sulphur, and Phosphorous Free IP Rating IP 66 standard as per EN60529 IP 66&67&68 available–consult factory and specify FPAX fittings Temperature Rating The temperature rating for all FPA fittings meets or exceeds that for all Flexicon conduit/tubing Assembly instructions: Removal instructions:
